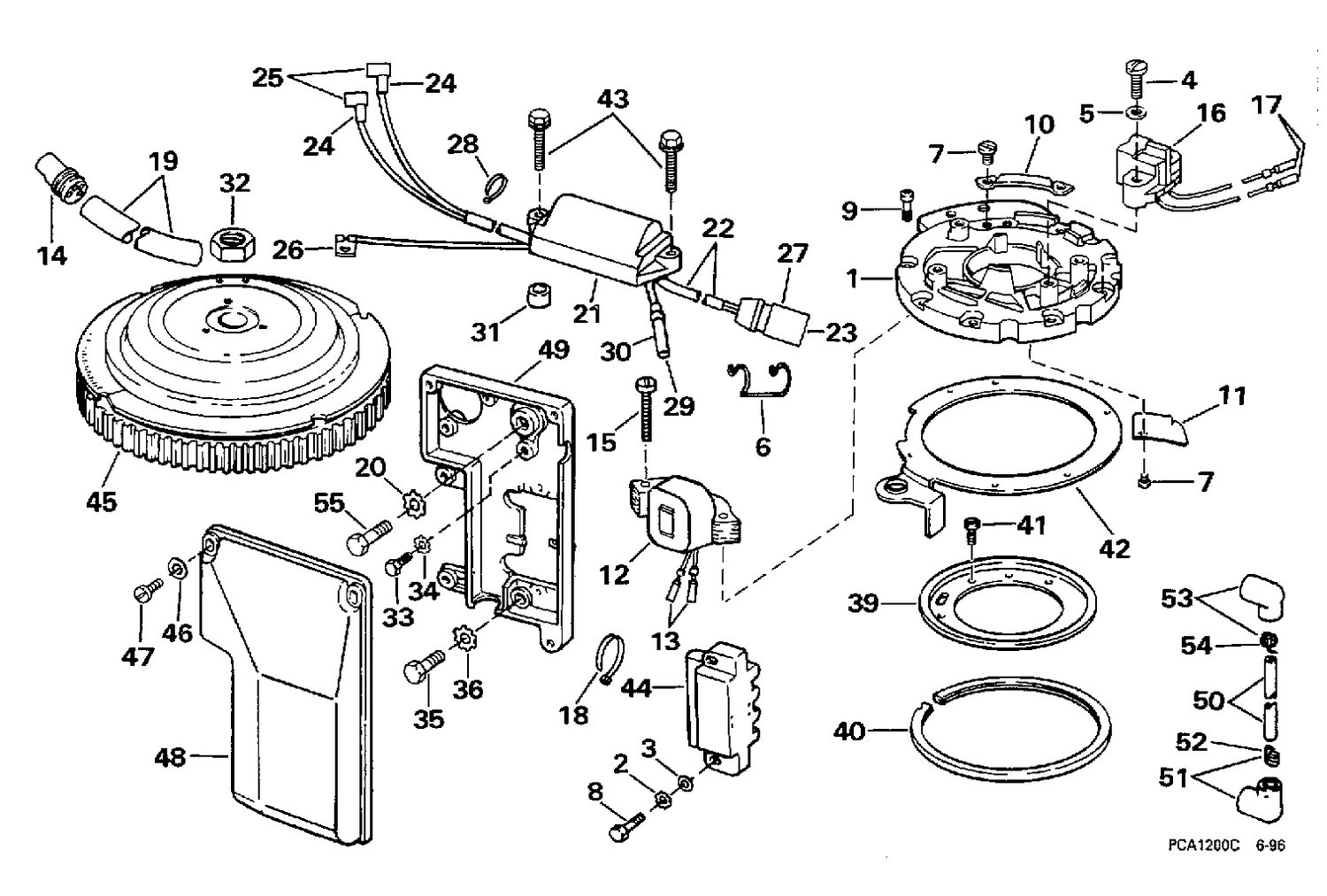

| Ref | Part Number | Description |
|---|
| 1 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 4 |
0319682 |
VIS, capteur vers plaque |
| 6 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 7 |
0303212 |
VIS, collier & capot |
| 9 |
0511460 |
VIS, dispositif de retenue |
| 10 |
0511458 |
COLLIER, fils |
| 11 |
0511459 |
CACHE, fils |
| 12 |
5000611 |
CHARGE COIL & LAM. ASSY. This part replaces 0584504. |
| 15 |
0337522 |
VIS, ensemble bobine |
| 16 |
0583387 |
SENSOR ASSEMBLY |
| 18 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 19 |
0512765 |
BRACKET |
| 21 |
5001344 |
MODULE, Ignition This part replaces 0584908. |
| 31 |
0323144 |
SPACER |
| 32 |
0326111 |
NUT |
| 35 |
0335020 |
SCREW, Bracket to block |
| 39 |
0332063 |
PLATE, Support |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 42 |
0332790 |
RETAINER |
| 43 |
0335220 |
SCREW, Bracket |
| 44 |
0583740 |
COIL Assy |
| 45 |
0584261 |
FLYWHEEL Assy |
| 48 |
0333757 |
COVER |
| 49 |
0337924 |
BRACKET, Electrical |
| 50 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
