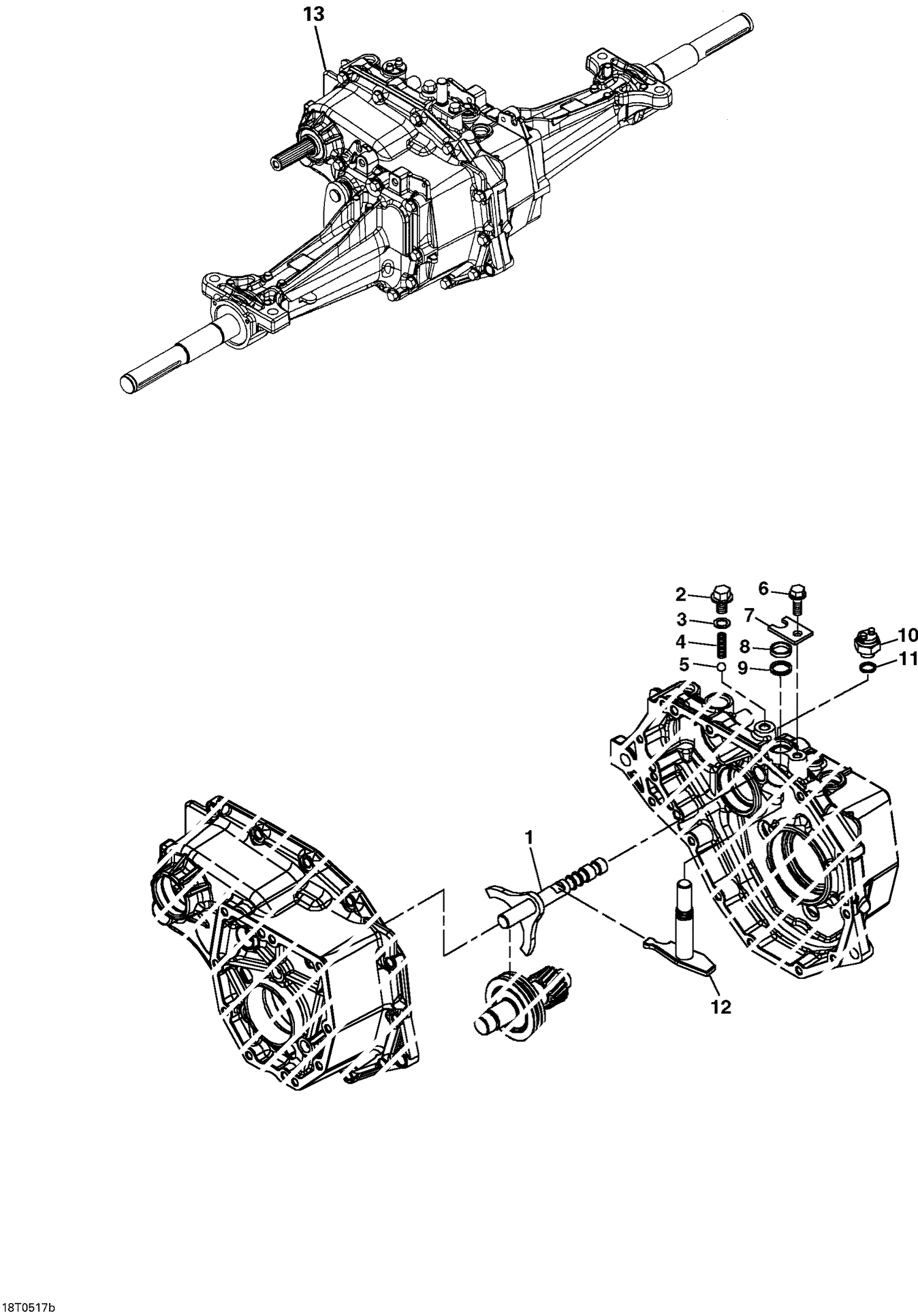

05- Transmission, Transaxle Range Shift
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DAM881343 | Fork Shaft |
| 2 | D19M7783 | Hex. Flange Screw M10X16 |
| 3 | DCH10555 | Gasket |
| 4 | DCH11208 | Spring |
| 5 | DR26552 | Ball |
| 6 | D19M7867 | Hex. Flange Bolt M8 X 25 |
| 7 | DM805762 | Keep Plate |
| 8 | DM808532 | Collar A |
| 9 | DCH10570 | Packing |
| 10 | DAM37643 | Neutral Switch |
| 11 | DM800633 | Packing |
| 12 | DAM881342 | Shift Comp Arm |
