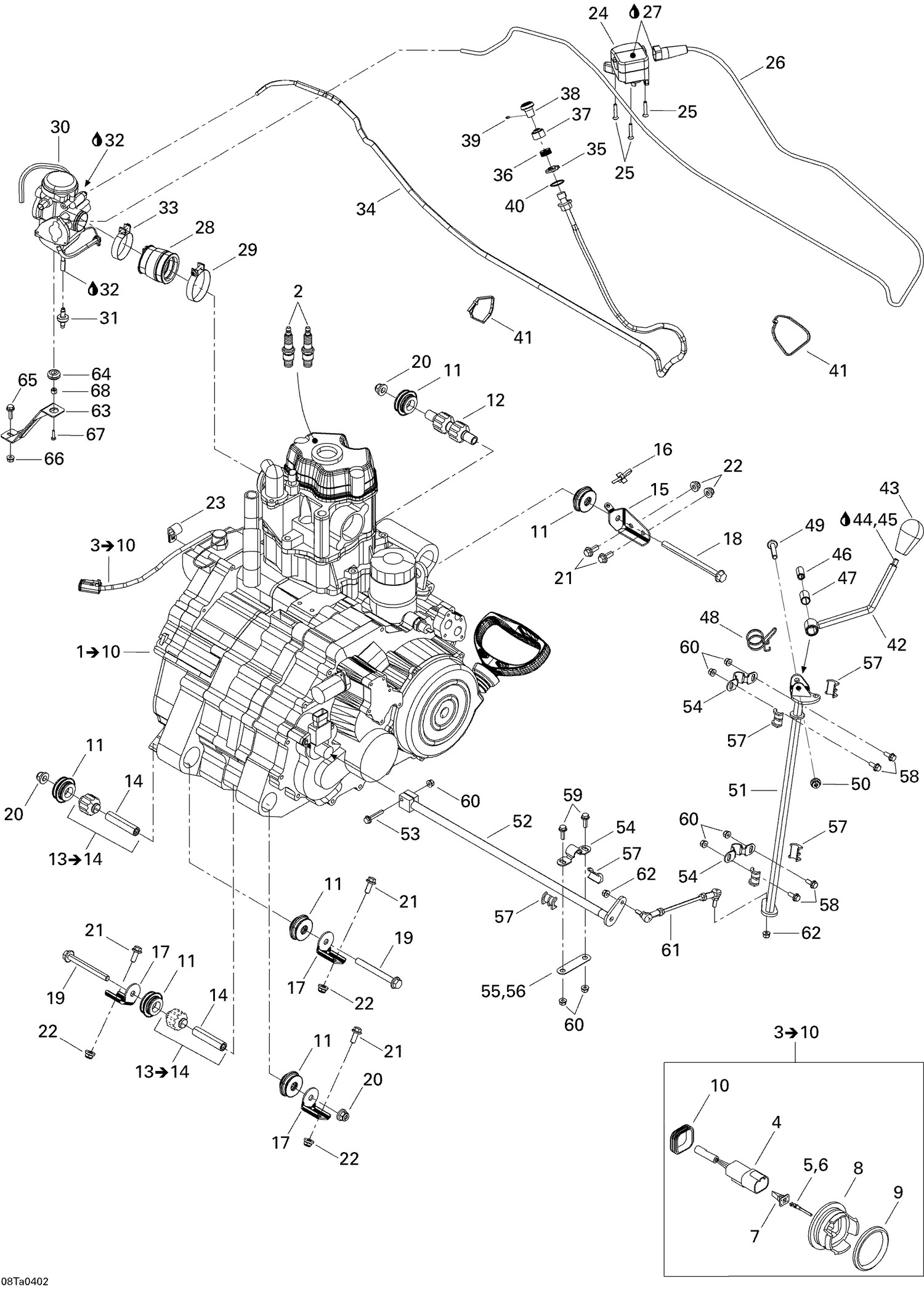

01- Engine Support
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 707000008 | Spark Plug NGK DR8EA |
| 4 | 710001539 | Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 5 | 278000631 | Male Terminal |
| 6 | 515175823 | Male Terminal |
| 7 | 278000735 | Female Lock, 6 Circuits |
| 8 | 270000138 | Adaptor |
| 9 | 293300033 | Gasket |
| 10 | 293200055` | Gasket |
| 11 | 707000094 | Anti-Vibration Mount |
| 12 | 707000019 | ENGINE SUPPORT BUSHING - Call your local BRP dealership |
| 14 | 707000004 | RH LOWER BUSHING - Call your local BRP dealership |
| 15 | 707000082 | Front Engine Bracket, Black |
| 16 | 293750009 | Tie-Rap 173 mm |
| 17 | 705200197 | Engine Bracket |
| 18 | 230604044 | Hex. Flange Screw M10 X 140 |
| 19 | 207609544 | HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership |
| 20 | 233201414 | Hex. Flange Elastic Nut M10 |
| 21 | 207682044 | Hex. Flange Screw M8 X 20 |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 705600232 | Hose Retainer 13 mm |
| 24 | 707000351 | Throttle Handle |
| 25 | 205052588 | Socket Head Screw M5 X 25 |
| 26 | 707000313 | THROTTLE CABLE - Call your local BRP dealership |
| 27 | 293600041 | CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 28 | 707000247 | CARBURATOR ADAPTOR - Call your local BRP dealership |
| 29 | 293650157 | Gemi Clamp |
| 30 | 707000363 | Carburator |
| 31 | 275500398 | Check Valve |
| 32 | 413708300 | Glue Tube, Loctite 454, 20 G This part replaces 293800071. |
| 33 | 293650156 | Gemi Clamp |
| 34 | 707000357 | CHOKE CABLE - Call your local BRP dealership This part replaces 707000264. |
| 35 | 707000067 | D SHAPE WASHER - Call your local BRP dealership |
| 36 | 707000087 | HOLDER CAP - Call your local BRP dealership |
| 37 | 707000088 | Rubber Cap |
| 38 | 707000089 | BUTTON - Call your local BRP dealership |
| 39 | 250000108 | PHILLIPS SCREW M3 X 5 - Call your local BRP dealership |
| 40 | 293300075 | O-RING - Call your local BRP dealership |
| 41 | 414115200 | Tie-Rap 180 mm |
| 42 | 707000010 | LEVER ASS'Y - Call your local BRP dealership |
| 43 | 705500022 | LEVER BUTTON - Call your local BRP dealership |
| 44 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 45 | 293800060 | Loctite 243, 10 ml |
| 46 | 705500150 | BUSHING - Call your local BRP dealership |
| 47 | 705500193 | Adjuster Bushing |
| 48 | 705500024 | LEVER SPRING - Call your local BRP dealership |
| 49 | 207685044 | Hex. Flange Screw M8 X 50 |
| 50 | 233281414 | Hex. Flange Elastic Nut M8 |
| 51 | 705500358 | Upper Tube, Black |
| 52 | 705500135 | Lower Tube |
| 53 | 207663544 | Hex. Flange Screw M6 X 35 |
| 54 | 705500041 | RETAINER CLAMP - Call your local BRP dealership |
| 57 | 705500033 | Half Ring |
| 58 | 207661644 | Hex. Flange Screw M6 X 16 |
| 59 | 207662044 | Hex. Flange Screw M6 X 20 |
| 60 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 61 | 707000068 | Tie Rod Ass'y |
| 62 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 63 | 707200159 | Carburator Support |
| 64 | 709000582 | Grommet This part replaces 293720053. |
| 65 | 207662044 | Hex. Flange Screw M6 X 20 |
| 66 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 67 | 207341644 | Hex. Screw M4 X 16, Scotch Grip |
