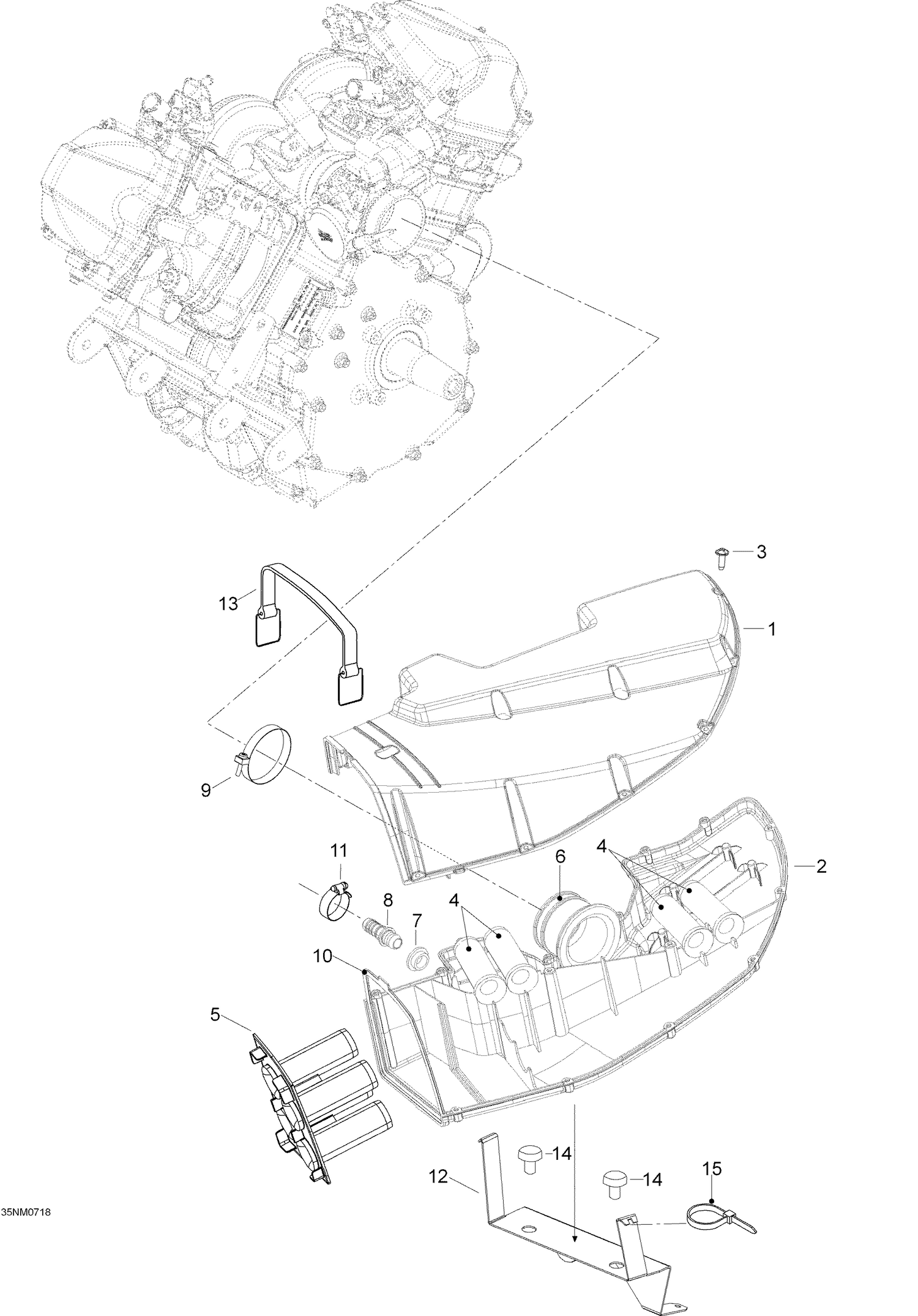

| Ref | Part Number | Description |
|---|
| 1 |
605153098 |
AIR INTAKE COVER BOX - Call your local BRP dealership |
| 2 |
605153099 |
AIR INTAKE BOTTOM BOX - Call your local BRP dealership |
| 3 |
293700048 |
Screw Plastofast MP 6 X 16 PZ This part replaces 40905. |
| 4 |
5444445 |
INLET TUBE - Call your local BRP dealership |
| 5 |
605253649 |
VENTURY TUBE SET - Call your local BRP dealership |
| 6 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 7 |
570023000 |
Grommet |
| 8 |
605453846 |
CONNECTOR - Call your local BRP dealership |
| 9 |
508000382 |
GEMI CLAMP - Call your local BRP dealership |
| 10 |
605353517 |
AIR FILTER - Call your local BRP dealership |
| 11 |
508000382 |
GEMI CLAMP - Call your local BRP dealership |
| 12 |
605353774 |
INTAKE SILENCER SUPPORT - Call your local BRP dealership |
| 13 |
605356180 |
Battery strap This part replaces 515175955. |
| 14 |
570044700 |
Rubber stopper |
