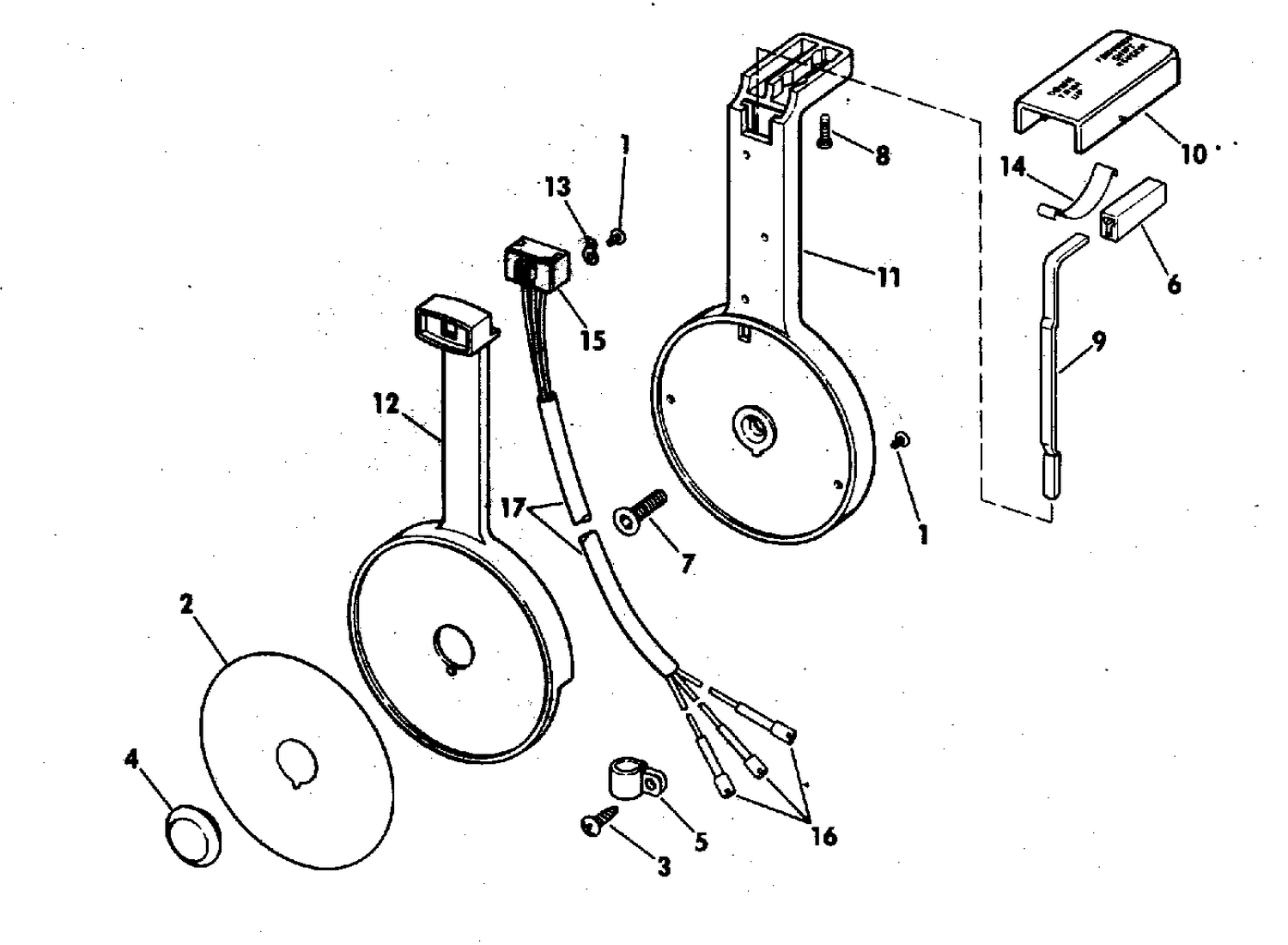

TILT AND TRIM LEVER ASSEMBLY SINGLE ENGINE 55 - 235 HP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0207030 | APPLIQUE |
| 2 | 0320313 | APPLIQUE |
| 4 | 0316074 | BOUCHON, couvercle de volant-moteur |
| 6 | 0318271 | KNOB, Lever reserve lock |
| 7 | 0318293 | CLAMP, Instrument cable |
| 9 | 0319472 | LEVER, Reverse lock |
| 10 | 0322386 | KNOB, Tilt & trim lever, evinrude |
| 10 | 0323291 | KNOB, Lever |
| 11 | 0322387 | LEVER |
| 12 | 0322388 | COVER, Lever |
| 14 | 0322390 | SPRING, Reverse lock |
| 15 | 0388333 | SWITCH & LEAD ASSY |
| 16 | 0511637 | TERMINAL |
| 0281072 | 0281072 | TILT & TRIM LEVER ASSY, Evinrude |
| 0388334 | 0388334 | TILT & TRIM LEVER ASSY, Johnson |
