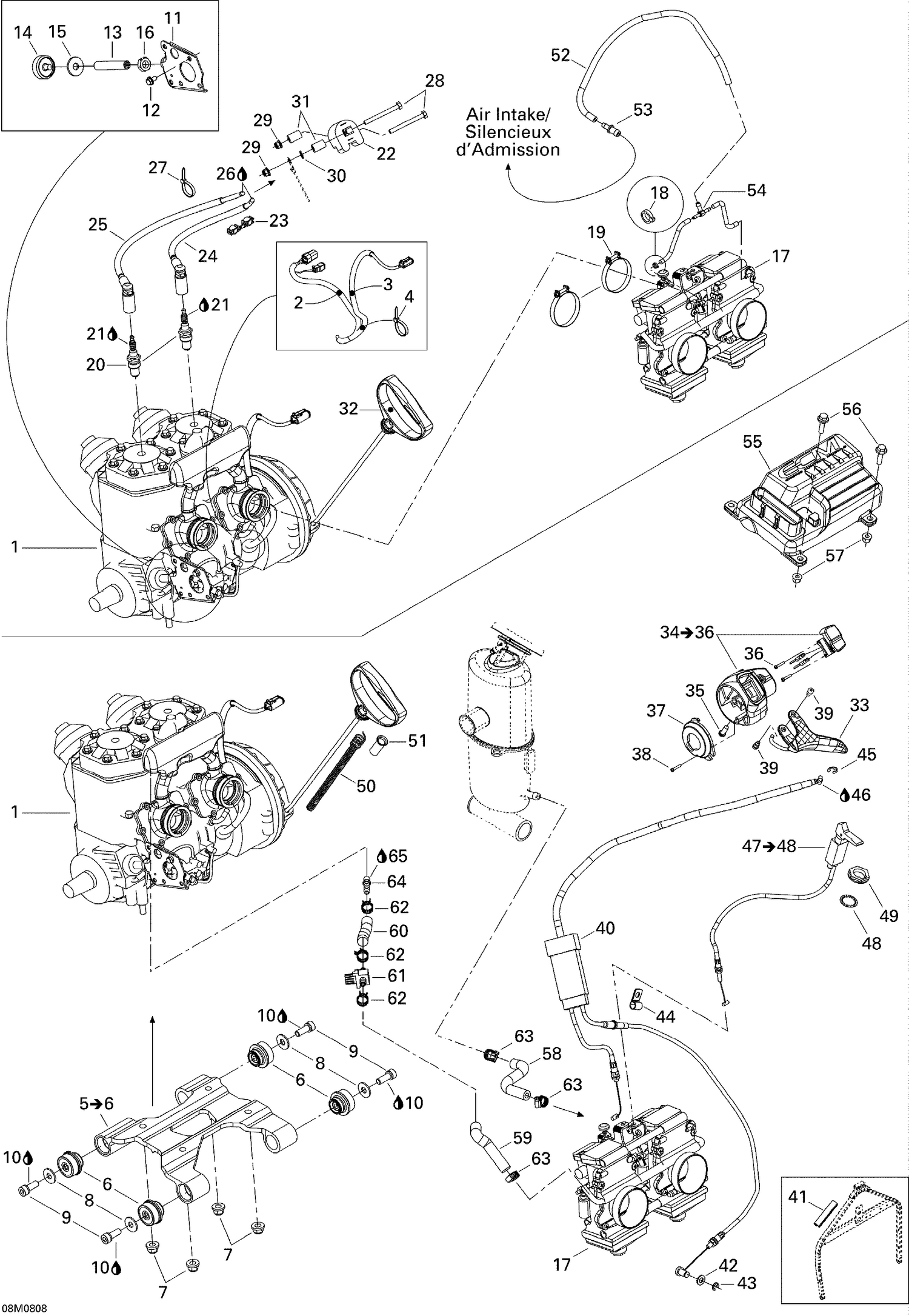

01- Engine
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400509779 | Engine 593 |
| 2 | 219704400 | Was 409901800 Tubing (13 mm) |
| 3 | 219704407 | Tubing 10 MM 1000MM Long |
| 4 | 293750002 | Tie Wrap 142 mm |
| 6 | 512059691 | Rubber Mount |
| 7 | 233201414 | Hex. Flange Elastic Nut M10 |
| 8 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 9 | 235202544 | TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership |
| 10 | 413703400 | Sealant LOCTITE 222MS - Call your local BRP dealership |
| 11 | 512059840 | PLATE - Call your local BRP dealership |
| 12 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 13 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 14 | 512059610 | STOPPER - Call your local BRP dealership |
| 15 | 512059057 | WASHER - Call your local BRP dealership |
| 16 | 232170411 | Hex. Jam Nut M14 |
| 17 | 403138788 | Carburetor Kit TM40-B352Z1 |
| 18 | 293750001 | Tie Wrap 94 mm |
| 19 | 512059835 | Gemi Clamp |
| 20 | 512060354 | Spark Plug NGK BR10ECS |
| 21 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 22 | 512059968 | Ignition Coil |
| 23 | 410914600 | Plastic Clip, Spark Plug Wire |
| 24 | 512059695 | CABLE ASSY, 300 MM - Call your local BRP dealership |
| 25 | 512059696 | Cable Ass’y, 375 mm |
| 26 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 27 | 414115200 | Tie-Rap 180 mm |
| 28 | 207066044 | Hex. Screw M6 X 60 |
| 29 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 30 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 31 | 517203200 | Spacer |
| 32 | 572084400 | Starter Grip |
| 33 | 512060484 | Throttle Handle Ass'y This part replaces 512060302. |
| 35 | 250000036 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 36 | 250000098 | PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 37 | 512059698 | COVER - Call your local BRP dealership |
| 38 | 250000265 | TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 39 | 732601143 | Flange Screw |
| 40 | 512060084 | THROTTLE CABLE - Call your local BRP dealership |
| 41 | 512059750 | PROTECTOR - Call your local BRP dealership |
| 42 | 234081100 | Flat Washer 8 mm, Nylon |
| 43 | 414753500 | Circlip |
| 44 | 293750042 | TIE CLAMP - Call your local BRP dealership |
| 45 | 414274500 | Circlip |
| 46 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 48 | 394103300 | Lock Washer, Interior Teeth |
| 49 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 50 | 512059535 | ROPE GUIDE - Call your local BRP dealership |
| 51 | 512059536 | TUBE - Call your local BRP dealership |
| 52 | 219704410 | Polyurethane Hose 10000Mm Long |
| 53 | 293710035 | Straight Fitting |
| 54 | 572045500 | T-Fitting |
| 55 | 512060383 | CALIBRATED MODULE - Call your local BRP dealership |
| 56 | 207652044 | Hex.Flange Screw M5 X 20 |
| 57 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 58 | 509000171 | FORMED HOSE - Call your local BRP dealership |
| 59 | 219704420 | Was 509000407 Hose 8 mm |
| 60 | 219704420 | Was 509000407 Hose 8 mm |
| 61 | 512059324 | Valve 5/16” |
| 62 | 414655700 | Spring Clamp |
| 63 | 293650170 | Tridon Gear Clamp |
| 64 | 512060196 | Male Connector 1/8"-27 NPT |
