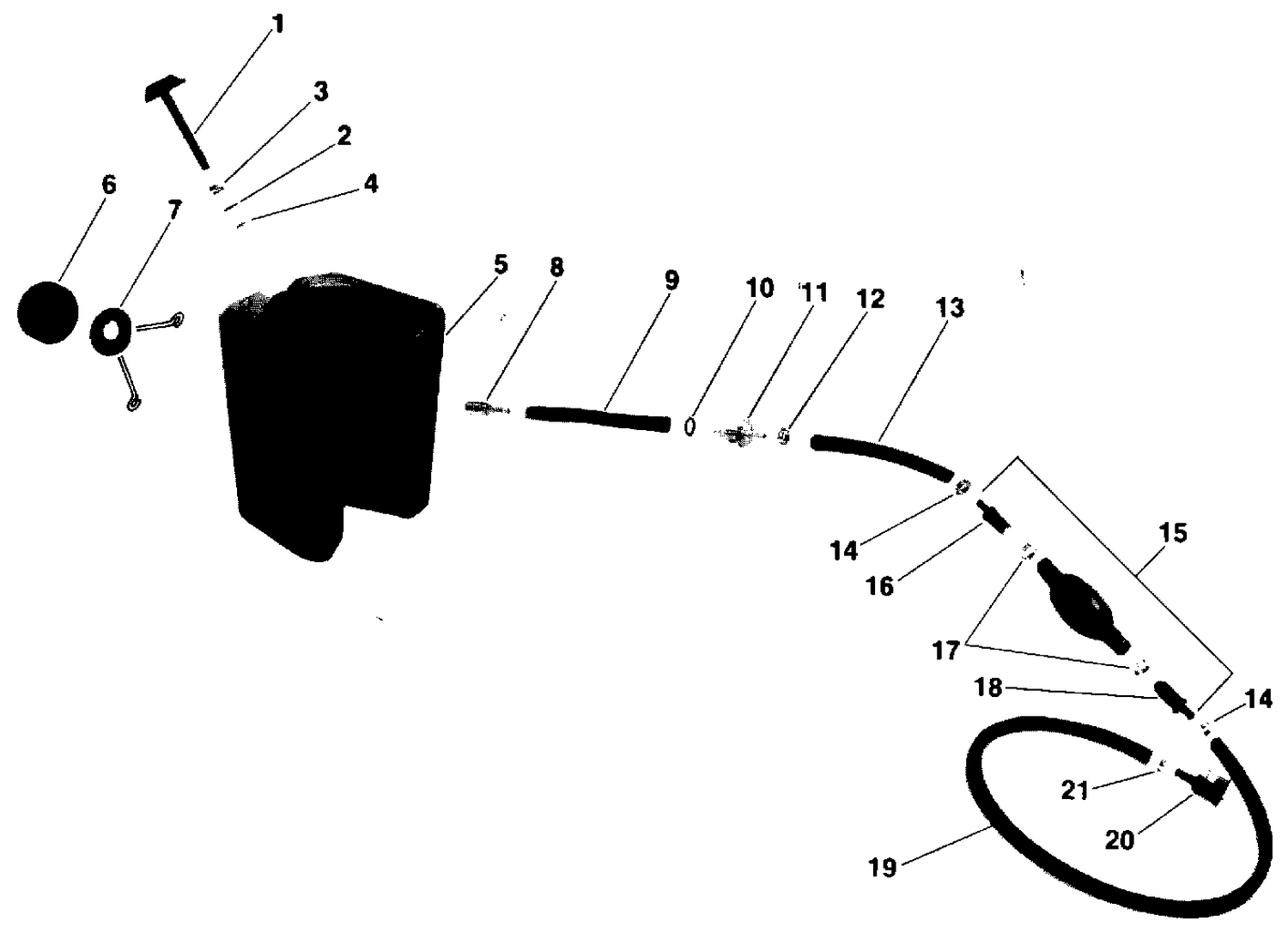

| Ref | Part Number | Description |
|---|
| 1 |
0332027 |
KNOB, Tank to upper retainer |
| 2 |
0332222 |
WEAR WASHER, Mount knob spring |
| 3 |
0332227 |
SPRING, Mounting knob |
| 4 |
0332221 |
RETAINER, Mounting knob |
| 5 |
0396904 |
FUEL TANK ASSEMBLY |
| 6 |
0433867 |
CAP ASSEMBLY This part replaces 0396080. |
| 8 |
0173637 |
FUEL PICKUP |
| 9 |
HOSE, |
Fuel inlet to nipple, 14 in. (356 mm) long |
| 11 |
0327291 |
NIPPLE |
| 13 |
HOSE, |
Fuel tank to primer bulb inlet, 6 in. (152mm) long |
| 19 |
Hose, |
Primer bulb outlet to fuel conn., 36 in. (914mm) long |
| 21 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 0396397 |
0396397 |
FUEL TANK & HOSE ASSEMBLY |
| 0396399 |
0396399 |
HOSE & BULB ASSEMBLY, Fuel |
