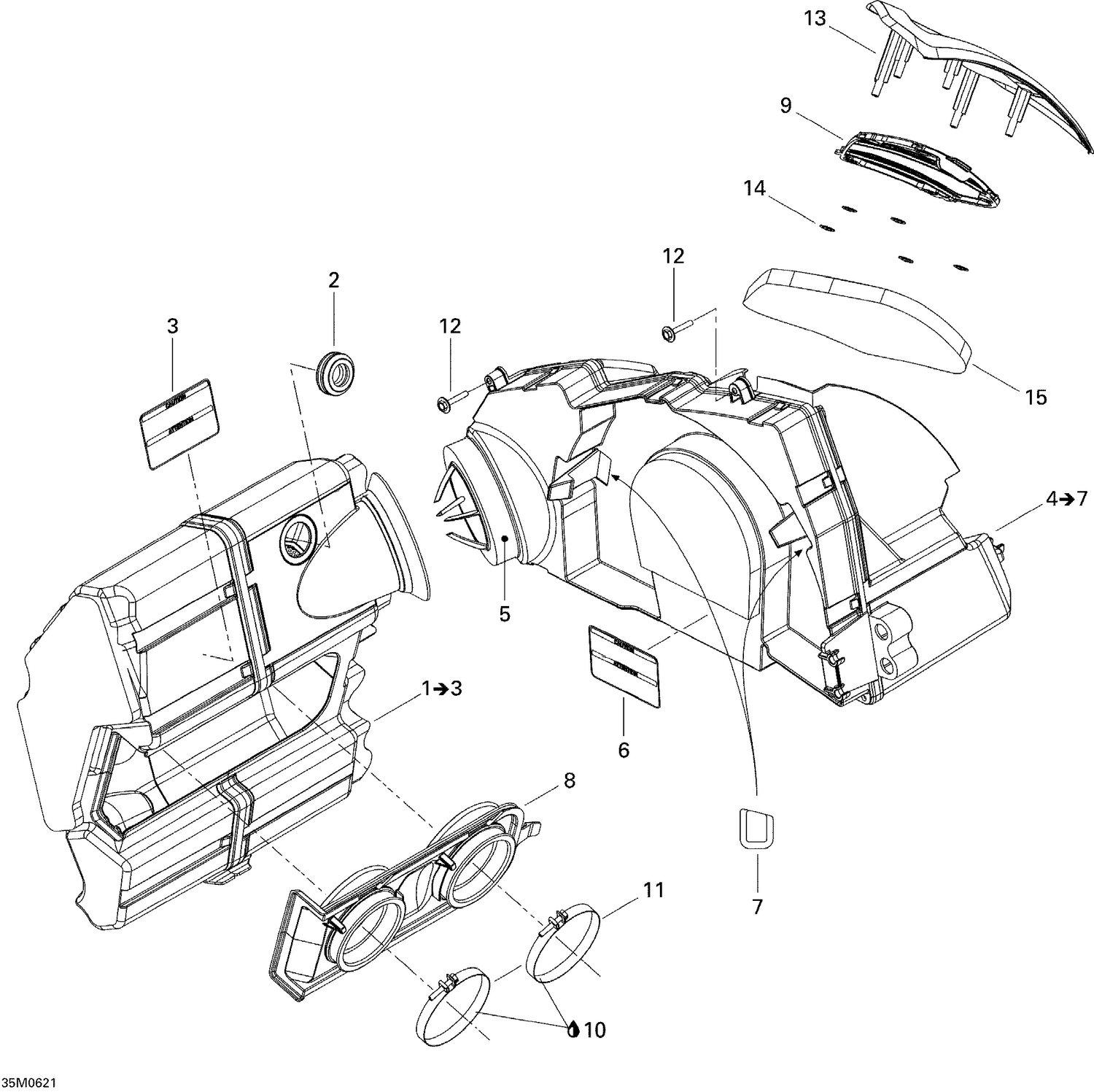

| Ref | Part Number | Description |
|---|
| 2 |
570065500 |
GROMMET - Call your local BRP dealership |
| 3 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 5 |
508000520 |
FOAM - Call your local BRP dealership |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 7 |
516001911 |
LH PROTECTOR DECAL - Call your local BRP dealership |
| 7 |
516006405 |
Protector Decal This part replaces 516001910. |
| 8 |
508000451 |
ADAPTOR PLATE ASS'Y - Call your local BRP dealership |
| 9 |
508000506 |
INTAKE FILTER - Call your local BRP dealership |
| 10 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 11 |
508000346 |
Gemi Clamp |
| 12 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 13 |
508000461 |
Deflector |
| 14 |
732610072 |
Push Nut |
