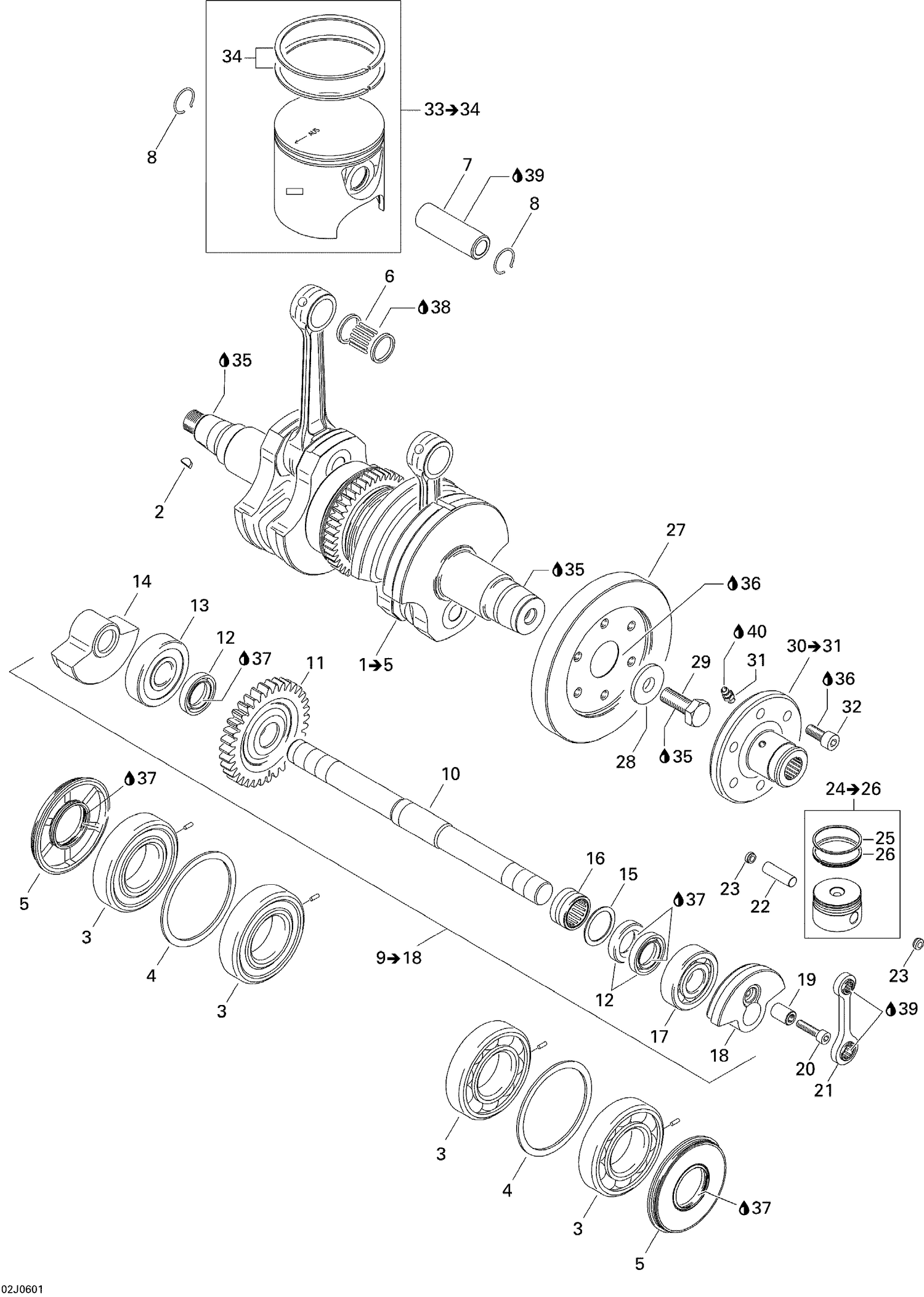

| Ref | Part Number | Description |
|---|
| 2 |
420246055 |
Woodruff Key |
| 3 |
420432271 |
Bearing_Ball - Call your local BRP dealership |
| 4 |
420926190 |
Washer |
| 5 |
420931731 |
OIL SEAL - Call your local BRP dealership |
| 6 |
420832553 |
Bearing_Needle This part replaces 420832552. |
| 7 |
420916398 |
Piston Pin - Call Your Local BRP Dealership |
| 8 |
420845465 |
CIRCLIP - Call your local BRP dealership |
| 10 |
420837382 |
BALANCED SHAFT 947 - Call your local BRP dealership |
| 11 |
420834360 |
Balanced Gear 34 Teeth |
| 12 |
420930267 |
Oil Seal |
| 13 |
420932097 |
BALL BEARING 6304 - Call your local BRP dealership |
| 14 |
420818950 |
Balance Mass 947 |
| 15 |
420927192 |
Washer |
| 16 |
420232555 |
NEEDLE BEARING - Call your local BRP dealership |
| 17 |
420932090 |
BALL BEARING - Call your local BRP dealership |
| 18 |
420818955 |
MASS BALANCE - Call your local BRP dealership |
| 19 |
420921460 |
COMPRESSOR PIN - Call your local BRP dealership |
| 20 |
420640690 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 21 |
420917505 |
CONROD ASS?Y - Call your local BRP dealership |
| 22 |
420916430 |
PISTON PIN 9 X 30 - Call your local BRP dealership |
| 23 |
420847940 |
DISTANCE BUSHING - Call your local BRP dealership |
| 25 |
420215970 |
RECTANGULAR RING - Call your local BRP dealership |
| 26 |
420215960 |
OIL SCRAPER RING - Call your local BRP dealership |
| 27 |
420958083 |
COUPLING - Call your local BRP dealership |
| 28 |
420827782 |
WASHER - Call your local BRP dealership |
| 29 |
420640120 |
HEX. SCREW M12 X 30 - Call your local BRP dealership |
| 31 |
420499113 |
GREASE FITTING - Call your local BRP dealership |
| 32 |
205082060 |
SOCKET SCREW M8 X 20 - Call your local BRP dealership |
| 34 |
420815267 |
RECTANGULAR RING - Call your local BRP dealership |
| 34 |
420815268 |
RECTANGULAR RING, OVERSIZE - Call your local BRP dealership |
| 35 |
293800060 |
Loctite 243, 10 ml |
| 36 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 37 |
413707000 |
Dow Corning 111, 150 g |
| 38 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 39 |
Not |
Available As Spare Part - Engine Oil, Mineral, 10W40 |
