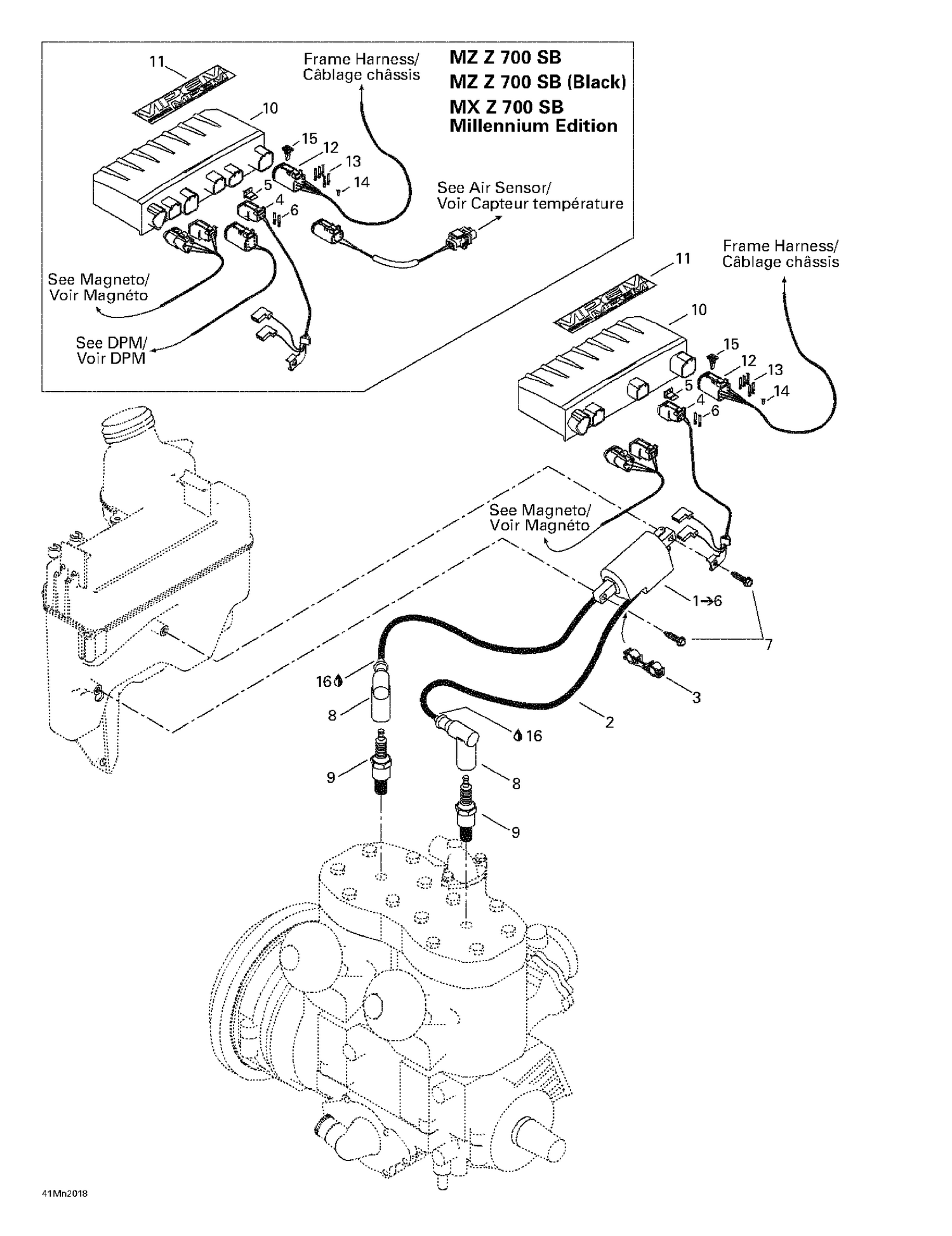

| Ref | Part Number | Description |
|---|
| 2 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 3 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 4 |
409207300 |
Female Connector, 2 Circuits |
| 5 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 6 |
278000632 |
Female Terminal |
| 8 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 9 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 11 |
516000245 |
Electrical Box Decal |
| 12 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 13 |
278000632 |
Female Terminal |
| 14 |
293000052 |
Sealing Cap |
| 15 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
