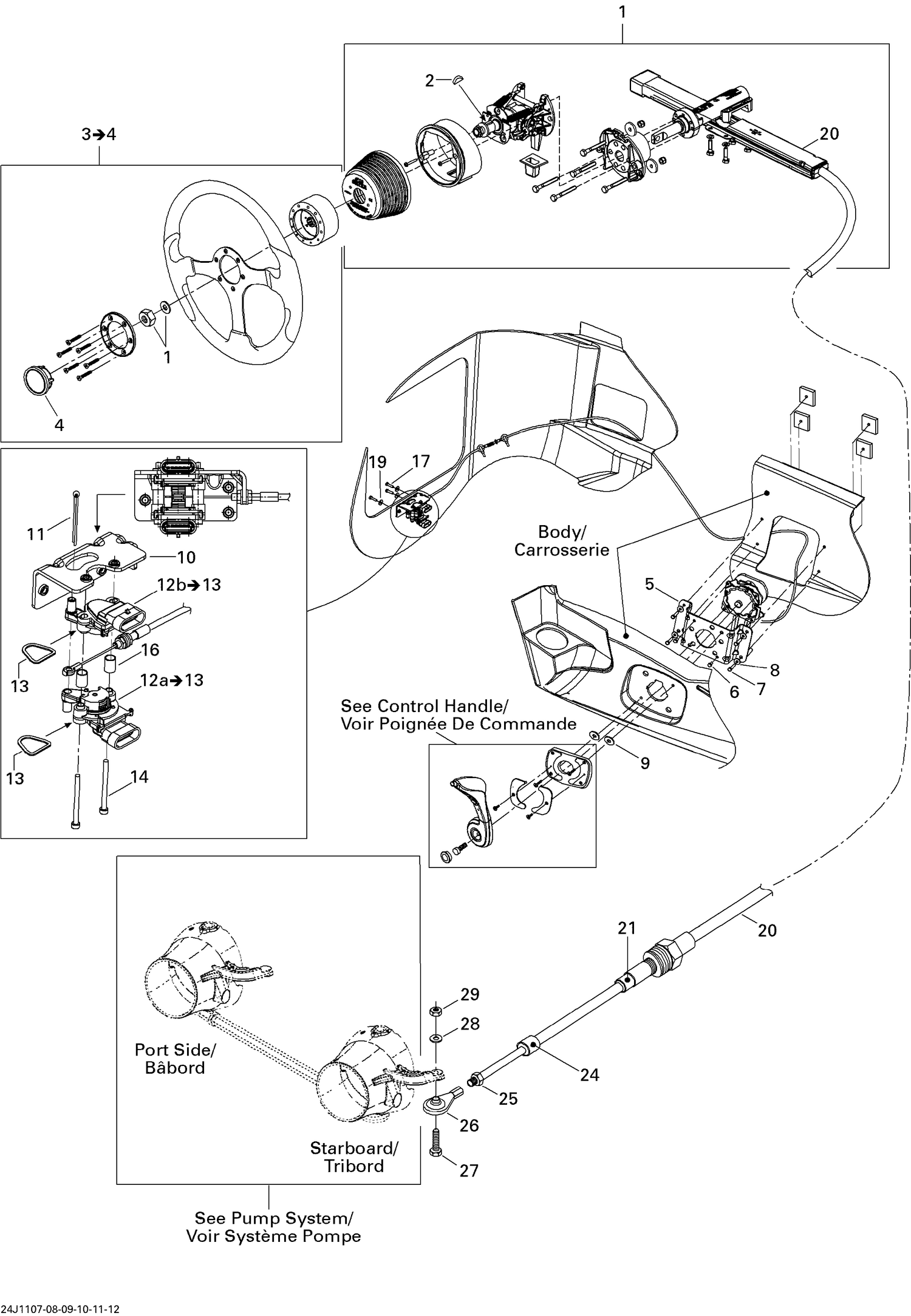

| Ref | Part Number | Description |
|---|
| 1 |
277001690 |
HELM TILT ASS'Y - Call your local BRP dealership |
| 2 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 4 |
204390549 |
CENTER CAP - Call your local BRP dealership |
| 5 |
277001705 |
CONTROL BRACKET - Call your local BRP dealership |
| 6 |
204100137 |
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership |
| 7 |
207163060 |
Hex. Screw M6 X 30 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 10 |
277001694 |
SENSOR BRACKET - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Cotter Pin |
| 13 |
270000544 |
O-Ring |
| 14 |
205455060 |
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership |
| 16 |
278000644 |
Spacer |
| 17 |
207152060 |
Hex. Screw M5 X 20 |
| 19 |
234052600 |
Flat Washer 5 mm, Stainless |
| 20 |
277001867 |
STEERING CABLE - Call your local BRP dealership This part replaces 204390587. |
| 21 |
277000440 |
SEAL SWIVEL - Call your local BRP dealership |
| 24 |
277000441 |
TERMINAL WIPER - Call your local BRP dealership |
| 25 |
277000439 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 26 |
204120074 |
BALL JOINT - Call your local BRP dealership |
| 27 |
207063560 |
Hex. Screw M6 X 35 |
| 28 |
234061600 |
Stainless Flat Washer M6 |
