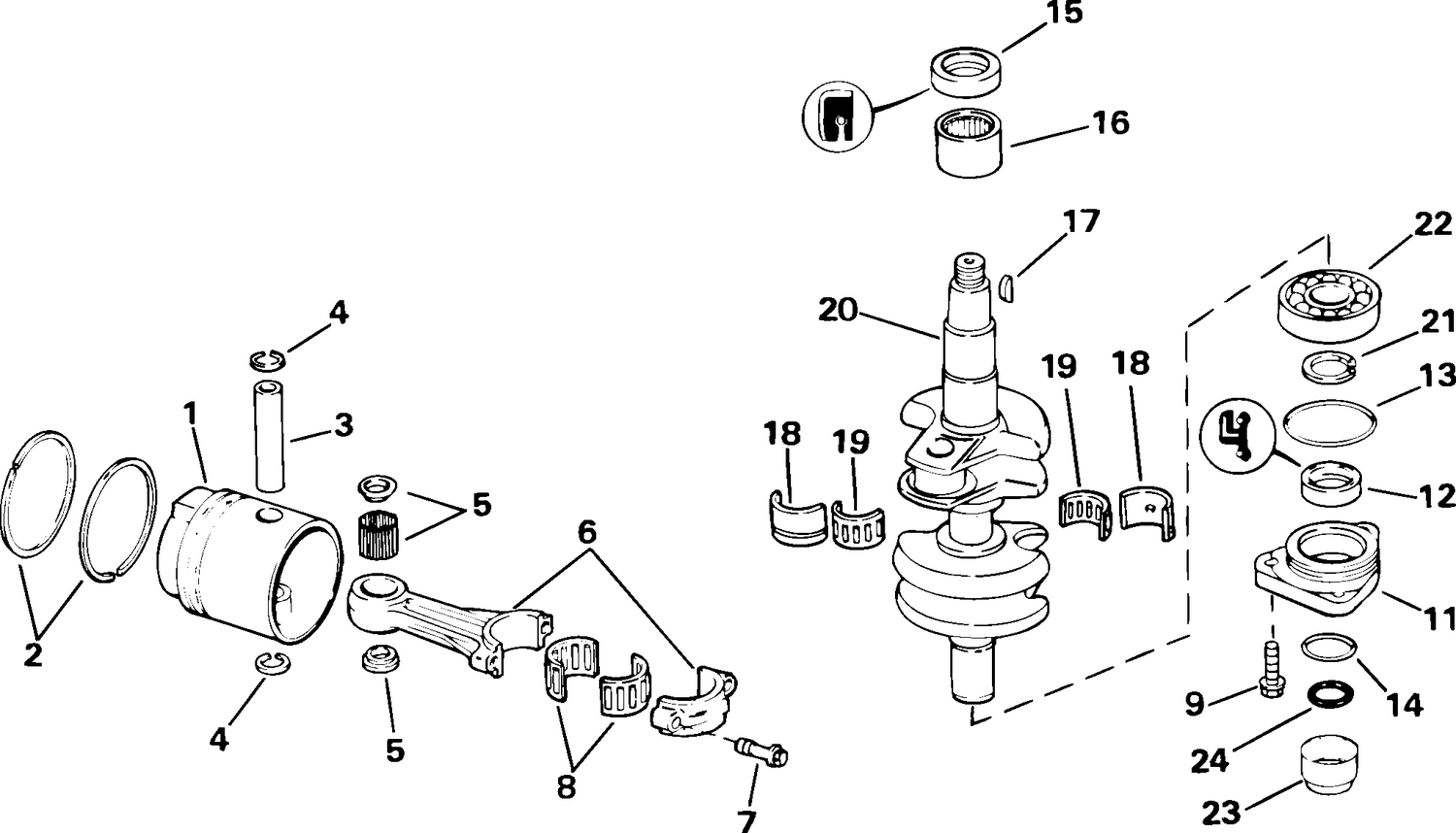

CRANKSHAFT & PISTON
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5006657 | Piston & Ring Kit This part replaces 0392621. |
| 1 | 5006664 | Piston & Ring Kit This part replaces 0396576. |
| 2 | 0396377 | RING SET Standard |
| 3 | 0320954 | WRIST PIN |
| 5 | 0395627 | BEARING & RETAINER |
| 6 | 0433509 | CONNECTING ROD Assy |
| 8 | 0437088 | BEARING Assy |
| 11 | 0435520 | CRANKCASE HEAD & SEAL |
| 16 | 0393896 | BEARING Assy, Needle |
| 18 | 0331451 | BEARING LINER |
| 19 | 0389613 | RETAINER & NEEDLE ASSY., Center bearing |
| 20 | 0435492 | CRANKSHAFT Assy |
