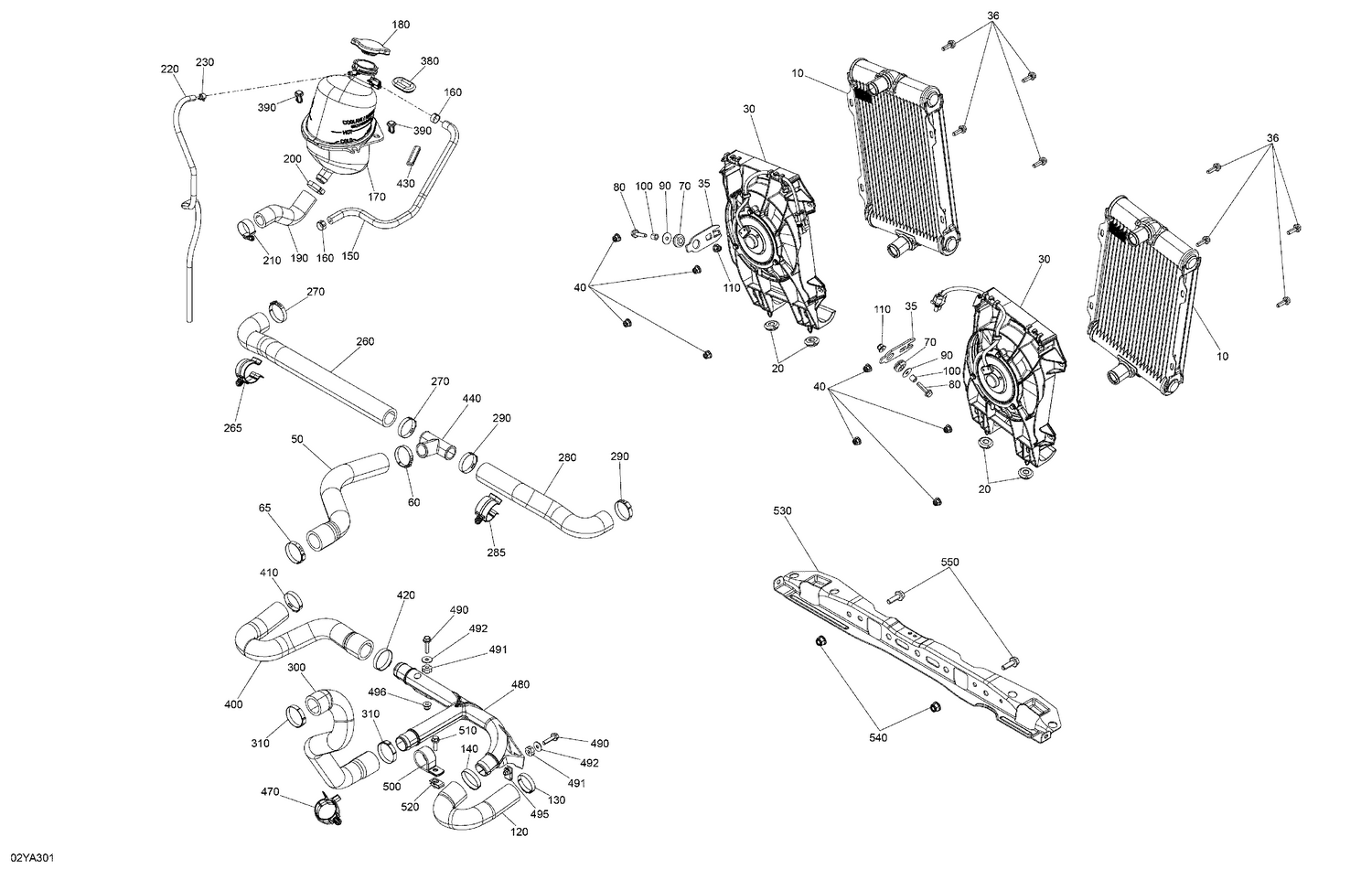

02- Engine - Cooling
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200314 | Radiator |
| 20 | 705003264 | Grommet |
| 30 | 709200555 | Fan Assembly |
| 35 | 709200404 | Support |
| 36 | 207662044 | Hex. Flange Screw M6 X 20 |
| 40 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 709200871 | Upper Formed Water Pump Hose |
| 60 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 65 | 293650199 | Oetiker Gear Clamp |
| 70 | 709000582 | Grommet |
| 80 | 207662544 | Hex. Flange Screw M6 X 25 |
| 90 | 224060201 | Flat Washer |
| 100 | 293900105 | Bushing |
| 110 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 120 | 709200879 | RH Lower Radiator Hose |
| 130 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 140 | 293650199 | Oetiker Gear Clamp |
| 150 | 709200324 | Formed Hose |
| 160 | 293650046 | Oetiker Clamp |
| 170 | 709200749 | Coolant Tank |
| 180 | 509000187 | Pressure Cap |
| 190 | 709200874 | Lower Formed Coolant Tank Hose |
| 200 | 293650165 | Oetiker Gear Clamp |
| 210 | 293650051 | Tridon Gear Clamp |
| 220 | 219704410 | Polyurethane Hose 10000Mm Long |
| 230 | 414554800 | Spring Clamp |
| 260 | 709200880 | LH Upper Radiator Hose |
| 265 | 275500951 | Clip |
| 270 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 280 | 709200881 | RH Upper Radiator Hose |
| 285 | 275500951 | Clip |
| 290 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 300 | 709200877 | Lower Formed Water Pump Hose |
| 310 | 293650199 | Oetiker Gear Clamp |
| 380 | 705003668 | Oblong Grommet |
| 390 | 293150230 | Tuflok Plastic Rivet |
| 400 | 709200882 | LH Lower Radiator Hose |
| 410 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 420 | 293650199 | Oetiker Gear Clamp |
| 430 | 219704354 | Trim 1000Mm Long |
| 440 | 509000219 | T-Fitting |
| 470 | 275500590 | Retainer |
| 480 | 709200468 | Connector |
| 490 | 207562544 | Hex. Flange Screw M6 X 25 |
| 491 | 293830160 | Shock Washer |
| 492 | 234062410 | Flat Washer 6 mm |
| 495 | 250100198 | Panel Nut M6 X 1.0 |
| 496 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 500 | 293750035 | Open Clamp |
| 510 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 520 | 250100198 | Panel Nut M6 X 1.0 |
| 530 | 709200400 | Support |
| 540 | 233281434 | Hex. Flange Elastic Nut M8 |
