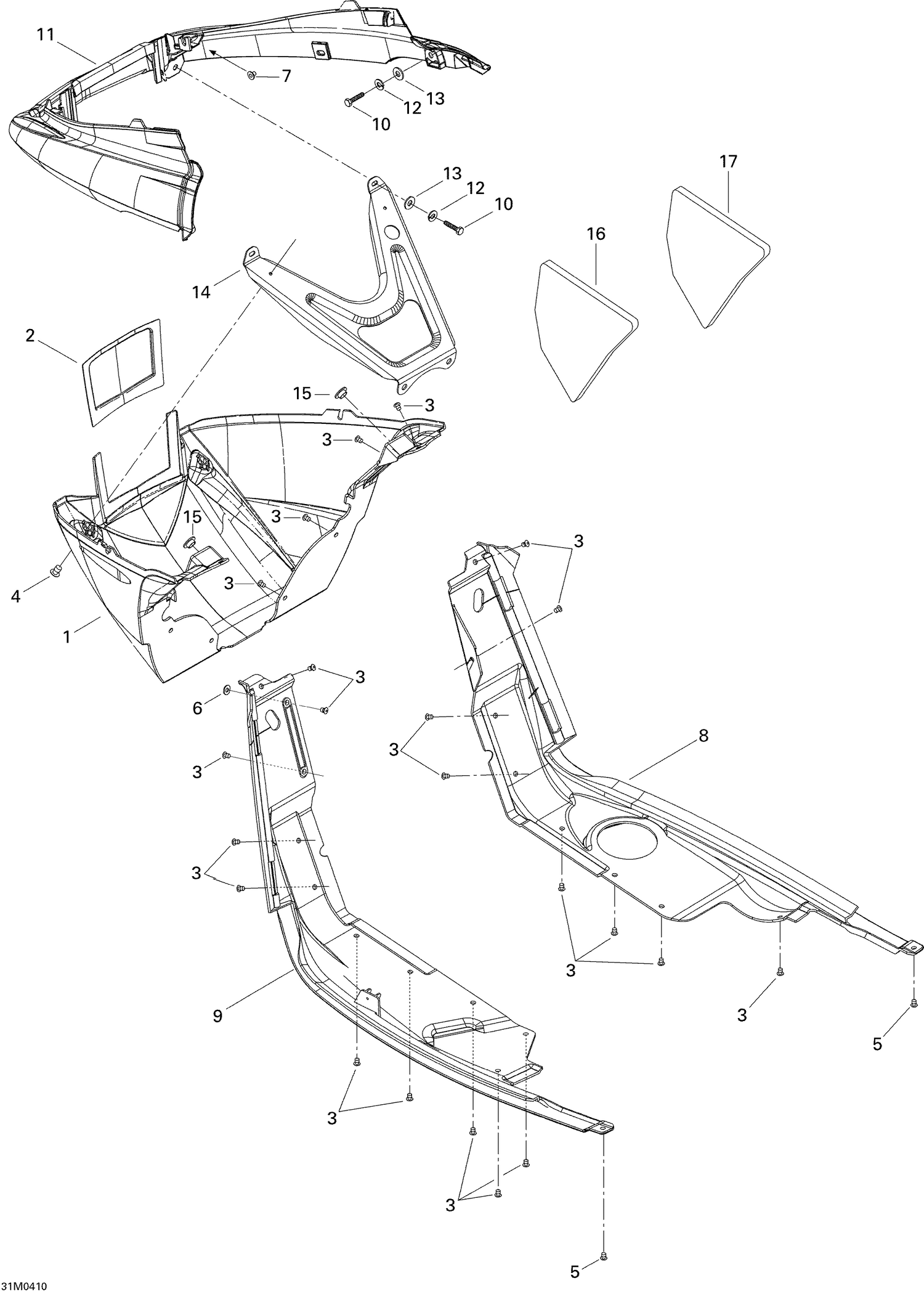

09- Bottom Pan
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006733 | FRONT BOTTOM PAN - Call your local BRP dealership |
| 2 | 502006706 | BOTTOM PAN PLATE - Call your local BRP dealership |
| 3 | 293150104 | Pop Rivet 3/16" |
| 4 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 5 | 293150103 | Pop Rivet 3/16" |
| 6 | 517124300 | Washer |
| 7 | 293100003 | Nut Welded, M6 |
| 8 | 502006729 | RH BOTTOM PAN - Call your local BRP dealership |
| 9 | 502006730 | LH BOTTOM PAN - Call your local BRP dealership |
| 10 | 207161444 | Hex. Screw M6 X 14 |
| 11 | 502006680 | Bumper, Yellow |
| 12 | 234161471 | Lock Washer M6, Black |
| 13 | 224061121 | Flat Washer |
| 14 | 502006772 | Support This part replaces 502006682. |
| 15 | 414916600 | Black, Nylon Cap |
| 16 | 502006722 | LH FOAM - Call your local BRP dealership |
