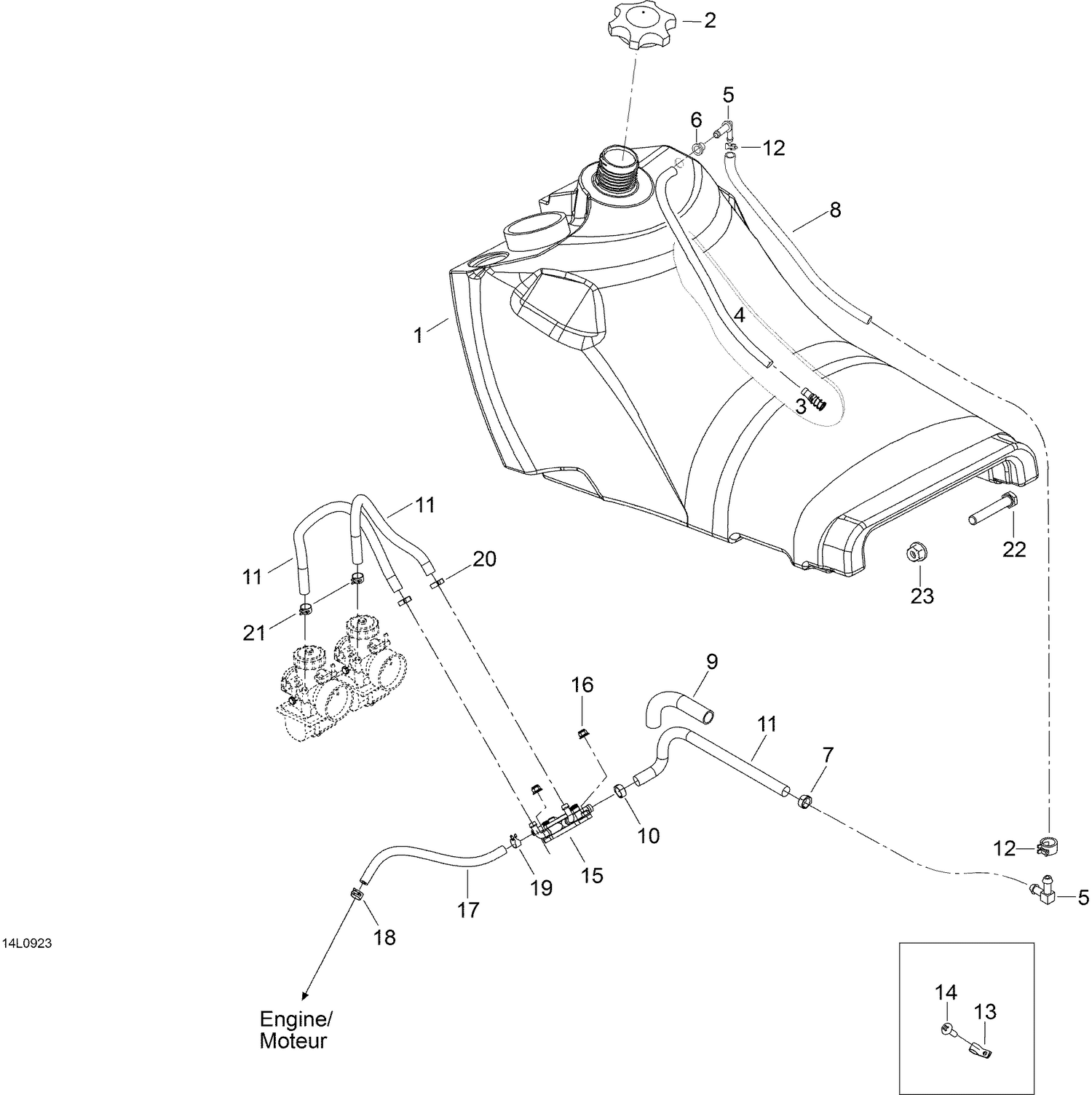

| Ref | Part Number | Description |
|---|
| 1 |
605251348 |
Fuel tank |
| 2 |
709000059 |
FUEL CAP - Call your local BRP dealership |
| 3 |
414872100 |
Fuel filter |
| 4 |
39048 |
Hose |
| 5 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 6 |
280000674 |
Grommet This part replaces 28037. |
| 7 |
605627003 |
Clamp |
| 8 |
513033374 |
Formed Hose This part replaces 513033027. |
| 9 |
27127 |
Tubing |
| 10 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 11 |
513033022 |
HOSE 8 MM, METER - Call your local BRP dealership |
| 12 |
414655700 |
Clamp |
| 13 |
27051 |
Clip |
| 14 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 15 |
403901813 |
Fuel pump |
| 16 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 17 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 18 |
414420700 |
Universal Spring Clamp |
| 19 |
414415200 |
Clamp |
| 20 |
414655700 |
Clamp |
| 21 |
605627005 |
CLAMP MINI ABA 13 - Call your local BRP dealership |
| 22 |
40003 |
Screw M6 x 35 |
