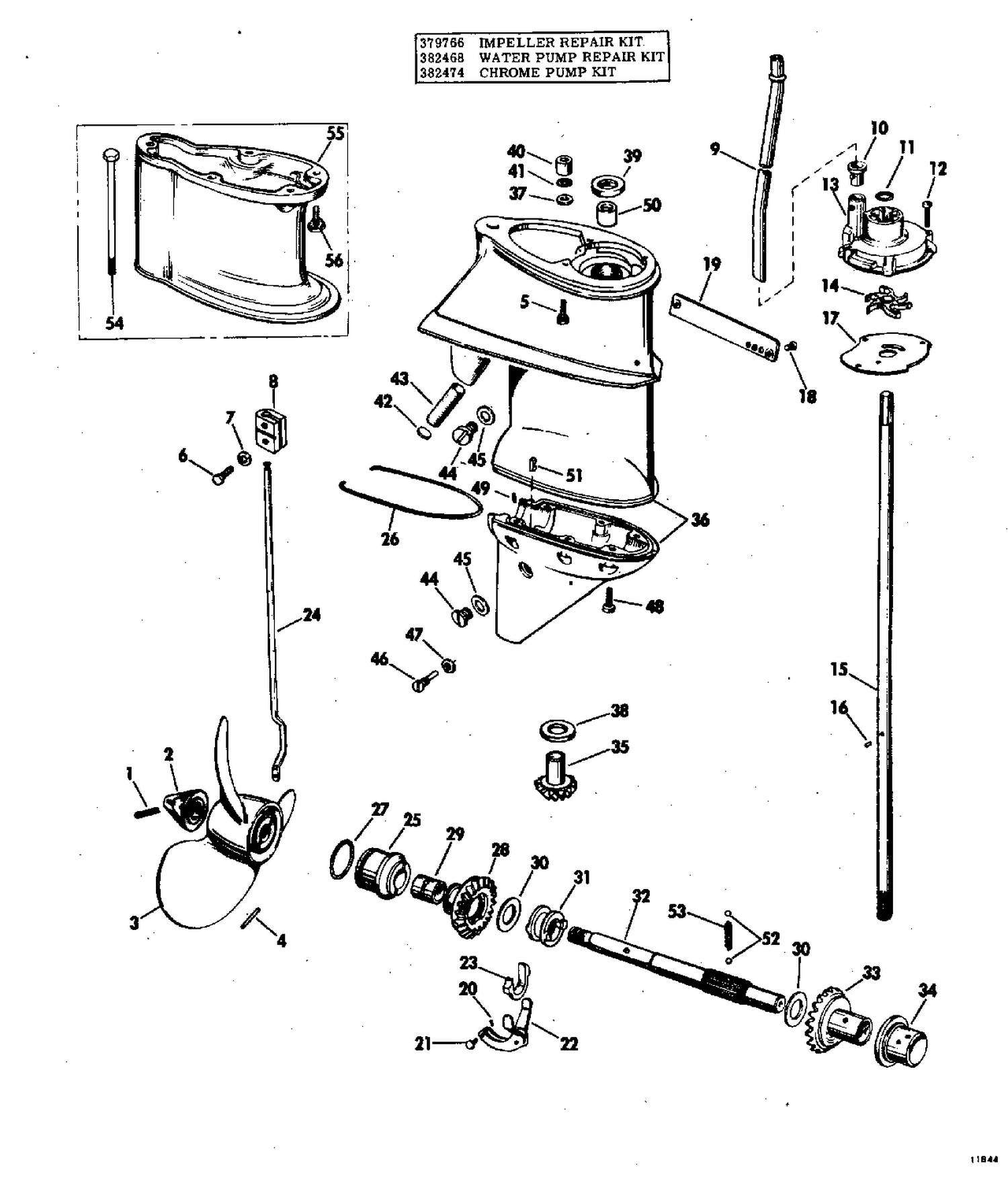

GEARCASE

GEARCASE

Parts (44)

RefPart NumberDescription
2 0376501 NUT, Propeller
3 0379717 PROPELLER 9 X 9
3 0383629 PROPELLER 9 X 10 (STD)
3 0592959 PROPELLER 9 x 10
4 0307949 DRIVE PIN, Propeller
5 0309705 SCREW This part replaces 0307155.
8 0304081 CONNECTOR 5 " EXTENSION KIT
9 0313777 TUBE, Water, standard
9 0313778 TUBE, Wataer long 5 INCH LONGER PARTS
12 0302508 SCREW, Impeller housing
13 0313543 HOUSING, Impeller
14 0375638 IIMPELLER, Water pump
15 0315385 DRIVESHAFT, Standard
15 0315386 DRIVE, Shaft long 5 INCH LONGER PARTS
16 0300771 PIN, Impeller
17 0303069 PLATE, Impeller housing
18 0303587 SCRES,Cover plate This part replaces 0302509.
19 0302505 COVER, Water by-pass
22 0375755 LEVER & PIN ASSY.
23 0302500 CRADLE
24 0303098 ROD, Lower shfit, standard
24 0303257 ROD, Shift, lower, long
25 0383757 GEARCASE HEAD ASSY
26 SEAL,Gearcase Ref: 27 0302493 "O" RING, Gearcase head 0302493
28 0316504 GEAR, Reverse
29 0303997 BUSHING, Reaverse gear
30 0301884 WASHER, Thrust
31 0316501 SHIFT, Clutch dog
32 0316502 SHAFT, Propeller
33 0384566 GEAR & BUSHING, Forward
34 0302496 BEARING, Front
35 0308617 PINION, Draft shaft
36 0389691 GEARCASE & BRG. ASSY. This part replaces 0383851.
41 0301877 O RING SHIFT ROD
47 0307853 O RING
48 0330562 SCREW, Gearcase This part replaces 0304070.
49 0300611 AXE, turbine vers arbre d'entraînement
54 0304135 SCREW, Exh. hsg. to gearcase, rear, long
55 0327563 EXTENSION. GEARCASE 5 INCH LONGER PARTS This part replaces 0304136.
0301967 0301967 O RING
0304801 0304801 MOUNT, Rubber, exhaust tube, upper front
0313524 0324455 SPACER, Exh. hsg. to imp. hsg This part replaces 0313524.
0383845 0383845 EXTENSION KIT ASSEMBLY 5 INCH LONGER PARTS
0384577 0384577 GEARCASE ASSY, Less drive shaft & pump
