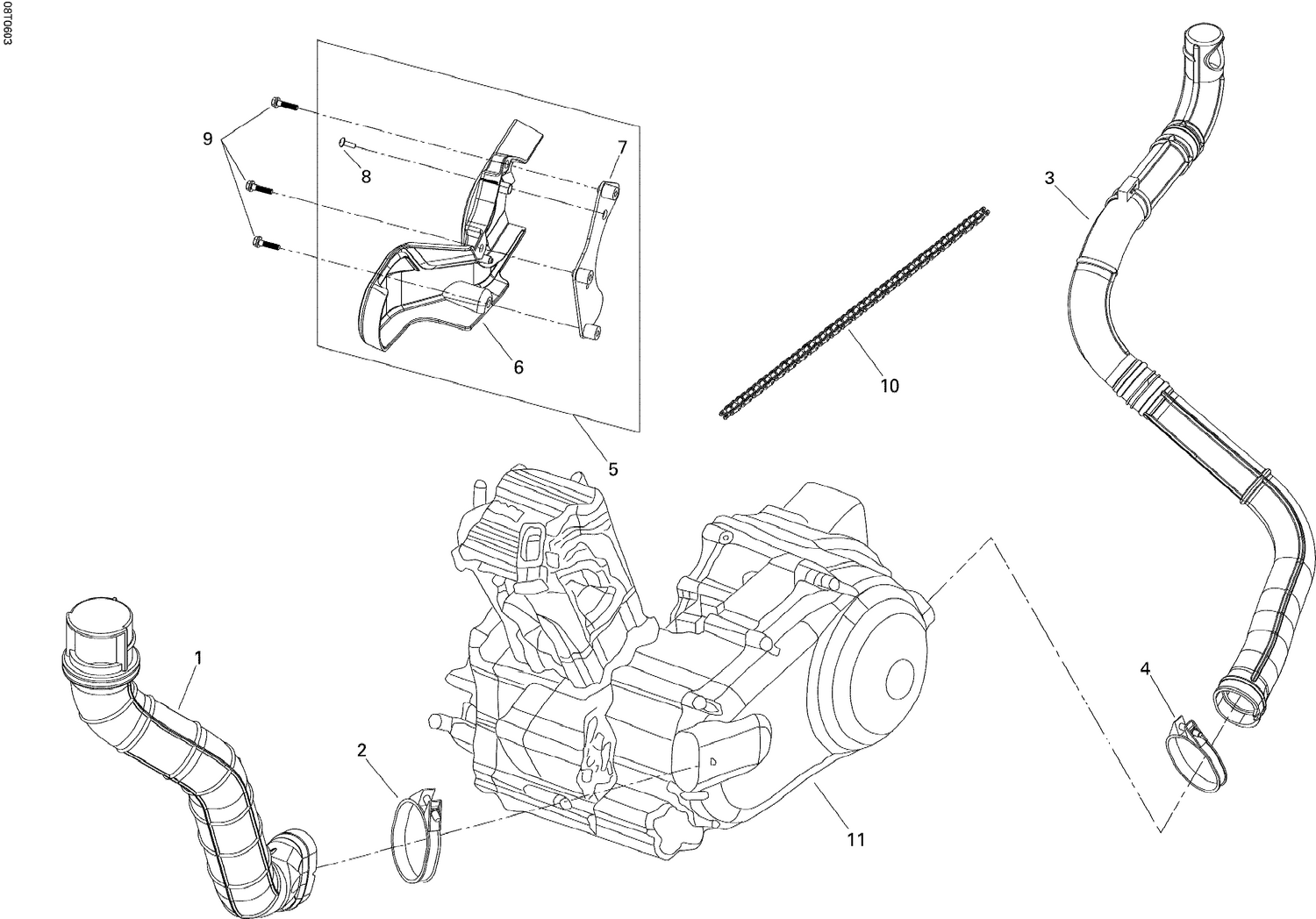

01- Engine
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S11345RCA000 | Primary Air Intake |
| 2 | S11346M9Q000 | Gemi Clamp |
| 3 | S11346RB1000 | Air Outlet |
| 4 | 293650090 | Norma Gear Clamp |
| 5 | S4010ARCA000 | Chain Protector Ass'y |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | NASP/NDPR | Not Available As Spare Parts |
| 8 | S9390334380 | Tapping Screw M4 X 12 |
| 9 | S938910502807 | FLANGE BOLT - Call your local BRP dealership |
| 10 | S40100RCA000 | Drive Chain |
