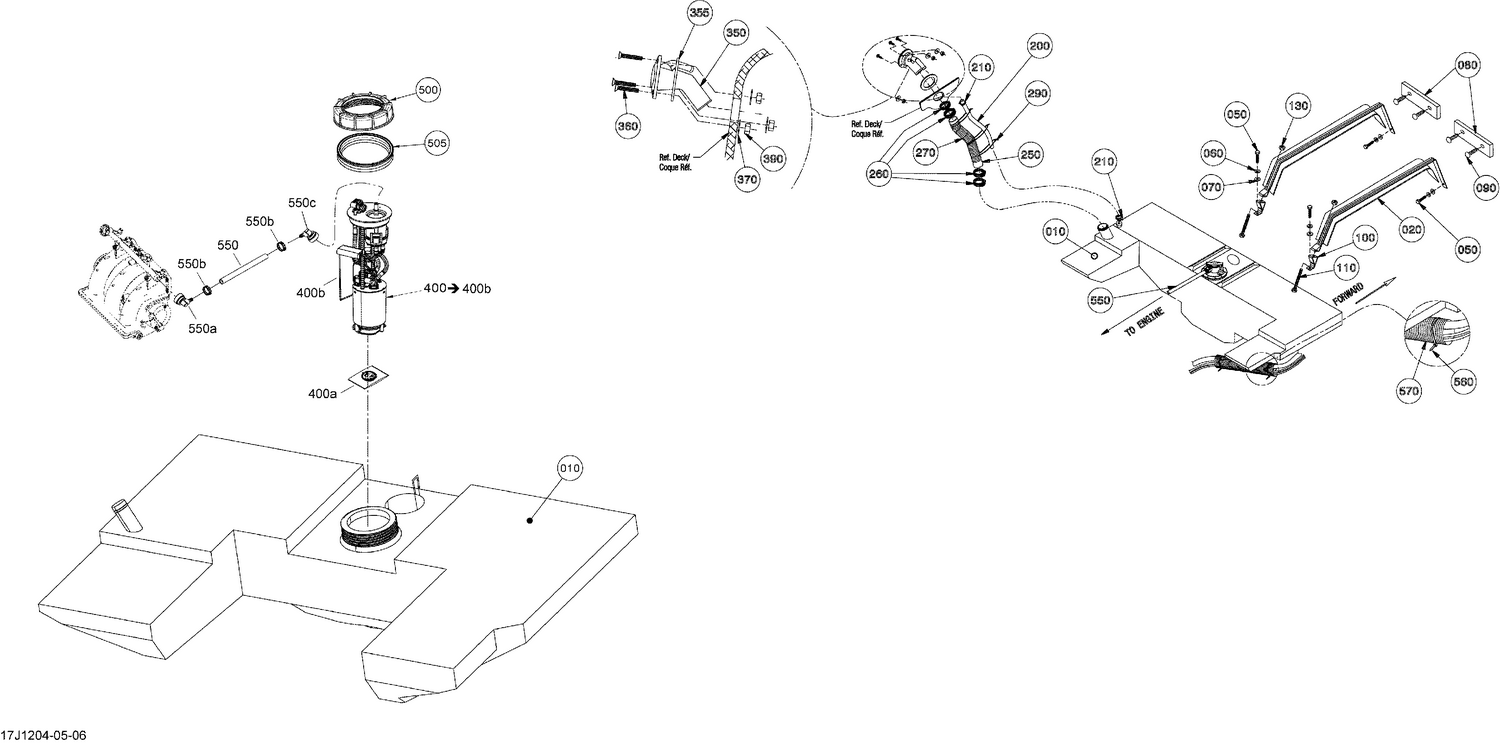

| Ref | Part Number | Description |
|---|
| 10 |
275500911 |
TANK-FUEL / 180CH MY12 ONLY - Call your local BRP dealership This part replaces 275500862. |
| 20 |
204560181 |
FUEL TANK STRAP - Call your local BRP dealership |
| 50 |
207183060 |
Hex. Screw M8 X 30 |
| 60 |
234181601 |
Lock Washer 8 mm, Stainless |
| 70 |
234082600 |
Flat Washer 8 mm, Stainless |
| 80 |
204060702 |
MUFFLER RUBBER PAD - Call your local BRP dealership |
| 90 |
293730006 |
Black, Dart |
| 100 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 110 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 130 |
232581600 |
Hex. Elastic Nut M8 |
| 200 |
204560358 |
HOSE 16 MM - Call your local BRP dealership |
| 210 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 250 |
204560401 |
FILLER NECK HOSE - Call your local BRP dealership |
| 260 |
275500823 |
NORMA CLAMP - Call your local BRP dealership |
| 270 |
204130408 |
SPLIT CONDUIT - Call your local BRP dealership |
| 290 |
293750008 |
Tie Wrap 368 mm |
| 350 |
275500800 |
FILLER NECK - Call your local BRP dealership |
| 355 |
204560188 |
SPACER - Call your local BRP dealership This part replaces 275500801. |
| 360 |
208643560 |
Phillips Screw M4 X 35 |
| 370 |
234040600 |
Flat Washer 4 mm |
| 390 |
232541600 |
Elastic Stop Nut M4 |
| 400a |
270600113 |
Fuel Filter This part replaces 270600108. |
| 400b |
296000351 |
LEVER SENSOR - Call your local BRP dealership |
| 500 |
204100257 |
SPECIAL NUT M150 - Call your local BRP dealership |
| 505 |
293250173 |
Gasket |
| 550 |
204560396 |
HOSE 5/16 - Call your local BRP dealership |
| 550a |
275500700 |
Quick Attach 90° |
| 550b |
293650084 |
Norma Clamp |
| 550c |
293710105 |
Elbow Fitting 90° |
| 560 |
293750002 |
Tie Wrap 142 mm |
