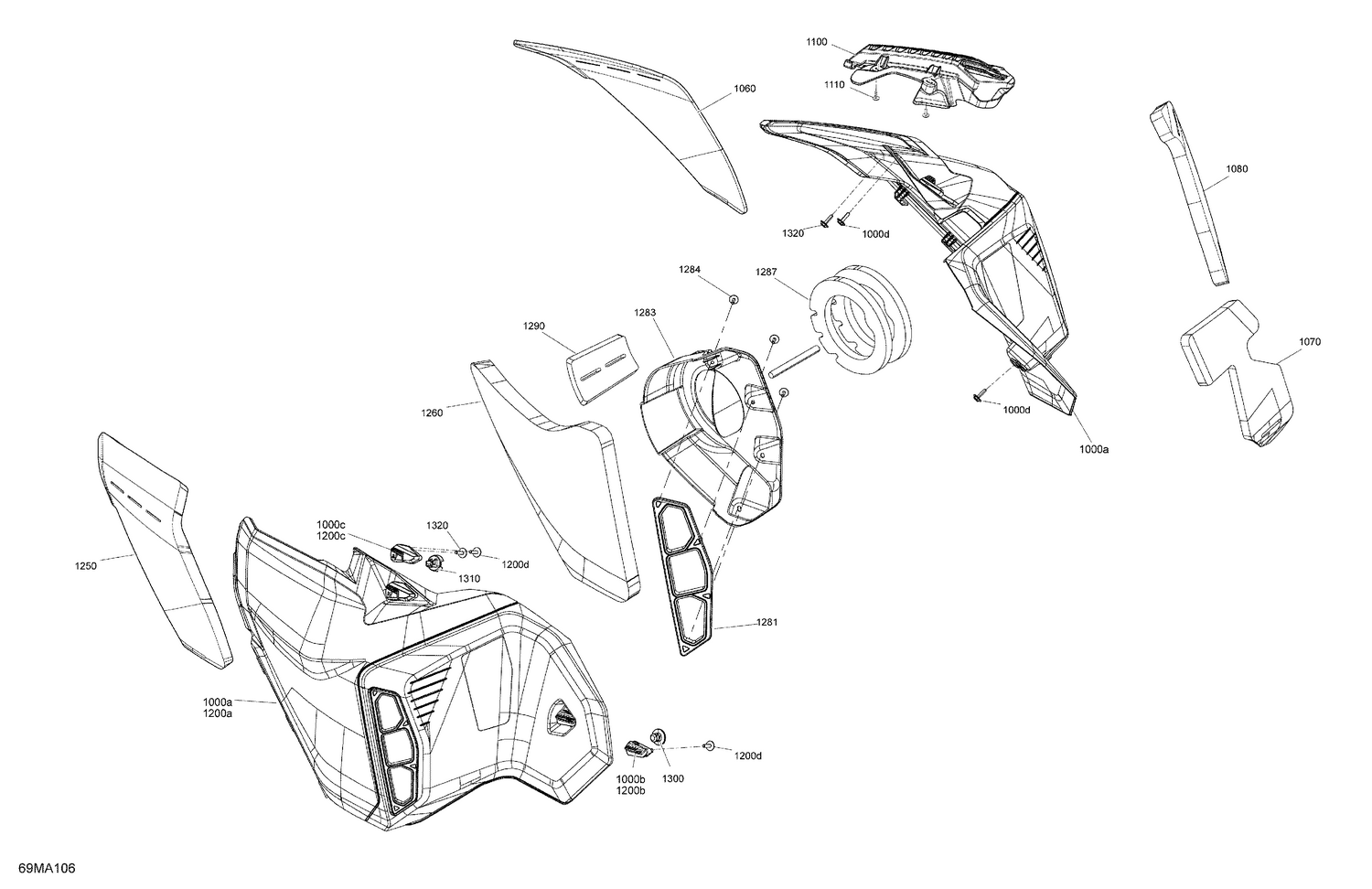

07- Body - Side Panels
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 517307286 | Can-Am Red, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1060 | 517306497 | RH Front Panel Foam |
| 1070 | 517306501 | RH Rear Panel Foam |
| 1080 | 517307292 | Foam |
| 1100 | 517308292 | RH Hood Grille Ass'y This part replaces 517307049. |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 517307048 | Can-Am Red, LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1250 | 517306498 | LH Front Panel Foam |
| 1260 | 517306562 | LH Central Panel Foam |
| 1281 | 517306948 | LH Grille Panel |
| 1283 | 517306964 | Ventilation Duct |
| 1284 | 250000725 | Screw M4 X 16 |
| 1287 | 517306954 | Foam |
| 1290 | 517307296 | Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
