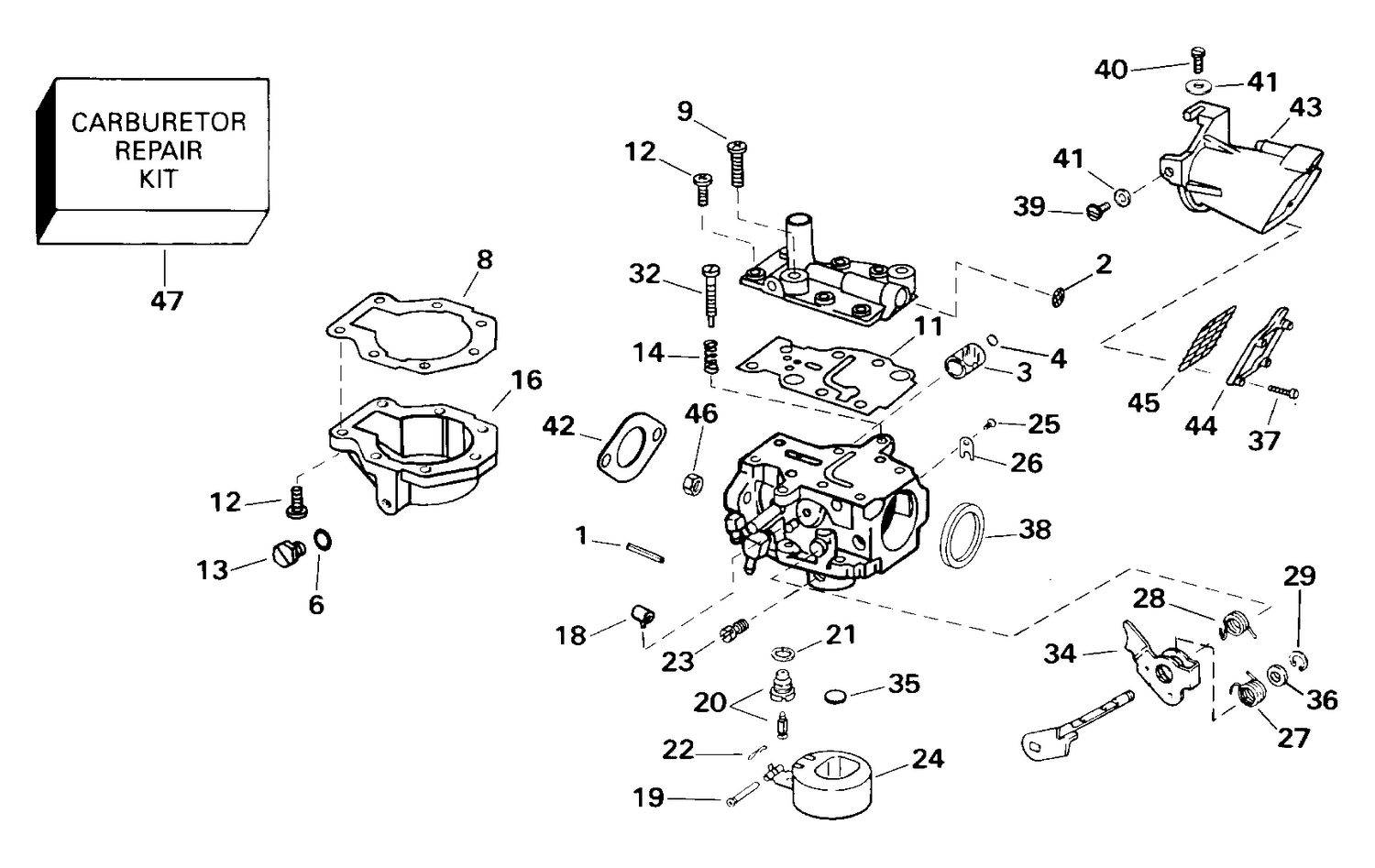

CARBURETOR - 9.9 HP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 22 | 0336842 | CLIP, SPRING |
| 37 | 0337353 | SCREW, Retainer & screen |
| 39 | 0337356 | SCREW, Air horn to carb., side |
| 40 | 0337357 | SCREW, Air horn to carb., top |
| 43 | 0338914 | AIR HORN |
| 44 | 0341402 | RETAINER, Screen to air horn |
| 45 | 0340009 | SCREEN, Air horn |
| 46 | 0337415 | NUT |
