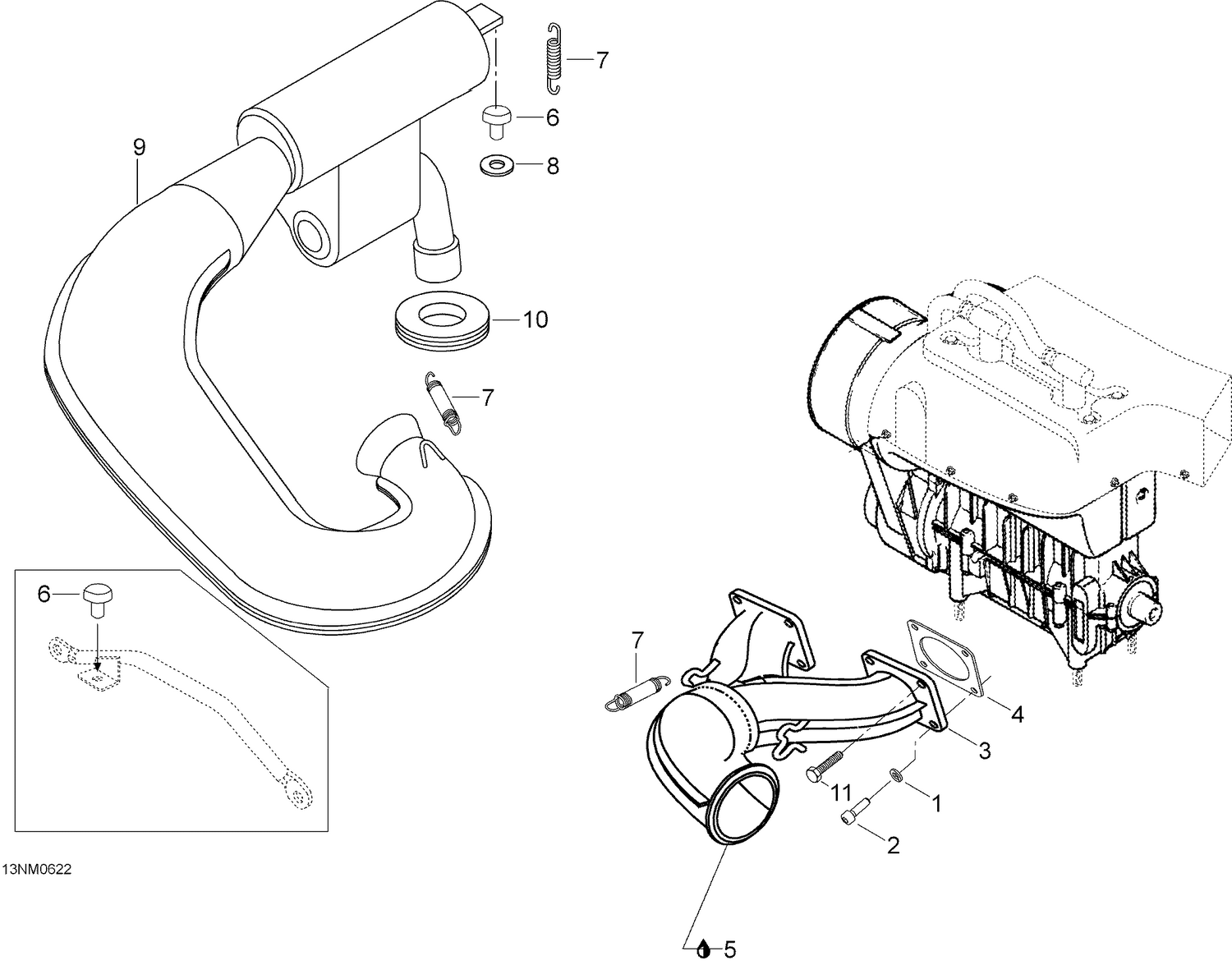

01- Exhaust System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20014 | Lock washer A8 |
| 2 | 40135 | Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 3 | 5242517 | Branch-Y |
| 4 | 420831849 | Seal |
| 5 | 293800090 | Loctite, 80ml |
| 6 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 7 | 420938796 | Spring This part replaces 420938795. |
| 8 | 20087 | Washer M14 |
| 9 | 605150134 | Tuned pipe |
| 10 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
