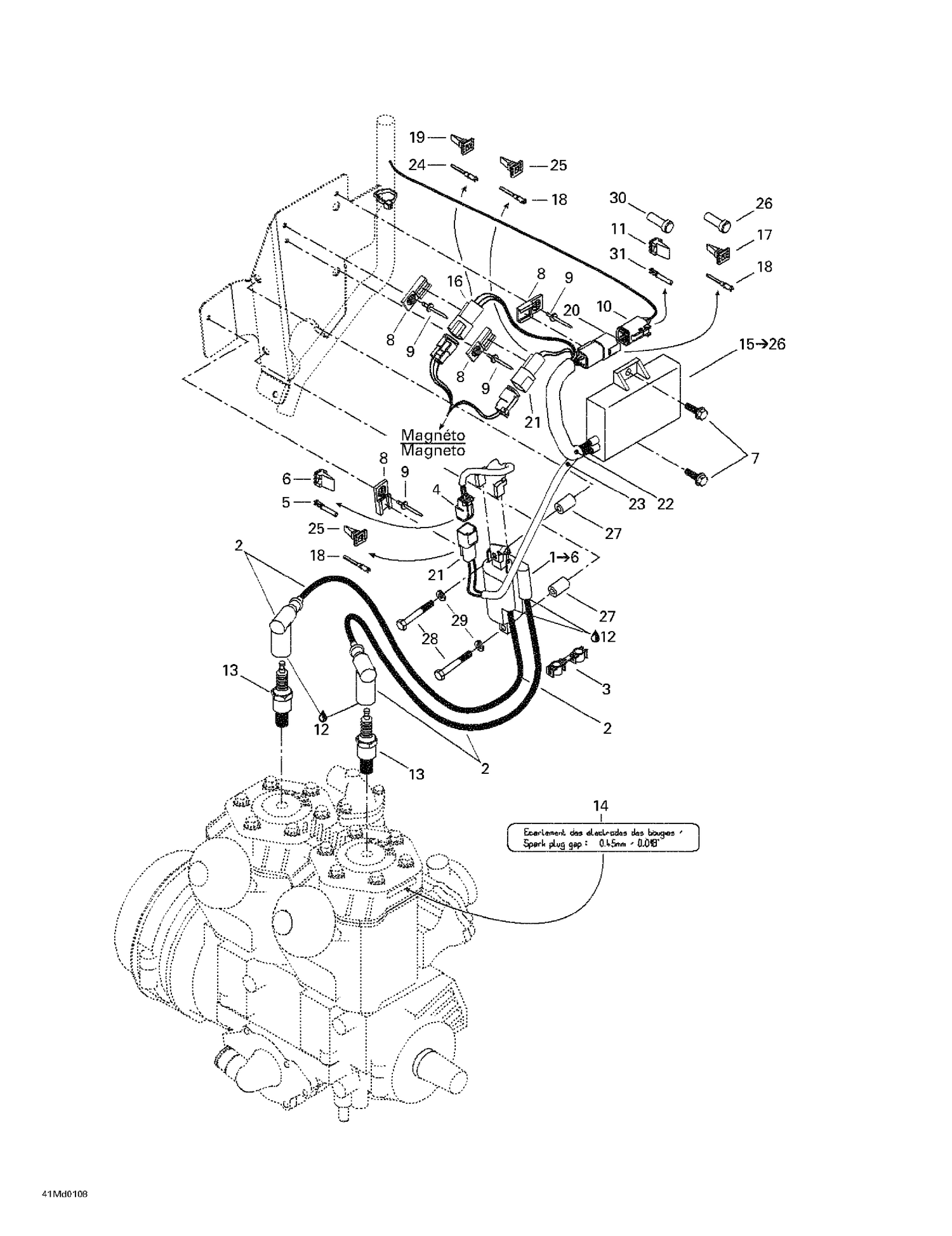

| Ref | Part Number | Description |
|---|
| 2 |
512059406 |
Cable Ass'y 515 mm |
| 3 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 4 |
409207300 |
Female Connector, 2 Circuits |
| 5 |
278000632 |
Female Terminal |
| 6 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
270000141 |
Clip |
| 9 |
Not |
Available As Spare Part - Pop Rivet 3/16 |
| 10 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 11 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 14 |
516000986 |
Spark Plug Decal |
| 16 |
710000045 |
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 17 |
278000735 |
Female Lock, 6 Circuits |
| 18 |
278000631 |
Male Terminal |
| 19 |
710000046 |
MALE LOCK, 4 CIRCUITS - Call your local BRP dealership |
| 20 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 21 |
409206900 |
Male Housing, 2 Circuits |
| 22 |
219704407 |
Tubing 10 MM 1000MM Long |
| 23 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 24 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 25 |
409207500 |
Male Lock, 2 Circuits |
| 26 |
515175303 |
PLUG - Call your local BRP dealership |
| 27 |
517203200 |
Spacer |
| 28 |
207064544 |
Hex. Screw M6 X 45 |
| 29 |
234161471 |
Lock Washer M6, Black |
| 30 |
293000052 |
Sealing Cap |
| 512059407 |
Cable |
Ass'y 595 mm 512059407 |
