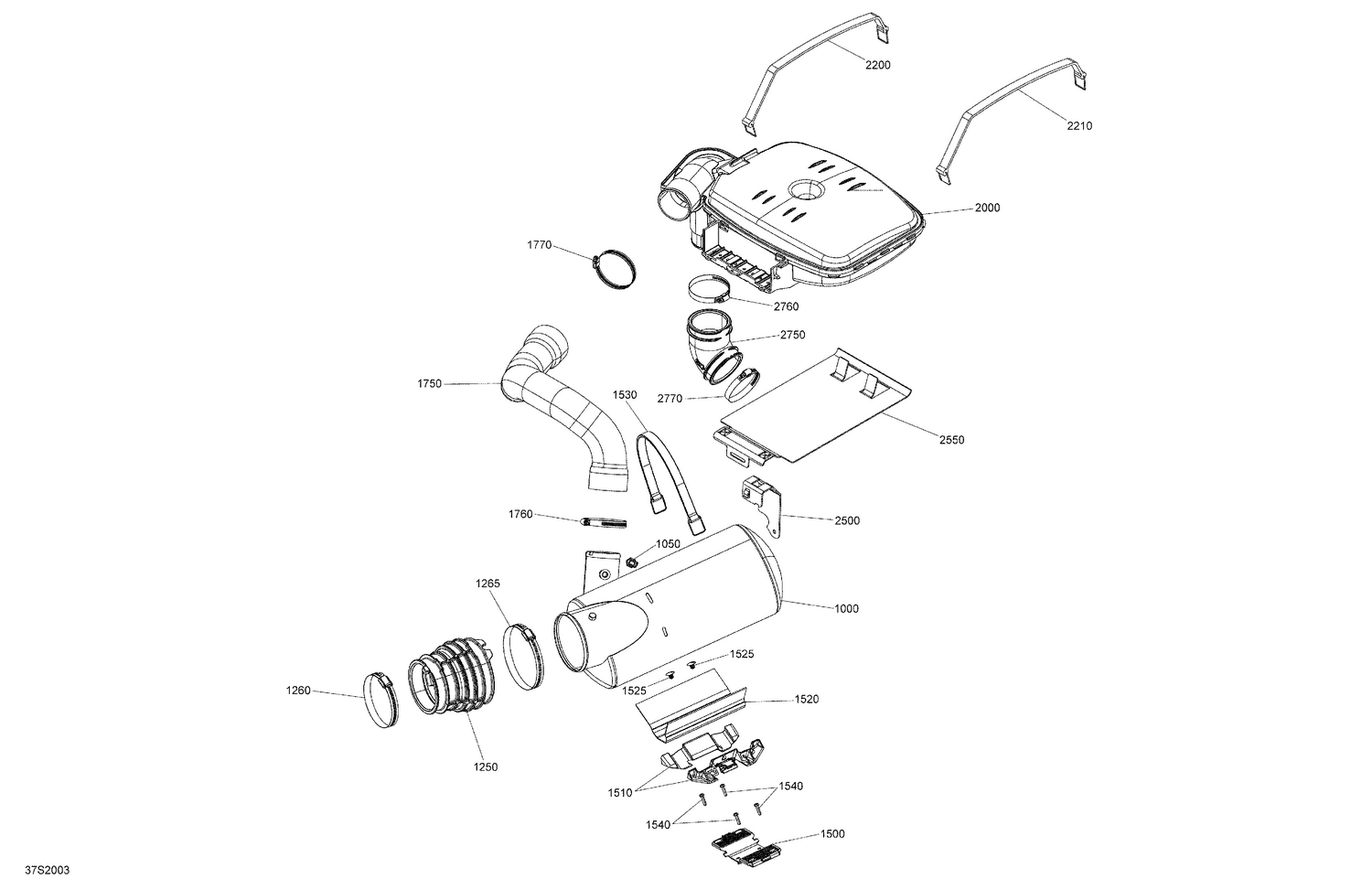

01- Exhaust
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 274001685 | Muffler |
| 1050 | 278002895 | Temperature Sensor |
| 1250 | 274001692 | Boot |
| 1260 | 293650202 | Gear Clamp |
| 1265 | 293650299 | Gear Clamp |
| 1500 | 293450365 | Muffler Support |
| 1510 | 274001721 | Stopper |
| 1520 | 293830153 | Pad Rubber |
| 1525 | 414939500 | Dart |
| 1530 | 293850120 | Strap |
| 1540 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1750 | 274001709 | Front Exhaust Hose |
| 1760 | 293650244 | Tridon Gear Clamp |
| 1770 | 293650244 | Tridon Gear Clamp |
| 2000 | 274001722 | Resonator This part replaces 274001514. |
| 2200 | 293850120 | Strap |
| 2210 | 293850120 | Strap |
| 2500 | 292002297 | Hook Retaining |
| 2550 | 293830173 | Rubber Pad |
| 2750 | 274001628 | Rear Exhaust Hose This part replaces 274001617. |
| 2760 | 293650244 | Tridon Gear Clamp |
