Home / BRP / 1996 / Summit / Summit 583, 1996 / 05- Driven Pulley 583

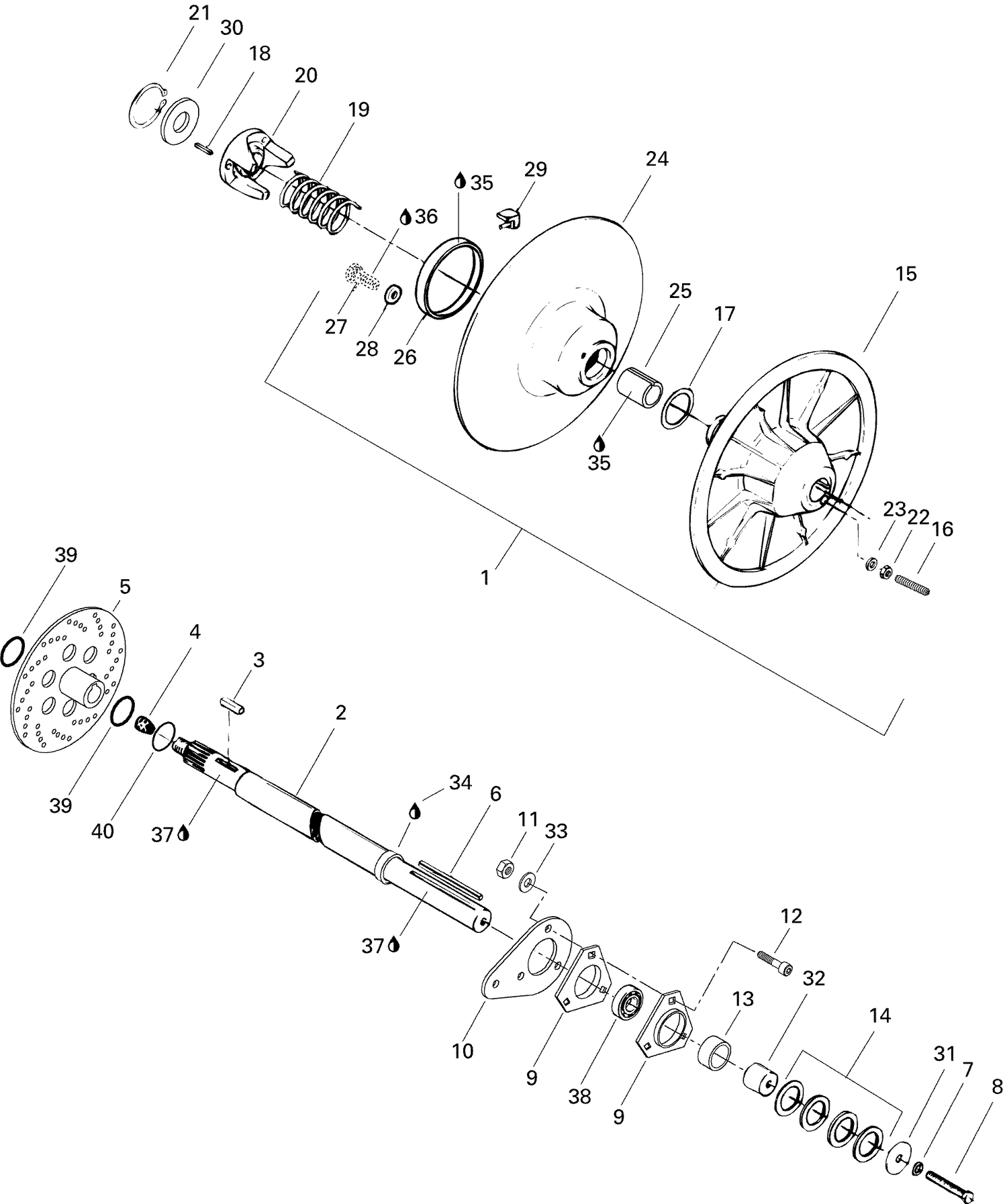

05- Driven Pulley 583

05- Driven Pulley 583

Parts (37)

RefPart NumberDescription
2 504098400 Countershaft
3 507021300 KEY - Call your local BRP dealership
4 XXX Not Available As Spare Parts
5 507029000 WELDED DISK - Call your local BRP dealership
6 414581300 Key
7 234181401 Lock Washer 8 mm This part replaces 224781140.
8 207086544 Hex. Screw M8 x 65 This part replaces 222086565.
9 501025000 FLANGE - Call your local BRP dealership
10 501022300 Spacer
11 232581414 Hex. Elastic Stop Nut M8 This part replaces 228581045.
12 732601156 Allen Screw M8 x 25
13 504128300 Shim
14 504108200 SHIM - Call your local BRP dealership
15 504141600 Fixed Flange
16 223563065 Allen Screw M6 x 30
17 504091500 Thrust Washer
18 414820800 Key
19 414558900 RELEASE SPRING, BEIGE - Call your local BRP dealership
20 504096100 Cam (50 Deg.)
21 371903100 CIRCLIP - Call your local BRP dealership
22 232061414 Hex. Nut M6 This part replaces 228061045.
23 420245370 WASHER - Call your local BRP dealership
25 415011200 BUSHING - Call your local BRP dealership
26 414876600 GARLOCK BUSHING - Call your local BRP dealership
27 732600022 SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership
28 399910000 Flat Washer
29 414918000 CAM SLIDER SHOE - Call your local BRP dealership
30 504091400 Washer
31 517078700 WASHER - Call your local BRP dealership
32 504091600 Counter Shaft Extension
33 234081410 Flat Washer 8 mm This part replaces 224081171.
34 293800060 Loctite 243, 10 ml This part replaces 413703000.
35 413703100 Loctite 609, 10 ml
36 293800005 Loctite 271, 10 ml This part replaces 413707400.
37 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
38 415129552 BALL BEARING - Call your local BRP dealership This part replaces 405407900.
39 414928900 O'RING - Call your local BRP dealership
