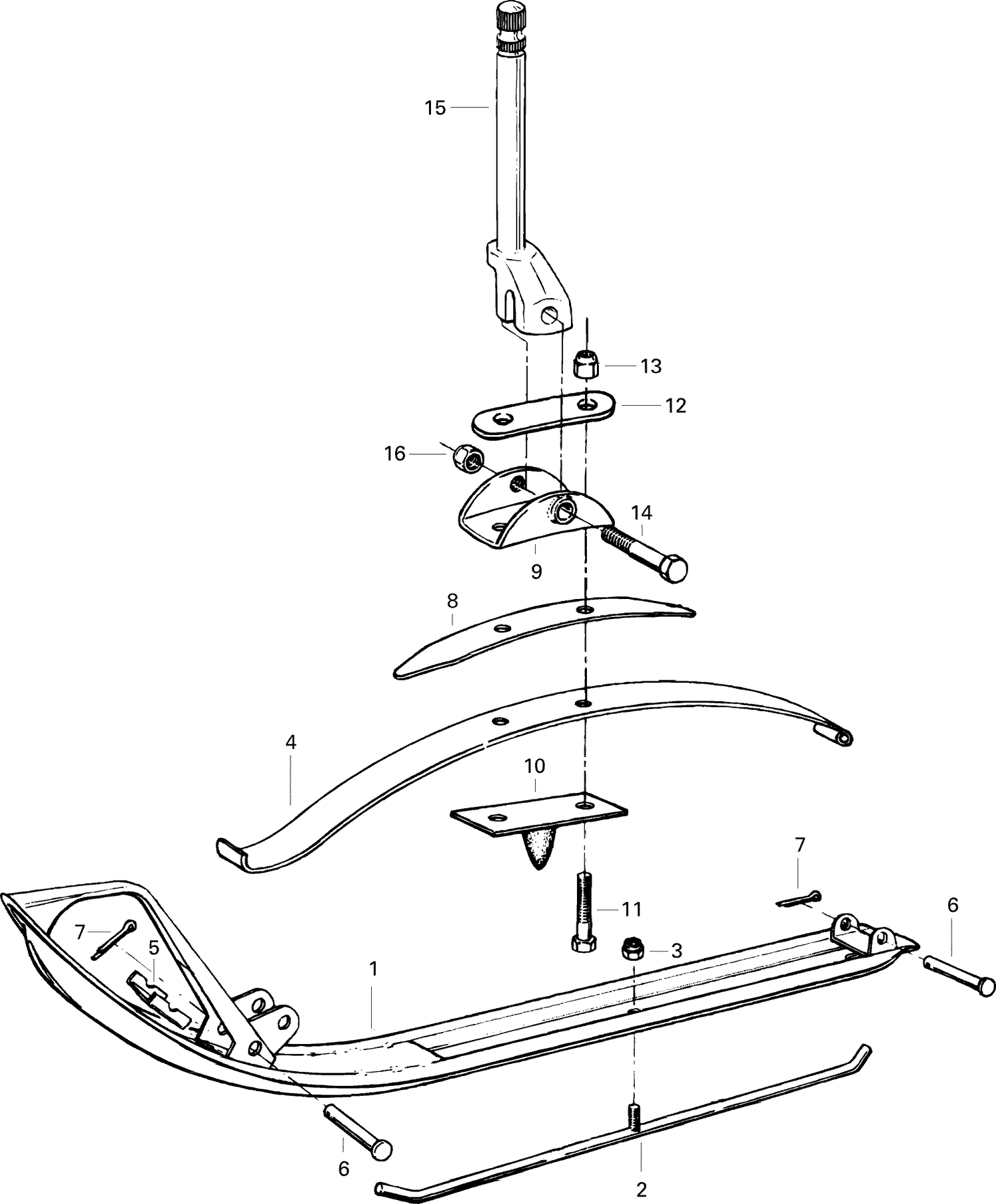

07- Front Suspension and Ski
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505061500 | Ski |
| 2 | 505061400 | Runner Shoe |
| 3 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 4 | 505026200 | Main Leaf Spring |
| 5 | 505066800 | Spring Slider Cushion |
| 6 | 414143600 | Retainer Pin |
| 7 | 371800200 | Cotter Pin |
| 8 | 505026300 | Aux. Leaf Spring |
| 9 | 505040800 | Spring Coupler |
| 10 | 560306100 | Rebound Leaf |
| 11 | 301608400 | Hex. Screw 3/8-24 x 1 1/4 |
| 12 | 505038700 | Lock Tab |
| 13 | 389807300 | Hex. Nut 3/8-24 |
| 14 | 305313300 | Hex. Screw 7/16-20 x 3 1/2 |
| 15 | 506032300 | Ski Leg |
| 16 | 398202600 | Elastic Nut 7/16-20 |
