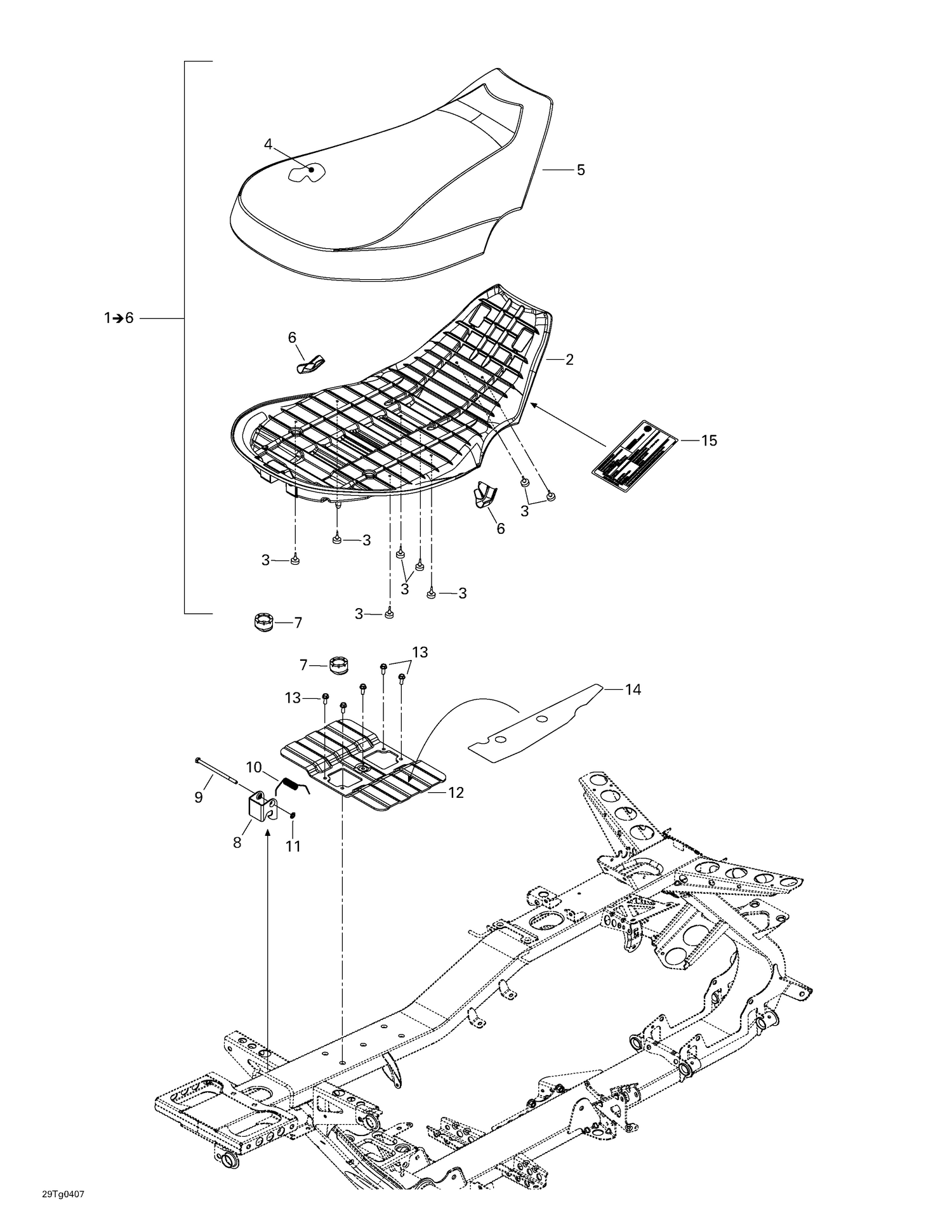

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Seat base |
| 3 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 4 |
Not |
Available As Spare Part - Seat foam |
| 5 |
708000142 |
Seat Cover |
| 6 |
708000199 |
Seat Corner |
| 7 |
708000760 |
Bumper Rubber This part replaces 708000143. |
| 8 |
708000144 |
Latch, Black |
| 9 |
230061060 |
HEX. SCREW M6 X 110 - Call your local BRP dealership |
| 10 |
708000369 |
Spring This part replaces 708000146. |
| 11 |
732610072 |
Push Nut |
| 12 |
708000629 |
Seat Reinforcement This part replaces 708000152. |
| 13 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 14 |
708000198 |
REFLECTING SHEET - Call your local BRP dealership |
