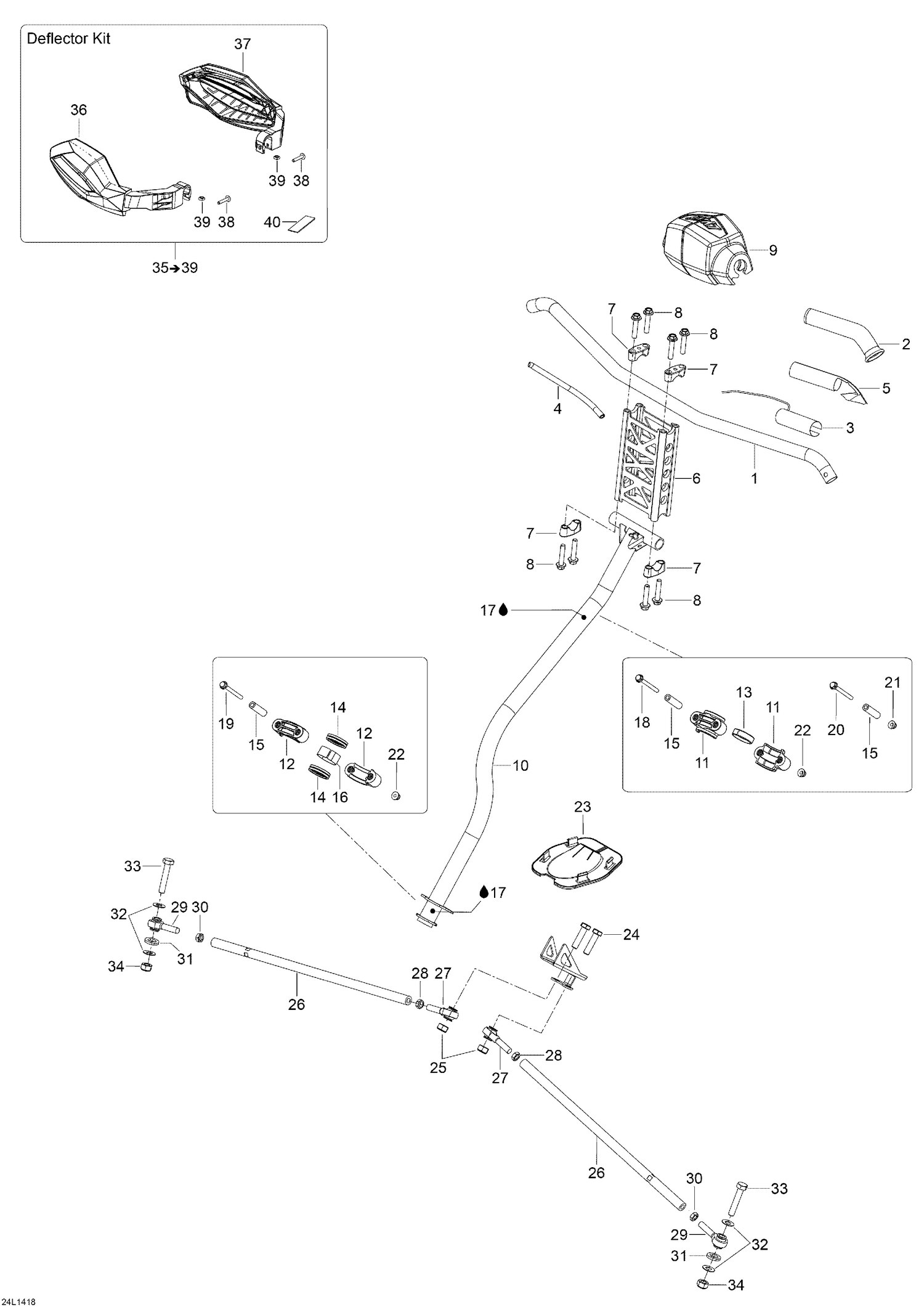

07- Steering System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152724 | Handle Bar |
| 2 | 506152486 | Grip |
| 3 | 506152798 | Element Chauff.*Heated Film This part replaces 506152665. |
| 4 | 515175830 | Protector Tube |
| 5 | 506153176 | Isolant This part replaces 506152548. |
| 6 | 506152570 | Extension |
| 7 | 506152751 | Steering Support This part replaces 506152395. |
| 8 | 250000352 | Hex. Flanged Screw M8 x 40 |
| 9 | 506152553 | Steering Pad |
| 10 | 506152962 | Steering Column This part replaces 506152584. |
| 11 | 506152508 | Half Housing Upper |
| 12 | 506152217 | Half Housing Lower |
| 13 | 506152509 | Vibrat. Gasket Upper |
| 14 | 506152518 | Lower Vibration Ring |
| 15 | 506152297 | Housing Bushing |
| 16 | 506152440 | RETAINING RING - Call your local BRP dealership |
| 17 | Not | Available As Spare Part - Synthetic Grease |
| 18 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 19 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 506152163 | Plate |
| 24 | 207004044 | Hex. Screw M10 x 40 |
| 25 | 232500416 | Elastic Stop Nut M10 |
| 26 | 506152496 | Tie Rod |
| 27 | 506152081 | Ball Joint |
| 28 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 29 | 506152019 | Ball Joint |
| 30 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 31 | 503192496 | Washer |
| 32 | 506152194 | Washer |
| 33 | 207005544 | Hex Screw M10 x 55 |
| 34 | 232500416 | Elastic Stop Nut M10 |
| 36 | Not | Available As Spare Part - Deflector RH, White |
| 37 | Not | Available As Spare Part - Deflector LH, White |
| 38 | 250000501 | PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 39 | 250000498 | SQUARE NUT M6 - Call your local BRP dealership |
