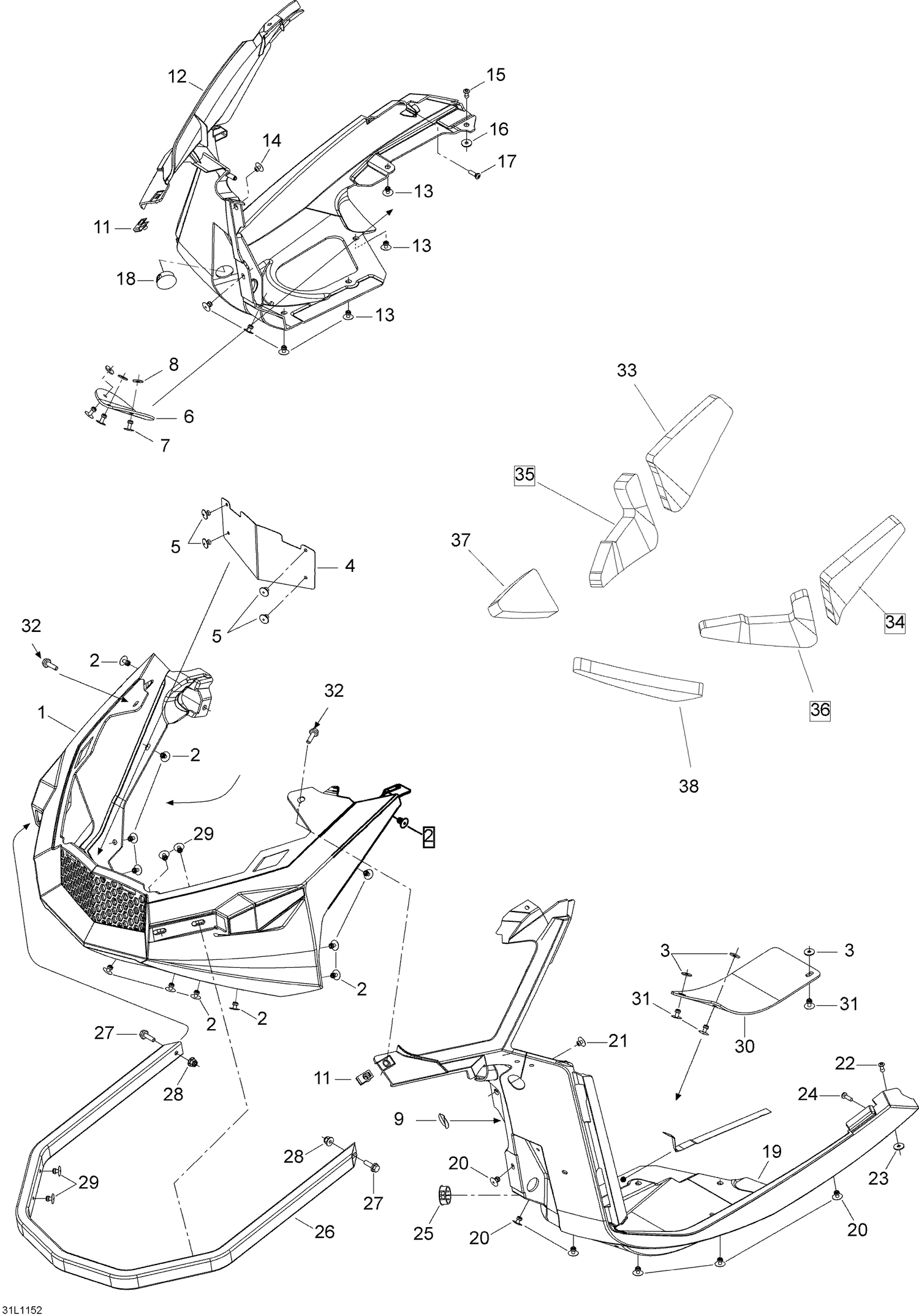

09- Bottom Pan
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006971 | Front Bottom Pan, Depp Black |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 502007056 | BOTTOM PAN PLATE - Call your local BRP dealership |
| 5 | 293150104 | Pop Rivet 3/16 |
| 6 | 502006935 | Snow Deflector |
| 7 | 293150104 | Pop Rivet 3/16 |
| 8 | 517124300 | Washer |
| 9 | 293250087 | Gasket, Neoprene |
| 11 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 12 | 502006831 | RH Bottom Pan |
| 13 | 293150104 | Pop Rivet 3/16 |
| 14 | 293150103 | Pop Rivet 3/16 |
| 15 | 390402300 | Pop Rivet 3/16" |
| 16 | 517124300 | Washer |
| 17 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 18 | 414916600 | Nylon Cap |
| 19 | 502006832 | LH Bottom Pan |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 293150103 | Pop Rivet 3/16 |
| 22 | 390402300 | Pop Rivet 3/16" |
| 23 | 517124300 | Washer |
| 24 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 25 | 414916600 | Nylon Cap |
| 26 | 502007116 | Front Bumper |
| 27 | 207662044 | Hex. Flange Screw M6 X 20 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 293150104 | Pop Rivet 3/16 |
| 30 | 502006888 | GUARD PLATE - Call your local BRP dealership |
| 31 | 293150104 | Pop Rivet 3/16 |
| 32 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 33 | 502007210 | RH Foam Upper |
| 34 | 502007211 | LH Foam Upper |
| 35 | 502007212 | RH Middle Foam |
| 36 | 502007213 | LH Middle Foam |
| 37 | 502007214 | RH Lower Foam |
