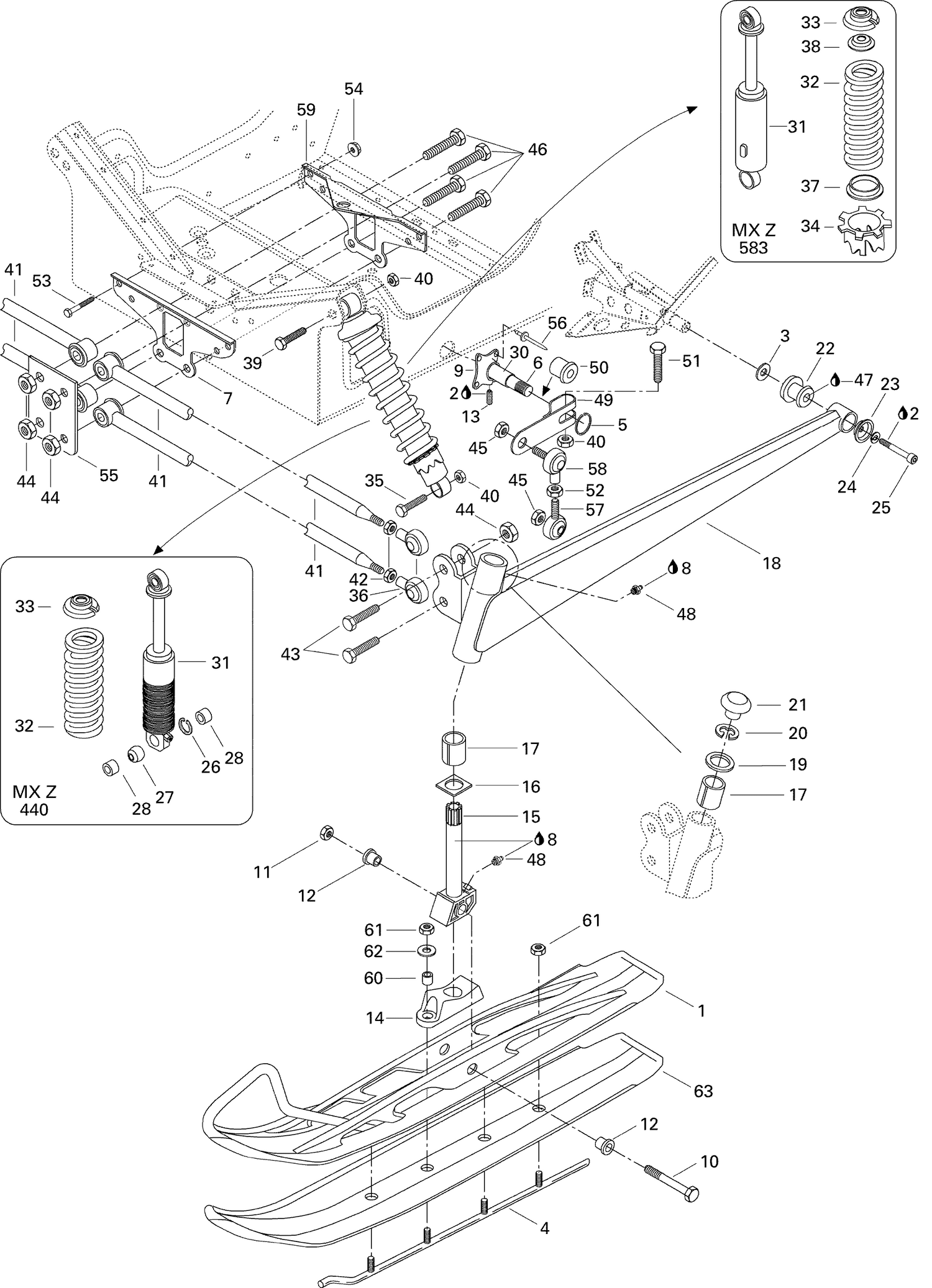

| Ref | Part Number | Description |
|---|
| 1 |
505066610 |
Ski (Narrow) |
| 2 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 3 |
503146700 |
WASHER - Call your local BRP dealership |
| 4 |
505066720 |
Runner (6 Carbide) |
| 5 |
371901600 |
Circlip |
| 6 |
506131900 |
Stabilizator Bar |
| 7 |
517254800 |
Front Link Plate |
| 8 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 9 |
506122800 |
Housing |
| 10 |
732601176 |
Hex. Screw M12 |
| 11 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 12 |
414530600 |
CUSHION - Call your local BRP dealership |
| 13 |
414440800 |
Socket Set Screw M8 X 10 |
| 14 |
570053500 |
Ski Stopper |
| 15 |
506130900 |
Ski Leg |
| 16 |
506081200 |
Wear Plate |
| 17 |
572069900 |
Cushion |
| 18 |
506126210 |
RH Swing Arm (Yellow) |
| 18 |
506126310 |
LH Swing Arm (Yellow) |
| 19 |
506080900 |
Thrust Washer |
| 20 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 21 |
572079100 |
CAP - Call your local BRP dealership |
| 22 |
570062200 |
DAMPER - Call your local BRP dealership |
| 23 |
506079600 |
CUP - Call your local BRP dealership |
| 24 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
XXX |
Not Available As Spare Parts |
| 27 |
XXX |
Not Available As Spare Parts |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
506118600 |
Tube |
| 31 |
414956700 |
Front Shock (HPG) (Canada, U.S.A. Only) |
| 32 |
414956300 |
Shock Spring (Yellow) |
| 33 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 34 |
505073625 |
Adjustment Cam This part replaces 414762600. |
| 35 |
222006000 |
Hex. Screw M10 x 60 |
| 36 |
414976400 |
RH BJoint |
| 37 |
503191872 |
Spring Guide This part replaces 517184300. |
| 38 |
706200785 |
Cap This part replaces 503141600. |
| 39 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 40 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 41 |
580638900 |
Arm Ass’y |
| 42 |
232170411 |
Hex. Jam Nut M14 This part replaces 228371042. |
| 43 |
222025075 |
Hex. Screw M12 x 50 |
| 44 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 45 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 46 |
732601113 |
Hex. Screw M12 x 100 |
| 47 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 48 |
408200700 |
Grease Fitting |
| 49 |
506132000 |
Lever-Stabilizer |
| 50 |
414878500 |
Cushion |
| 51 |
207004544 |
Hex. Screw M10 X 45 This part replaces 222004565. |
| 52 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 53 |
207065544 |
Hex. Screw M6 X 55 This part replaces 222065565. |
| 54 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 55 |
518306700 |
Support |
| 56 |
390909100 |
Avex Rivet |
| 57 |
414942100 |
BJoint RH |
| 58 |
414778400 |
BJoint |
| 59 |
517254900 |
Rear Link Plate |
| 60 |
506117300 |
BUSHING - Call your local BRP dealership |
| 61 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 62 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
