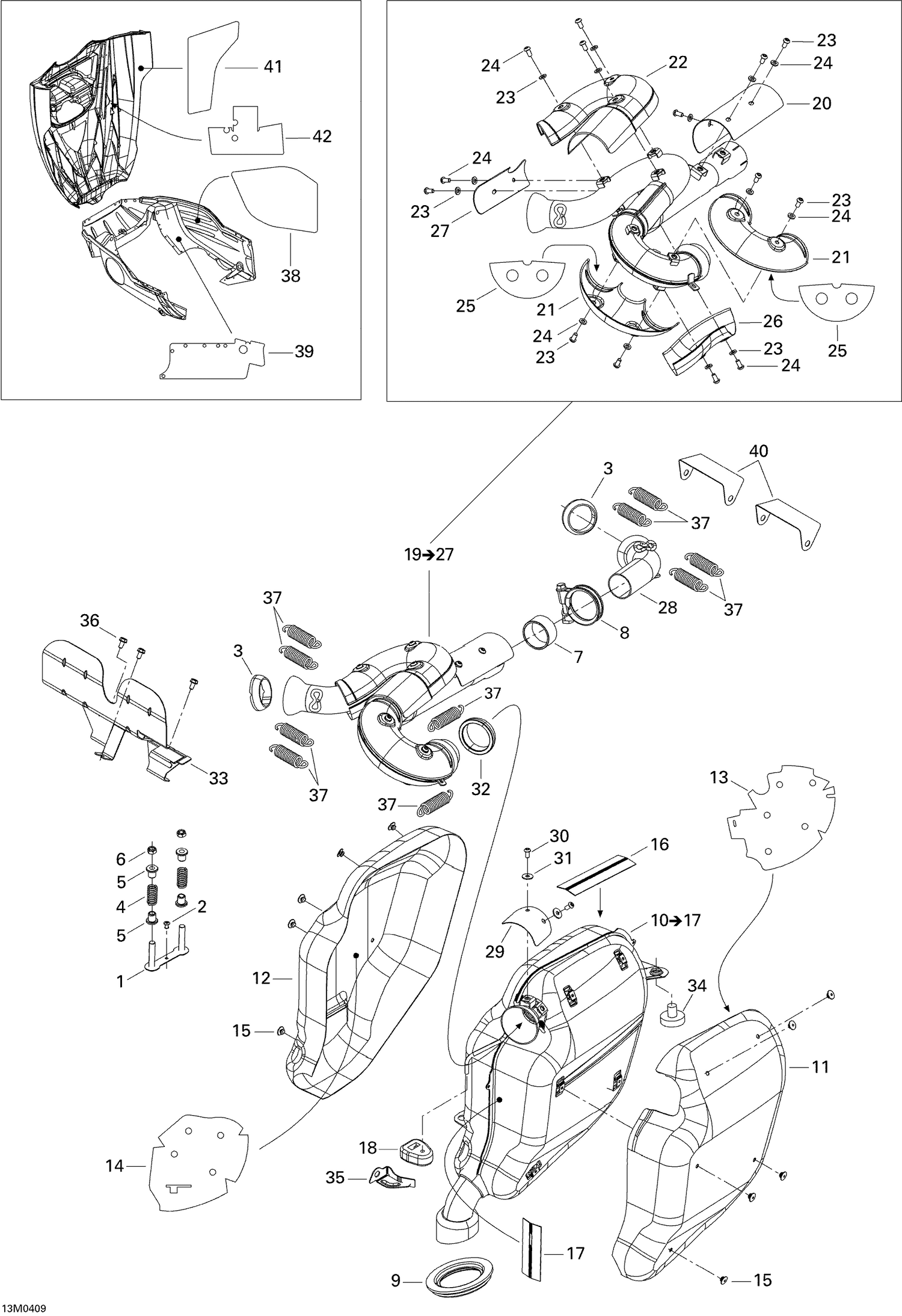

01- Exhaust System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053263 | Muffler Bracket |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 707601033 | Exhaust Gasket This part replaces 514053532. |
| 4 | 414913700 | SPRING - Call your local BRP dealership |
| 5 | 514053343 | GUIDE - Call your local BRP dealership |
| 6 | 233481413 | Lock Spring Nut M8 |
| 7 | 514053580 | PIPE GASKET - Call your local BRP dealership |
| 8 | 514053521 | Gear Clamp Norma |
| 9 | 514053064 | Exhaust Grommet |
| 11 | 514053661 | RH Heat Shield |
| 12 | 514053293 | LH HEAT SHIELD - Call your local BRP dealership |
| 13 | 514053705 | RH Wooll Insulating |
| 14 | 514053295 | LH Wooll Insulating |
| 15 | 390910000 | Pop Rivet 3/16” |
| 16 | 514053659 | Upper Deflector |
| 17 | 514053660 | Rear Deflector |
| 18 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 20 | 514053529 | Heat Shield |
| 21 | 514053530 | Heat Shield |
| 22 | 514053531 | Heat Shield |
| 23 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 24 | 234062600 | Flat Washer M6, Stainless |
| 25 | 514053625 | Wooll Insulating |
| 26 | 514053626 | Shield Heat |
| 27 | 514053701 | Shield Heat |
| 28 | 514053528 | Front Pipe |
| 29 | 514053706 | Heat Shield |
| 30 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 31 | 234062600 | Flat Washer M6, Stainless |
| 32 | 514054174 | Exhaust Gasket This part replaces 514053582. |
| 33 | 514053583 | Shield Heat |
| 34 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 35 | 514053442 | SUPPORT - Call your local BRP dealership |
| 36 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 37 | 415107100 | Spring |
| 38 | 514053628 | REFLECTIVE SHEET - Call your local BRP dealership |
| 39 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 40 | 514053620 | Front Deflector |
| 41 | 514053627 | Reflective Sheet |
