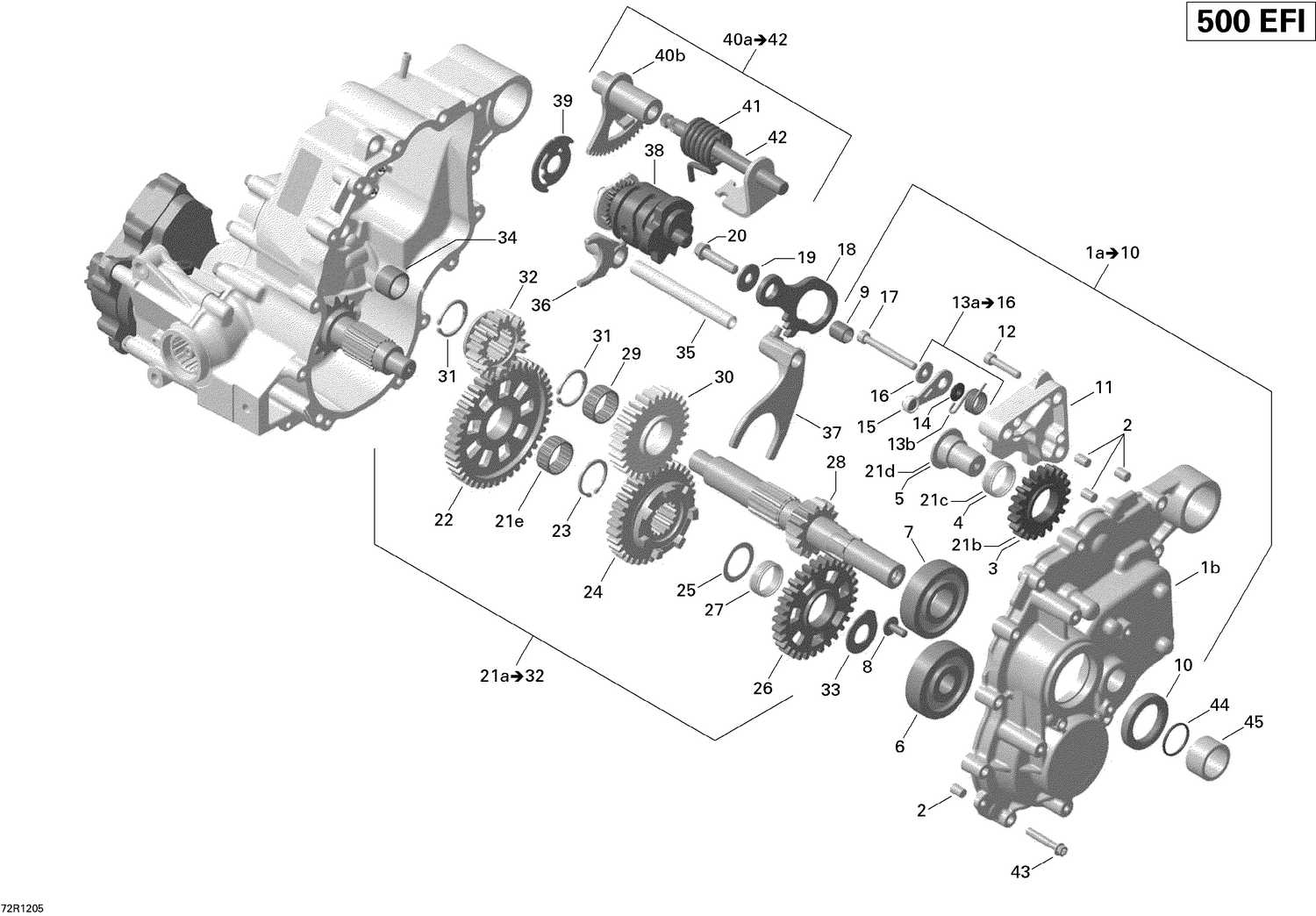

01- Gear Box And Components

01- Gear Box And Components

Parts (47)

RefPart NumberDescription
1b Not Available As Spare Part - LH Gear Housing
2 420632010 Center Pin 8 X 12
3 Not Available As Spare Part - Intermedite Gear, 21 Teeth
4 420232654 Needle Bearing This part replaces 420232652.
5 Not Available As Spare Part - Intermedite Gear Shaft
6 420632295 Ball Bearing This part replaces 420632290.
7 420932822 Ball Bearing This part replaces 420932825.
8 420241522 Torx Screw M6 X 16 This part replaces 420241529.
9 Not Available As Spare Part - Bushing
10 420950089 Oil Seal This part replaces 420950087.
11 420611451 Support This part replaces 420611450.
12 205063044 Socket Head Screw M6 X 30
13b Not Available As Spare Part - Index Spring
14 Not Available As Spare Part - Step Ring
15 Not Available As Spare Part - Index Level
16 Not Available As Spare Part - Washer
17 420240332 Allen Screw M6 X 55 This part replaces 420240331.
18 703501128 Kit Parking Lock Lever Assembly This part replaces 420257652.
19 420227937 Plain Washer
20 420641188 Torx Flange Screw M8 X 35
21b Not Available As Spare Part - Intermedite Gear, 21 Teeth
21c 420232654 Needle Bearing This part replaces 420232652.
21d Not Available As Spare Part - Intermedite Gear Shaft
21e 420632070 Needle Bearing
22 Not Available As Spare Part - Pigion Gear, 43 Teeth
23 420845772 Retaining Ring This part replaces 420845771.
24 Not Available As Spare Part - Pigion Gear, 35 Teeth
25 420427011 Thrust Washer This part replaces 420944479.
26 Not Available As Spare Part - Pigion Gear, 31 Teeth
27 420232654 Needle Bearing This part replaces 420232652.
28 Not Available As Spare Part - Countershaft
29 420632070 Needle Bearing
30 Not Available As Spare Part - Pigion Gear, 28 Teeth
31 420845772 Retaining Ring This part replaces 420845771.
32 Not Available As Spare Part - Pigion Gear, 20 Teeth
33 420281302 Thrust Washer Set, CVT Side This part replaces 420281308.
34 420832240 Needle Bushing
35 420258383 Fork Spindle
36 420657311 Shifting Fork This part replaces 420257611.
37 420657321 Shifting Fork This part replaces 420257621.
38 703501128 Kit Parking Lock Lever Assembly This part replaces 420257578.
39 420626092 Isolating Washer This part replaces 420626091.
40b Not Available As Spare Part - Transfert Gear
41 Not Available As Spare Part - Spring
42 Not Available As Spare Part - Shift Shaft
43 420641258 Torx Flange Screw M6 X 35
44 420631612 O-Ring This part replaces 420631610.
