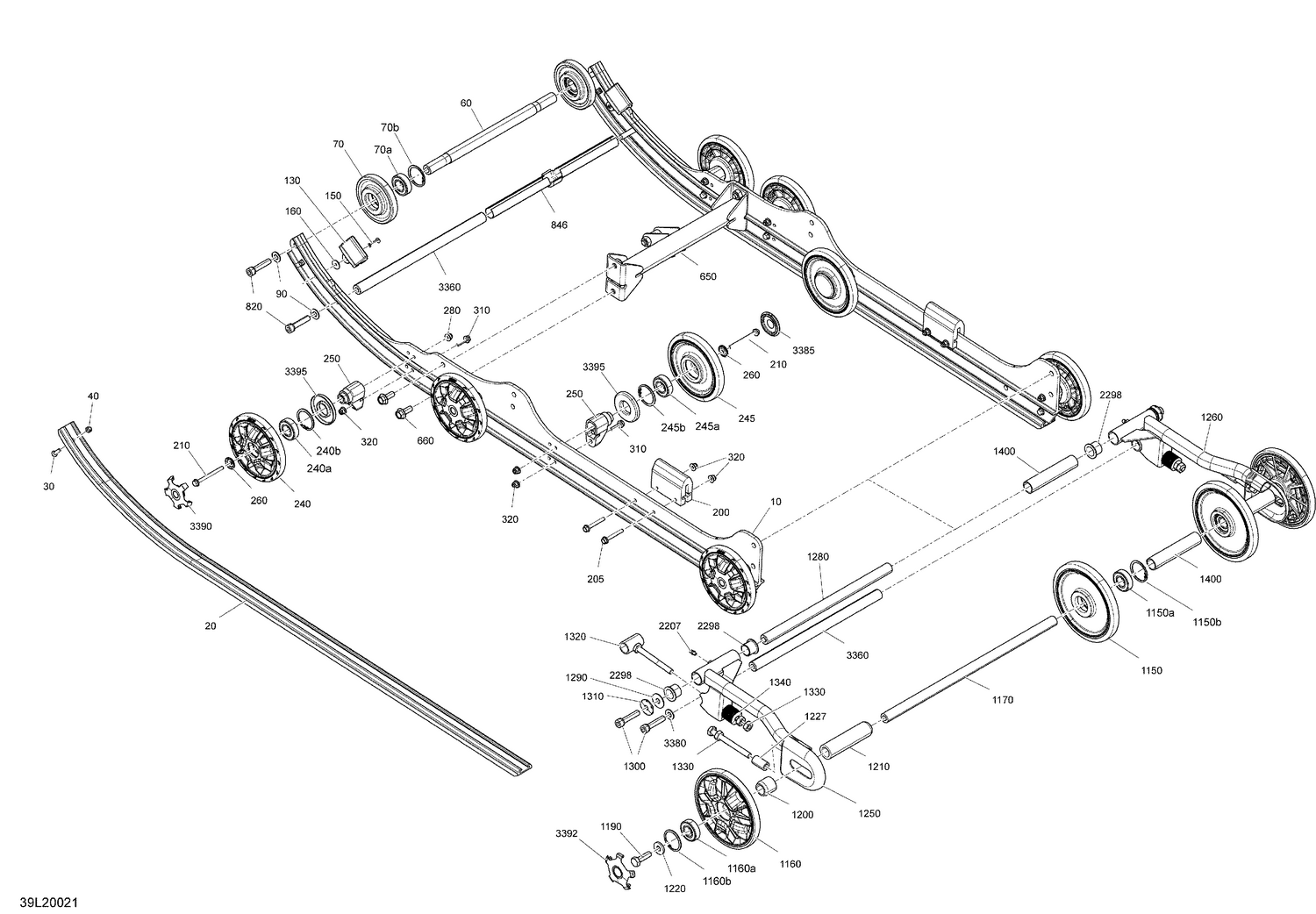

| Ref | Part Number | Description |
|---|
| 20 |
503194307 |
Black, Slider Shoe |
| 30 |
208562531 |
Phillips Screw M6 X 25 |
| 40 |
232561414 |
Elastic Stop Nut M6 |
| 60 |
503192889 |
Front Wheel Shaft |
| 70a |
503190396 |
Ball Bearing |
| 70b |
415129371 |
Retaining Ring |
| 90 |
234001410 |
Flat Washer 10 mm |
| 130 |
503193504 |
Rubber Stopper |
| 150 |
293150224 |
Rivet Pop 3/16 |
| 160 |
503191273 |
Washer |
| 200 |
570023100 |
RUBBER STOPPER - Call your local BRP dealership |
| 205 |
207664554 |
Hex, Flange Screw |
| 210 |
207667056 |
Hex. Flange Screw M6 x 70 |
| 240a |
503190396 |
Ball Bearing |
| 240b |
415129371 |
Retaining Ring |
| 245a |
503190396 |
Ball Bearing |
| 245b |
415129371 |
Retaining Ring |
| 250 |
503193894 |
Casted Support |
| 260 |
503191820 |
Wheel Cup M6 |
| 280 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 310 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 320 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 650 |
503193182 |
Lower Support, Center Shock |
| 660 |
250001026 |
Screw-Hex.Flange DIN.6921 |
| 820 |
205504544 |
Socket Screw |
| 846 |
503195144 |
Limiter Strap Holder |
| 1150a |
503190396 |
Ball Bearing |
| 1150b |
415129371 |
Retaining Ring |
| 1160a |
415129371 |
Retaining Ring |
| 1160b |
503190396 |
Ball Bearing |
| 1170 |
503191408 |
Rear Axle |
| 1190 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 1200 |
503192048 |
Sleeve |
| 1210 |
503192671 |
Spacer |
| 1220 |
503190439 |
Washer |
| 1227 |
503192696 |
Spacer |
| 1250 |
503194592 |
LH Extension Swing |
| 1260 |
503194593 |
RH Extension Swing |
| 1280 |
5347713 |
Lower shaft, front arm |
| 1290 |
20116 |
Shim 10,5/30X1,5 ZNE |
| 1300 |
250001025 |
Screw-Socket M10 X 50 S.Grip |
| 1310 |
512056700 |
Aluslevy, karkaistu M10 |
| 1320 |
503192695 |
Adjustment screw |
| 1330 |
232006414 |
Hex. Nut M10 X 1.5 |
| 1340 |
25004 |
Cup Spring |
| 1400 |
605448429 |
Mellan hylsa |
| 2207 |
408200700 |
Grease Fitting |
| 2298 |
31024 |
Lower Cushion rear arm |
| 3360 |
503192927 |
Shaft Passivated |
| 3380 |
234001410 |
Flat Washer 10 mm |
| 3385 |
503192771 |
Black, Wheel Cap |
| 3390 |
503195345 |
Black, Wheel Cap |
| 3392 |
503195348 |
Black, Wheel Cap |
