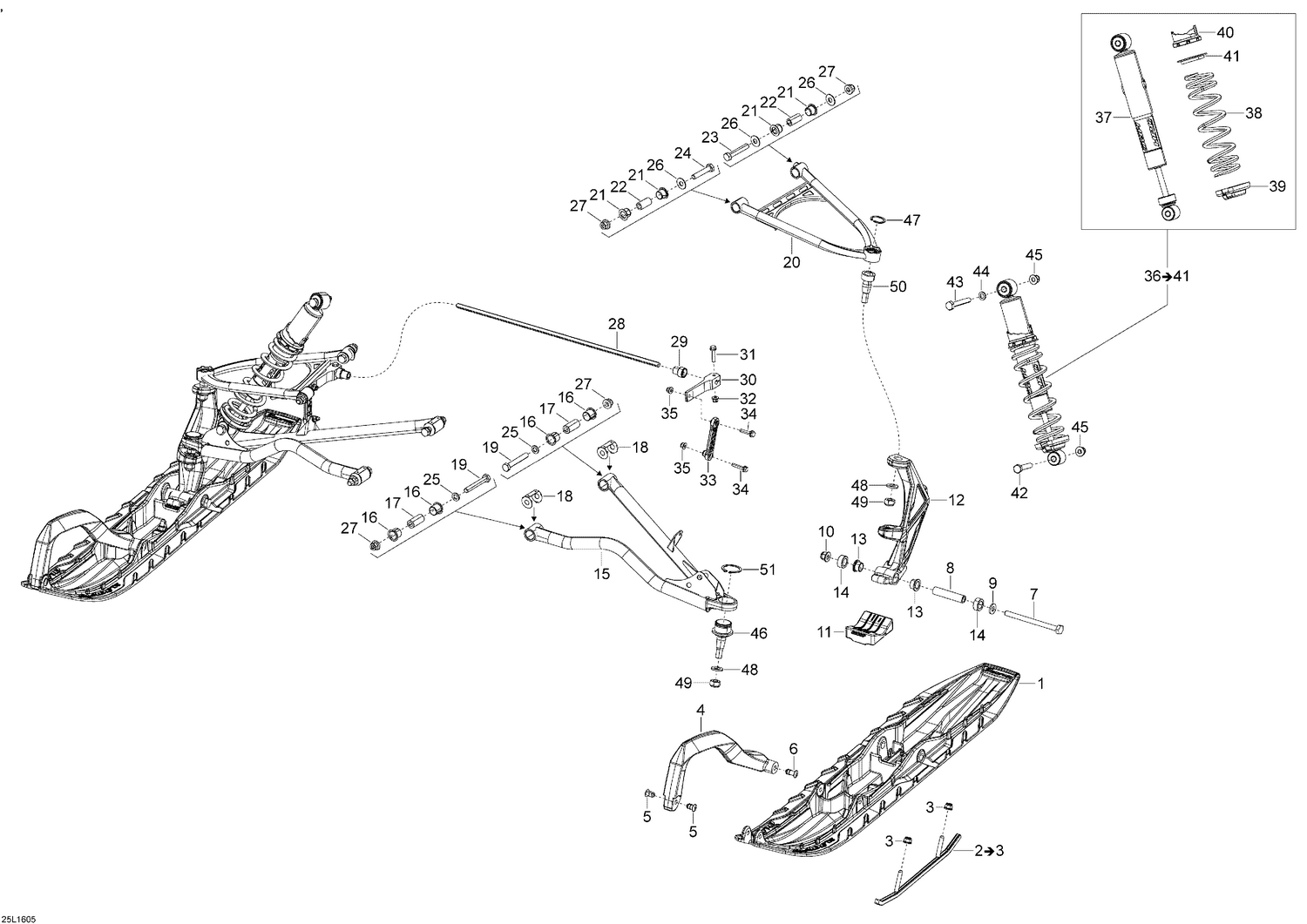

07- Front Suspension And Ski
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073834 | Black Blade DS Ski |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 505073651 | Orange, Handle |
| 5 | 505071812 | Retainer 17mm long |
| 6 | 505072133 | Retainer 23mm Long |
| 7 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 8 | 506133300 | Ski Axle |
| 9 | 732900049 | Washer |
| 10 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 11 | 505072594 | Ski Stopper |
| 12 | 505073557 | LH Ski Leg |
| 12 | 505073558 | RH Ski Leg |
| 13 | 505072690 | Leg Bushing |
| 14 | 505072807 | Spacer |
| 16 | 505073330 | Bushing |
| 17 | 505072209 | Bushing |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 21 | 505073329 | Bushing |
| 22 | 505072143 | Bushing |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 25 | 503189564 | Washer |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 31 | 207663046 | Hex. Flange Screw M6 X 30 |
| 32 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 34 | 207663046 | Hex. Flange Screw M6 X 30 |
| 35 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 39 | 706200881 | Spring Stopper |
| 40 | 505073625 | Adjustment Cam |
| 41 | 503191872 | Spring Guide |
| 42 | 207005544 | Hex. Cap Screw M10 x 55 |
| 43 | 207006544 | Hex. Cap Screw M10 x 65 |
| 44 | 503189564 | Washer |
| 45 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 46 | 505073636 | Ball Joint |
| 47 | 293370070 | Circlip |
| 48 | 234021410 | Flat Washer |
| 49 | 250100089 | Nut M12 |
| 50 | 505072913 | Upper Ball Joint |
