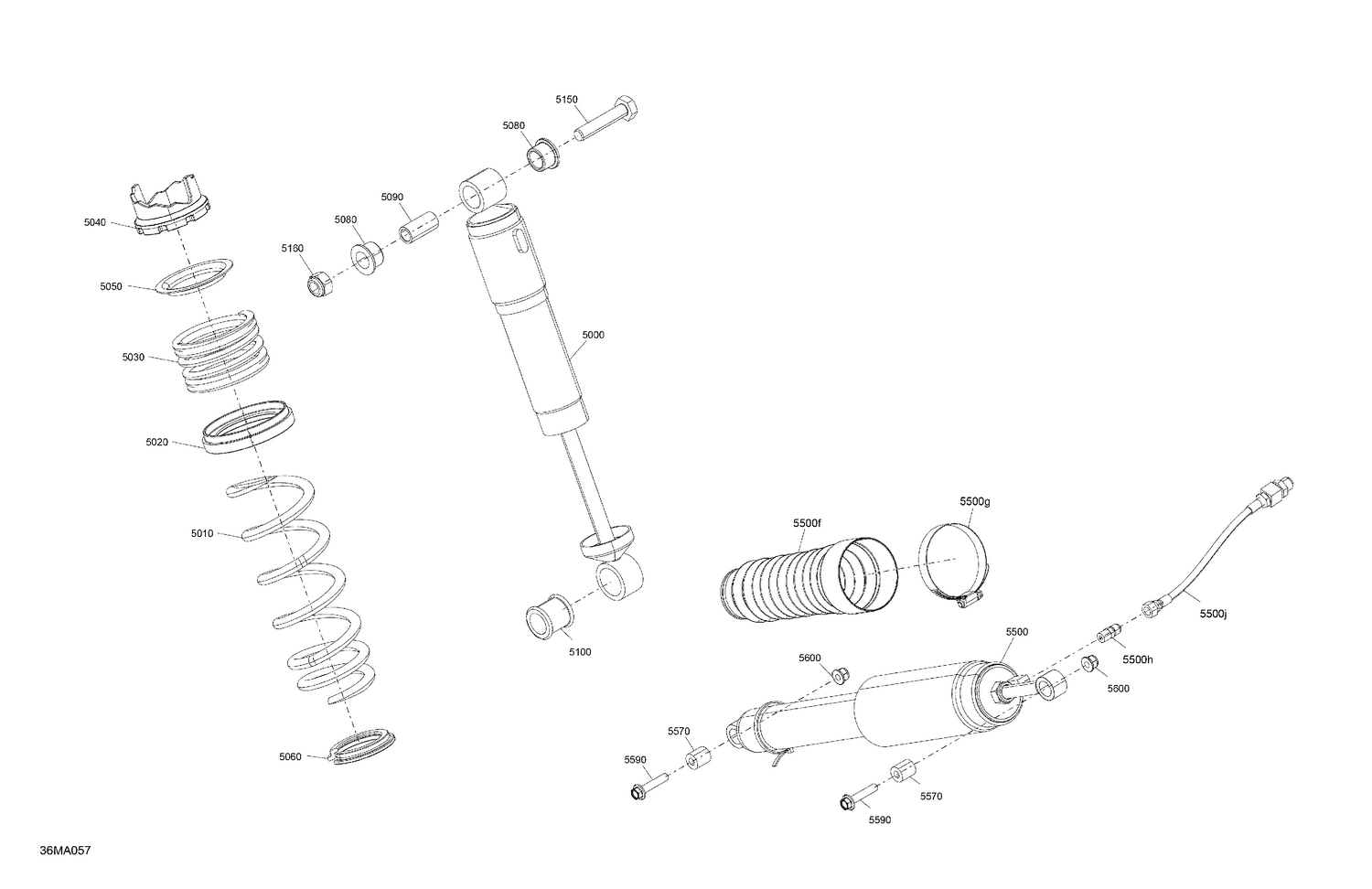

05- Suspension - Rear Shocks
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503192991 | Center Shock |
| 5010 | 503193160 | Deep Black, Spring (189mm) Long |
| 5020 | 503191281 | Spring Spacer |
| 5030 | 503193837 | Black, Spring (51mm) Short |
| 5040 | 505073625 | Adjustment Cam |
| 5050 | 503191872 | Spring Guide |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500f | 570278300 | Protection Boot |
| 5500g | 293650064 | Tridon Clamp |
| 5500h | 503191939 | Male Pneumatic Connector |
| 5500j | 503195148 | Pneumatic Hose Ass'y |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
