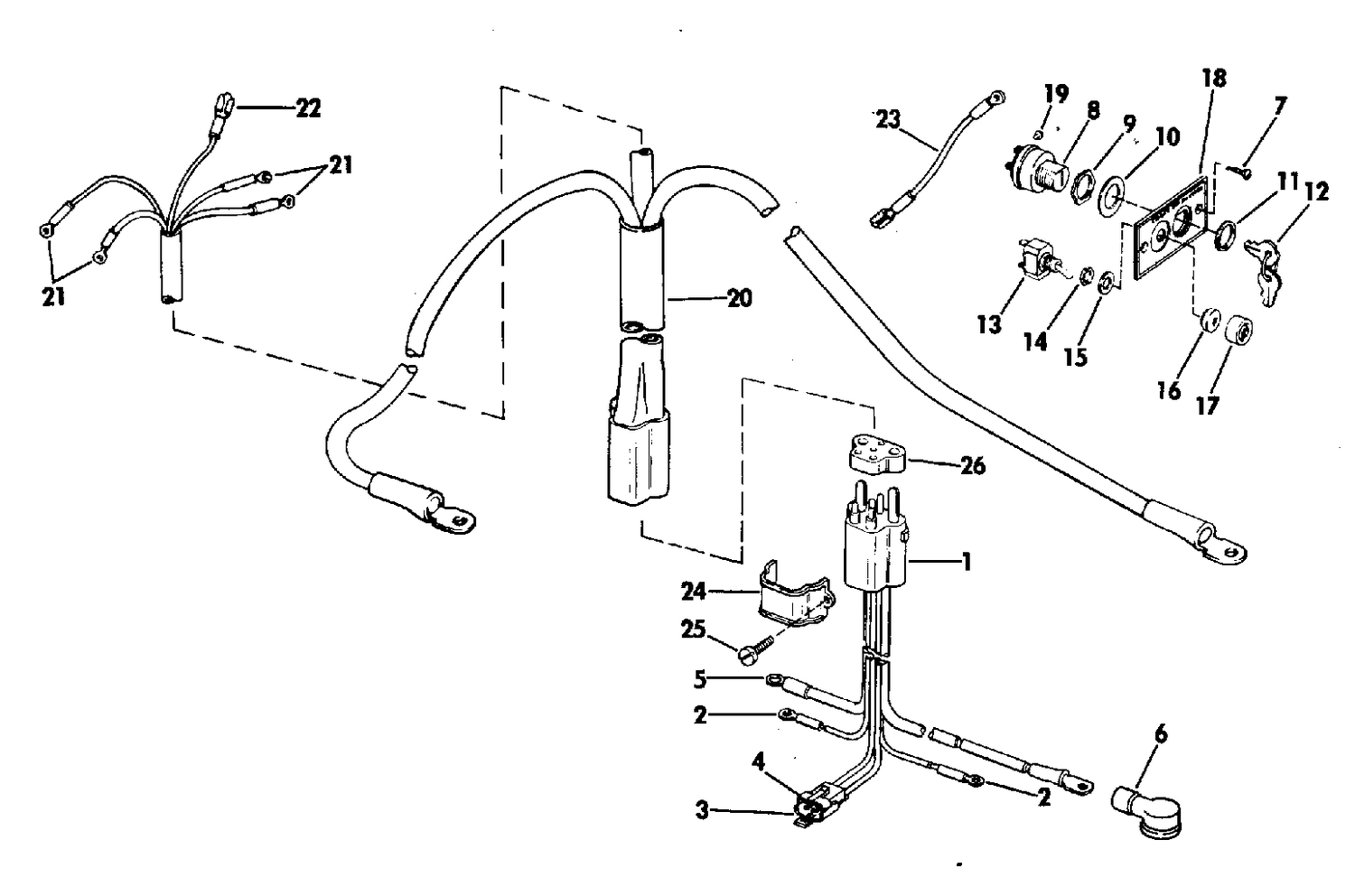

INSTRUMENT & CABLE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0385821 | CABLE ASSY., Motor |
| 7 | 0312691 | SCREW, Cash pannel |
| 8 | 0386947 | IGNITION SWITCH This part replaces 0384238. |
| 12 | KEY,Ignition | Ref: 13 0975257 SWITCH ASSEMBLLY 0975257 |
| 15 | 0900696 | WASHER |
| 20 | 0385231 | CABLE ASSY, Instrument |
| 23 | 0279177 | LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 24 | 0204468 | CLAMP, Cable to lower cover |
| 25 | 0310277 | SCREW, Clamp to lower cover |
| 0385159 | 0385159 | INISTRUMENTS & CABLE ASSY. |
