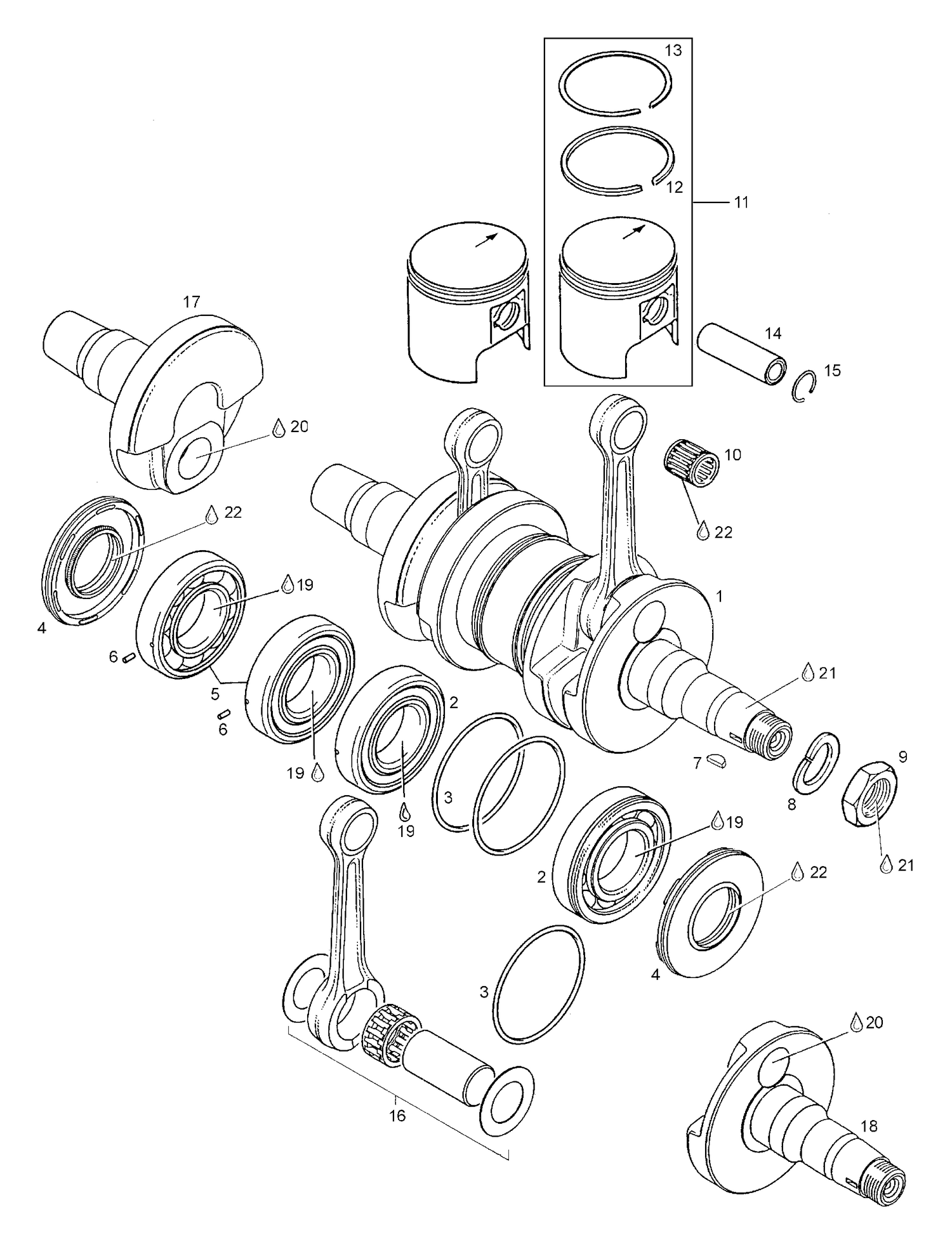

01- Crankshaft Assy

01- Crankshaft Assy

Parts (25)

RefPart NumberDescription
2 420832584 Bearing_Ball This part replaces 420832570.
3 293300022 O-Ring, 64 mm X 2 mm This part replaces 420250165.
4 420831952 Oil Seal This part replaces 420831950.
6 420929972 Drive Pin
7 420246055 Woodruff Key
8 420945759 Lock Washer
9 420842239 Hex. Nut, M22 X 1.5 This part replaces 420842230.
10 420832320 Cagel. needle bearing
11 420890070 Piston assy 71.92 mm This part replaces 420888175.
11 420890071 Piston assy 72.17 mm This part replaces 420888176.
11 420890072 Piston assy 72.42 mm This part replaces 420888177.
12 420915850 RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
12 420915851 RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
12 420915852 RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
13 420815200 SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership
13 420815201 SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership
13 420815202 SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership
14 420916186 GUDGEON PIN - Call your local BRP dealership
15 420945735 Lock ring
16 420994564 Repair kit
17 420818242 Crankhalf P.T.O side
18 420819020 CRANKSHAFT HALF MAG - Call your local BRP dealership This part replaces 420818269.
19 420297434 Loctite 76710, 50ml
20 420897341 Loctite 14486, 10cc
21 293800060 Loctite 243, 10 ml This part replaces 420899785.
