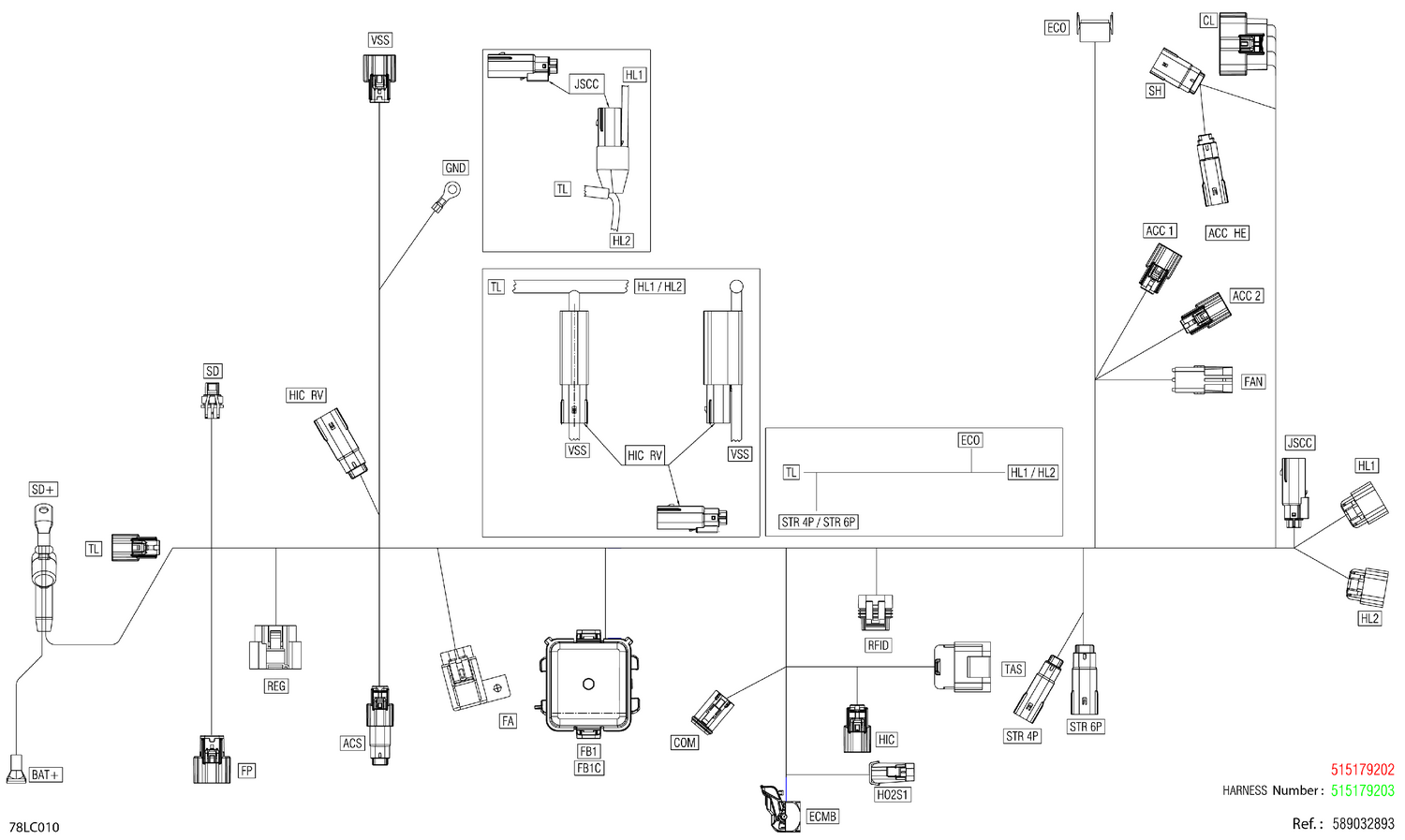

08- Electric - Main Harness - 515179202 - Model With Multigauge VIP Medium
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 515178014 | Female Terminal |
| ACC2 | 515178014 | Female Terminal |
| ACS | 278002860 | Sealing Cap |
| ACS | 278003866 | Housing 6 Circuits |
| ACS | 515178014 | Female Terminal |
| ACS | 515178018 | Female Terminal |
| ACS | 515178202 | Connector Coil |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 515178014 | Female Terminal |
| CL | 515178018 | Female Terminal |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing, 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| ECMB | 515178595 | Housing 56 Circuits |
| ECMB | 515178596 | Terminal |
| ECMB | 515178597 | Terminal |
| ECMB | 515178598 | Terminal |
| ECMB | 515178599 | Plug |
| ECMB | 515178601 | Cover |
| ECMB | 515178603 | Plate |
| ECMB | 515178604 | Plate |
| ECO | 515178302 | Female Terminal |
| FA | 278000805 | Cap Holder - Fuse |
| FA | 278001325 | Fuse Holder |
| FA | 278001326 | Fuse Holder Cap |
| FA | 710000357 | Female Terminal |
| FA | 710001613 | Fuse |
| FAN | 278000217 | Female Housing, 2 Circuits |
| FAN | 278000218 | Wire Seal |
| FAN | 409004300 | Male Terminal |
| FB1 | 278000218 | Wire Seal |
| FB1 | 278001065 | Wire Seal |
| FB1 | 278002578 | Female Terminal |
| FB1 | 278002880 | Seal Plug |
| FB1 | 278003448 | Fuse Base Ass'y |
| FB1 | 515179073 | Fuse Box Support |
| FB1 | 710000781 | Fuse Puller Tool |
| FB1 | 710000890 | Female Terminal |
| FB1 | 710000918 | Female Terminal |
| FB1C | 515179053 | Fuse Cover |
| FB1C | 710000744 | Little Fuse, 10 Ampere |
| FB1C | 710000745 | Little Fuse, 15 Ampere |
| FB1C | 710000746 | Little Fuse, 20 Ampere |
| FP | 515178018 | Female Terminal |
| FP | 515178474 | Female Housing |
| GND | 278001392 | Open Barrel Terminal |
| HIC | 278003535 | Female Housing, 4 circuits |
| HIC | 515178018 | Female Terminal |
| HL1 | 515178006 | Female Housing |
| HL1 | 710001228 | Terminal |
| HL1 | 710001332 | Seal Wire |
| HL2 | 515178006 | Female Housing |
| HL2 | 710001228 | Terminal |
| HL2 | 710001332 | Seal Wire |
| HO2S1 | 278001482 | Seal |
| HO2S1 | 515178661 | Lock |
| HO2S1 | 710000736 | Terminal |
| HO2S1 | 710000992 | Clip |
| HO2S1 | 710002466 | Housing |
| HO2S1 | 710002597 | Gold Terminal |
| REG | 710000879 | Female Housing, 3 Circuits |
| REG | 710000882 | Cap |
| REG | 710001932 | Seal |
| REG | 710001934 | Terminal |
| RFID | 710001119 | Female Terminal |
| SD | 515177192 | Female Housing, 2 Circuits |
| SD | 710000925 | Terminal |
| SD | 710001332 | Seal Wire |
| SH | 515178013 | Male Terminal |
| SH | 515178578 | Block 12 |
| TAS | 710000992 | Clip |
| TAS | 710001224 | Terminal |
| TAS | 710001231 | Housing |
| TAS | 710001233 | Seal |
| TL | 515178014 | Female Terminal |
| TL | 515178018 | Female Terminal |
| TL | 515178346 | Female Housing Connector 4 Pins W/O CPA |
| VSS | 515178954 | Housing |
| 3000 | 515179202 | Chassis Wiring Harness |
