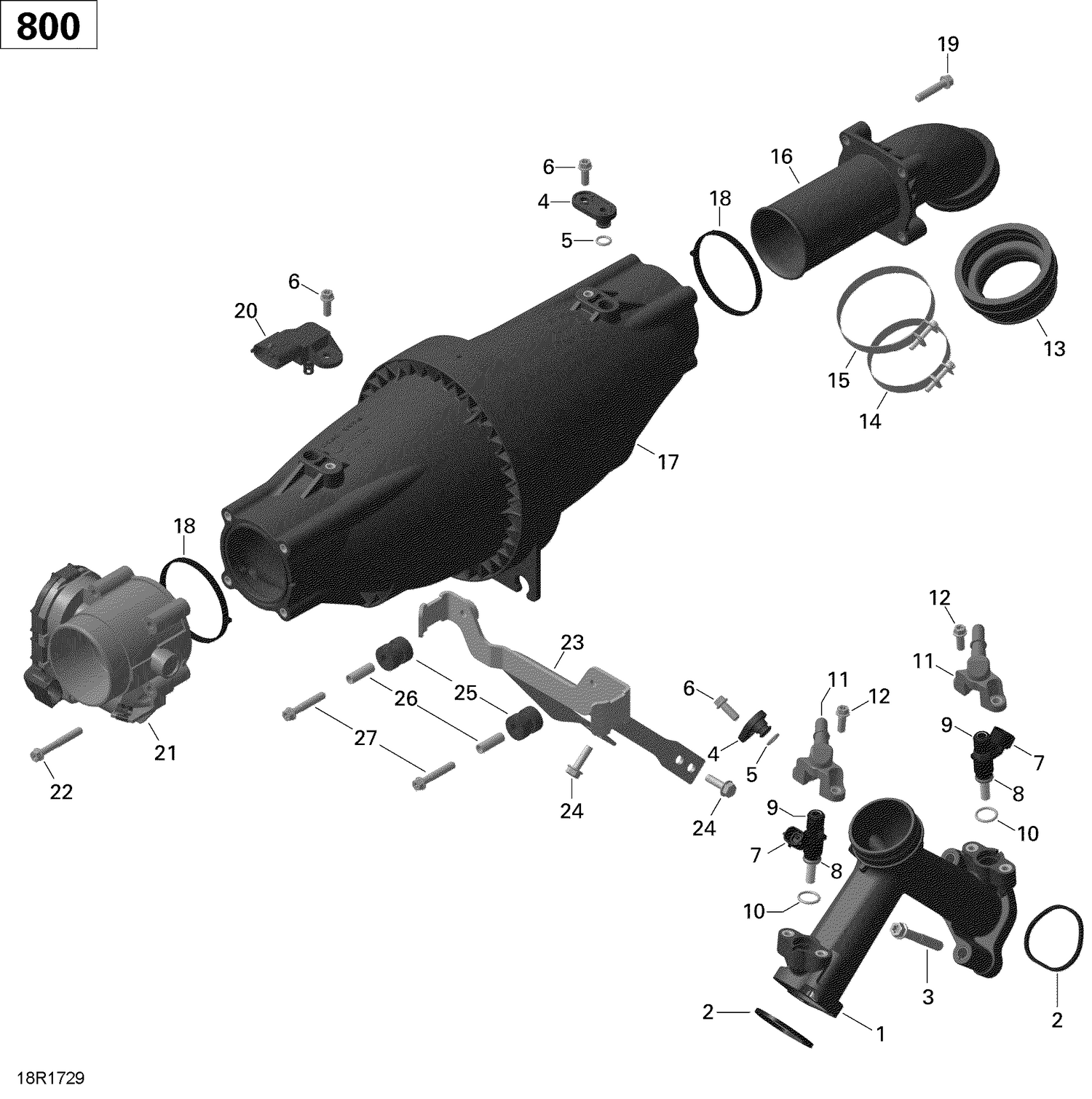

02- Air Intake Manifold and Throttle Body - 800R EFI
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667581 | Air Intake Manifold |
| 2 | 420630642 | Gasket |
| 3 | 420641213 | Torx Flange Screw M8 X 55 |
| 4 | 420460980 | Cover |
| 5 | 420230461 | O-Ring |
| 6 | 420440149 | Hex. Flange Screw M6 X 12 |
| 8 | 420431890 | O-Ring |
| 9 | 420631220 | O-Ring |
| 10 | 420631296 | O-Ring This part replaces 420631295. |
| 11 | 420874901 | Fuel Rail |
| 12 | 420641048 | Torx Flange Screw M6 X 16 |
| 13 | 420267045 | Intake Neck |
| 14 | 420251480 | Clamp |
| 15 | 420251209 | Clamp |
| 16 | 420667522 | Air Inlet Manifold |
| 18 | 420431900 | Gasket |
| 19 | 420241947 | Hex. Screw M6 X 30 |
| 20 | 707000995 | Pressure And Temperature Sensor |
| 21 | 420892596 | Throttle Body Socket Ass'y This part replaces 420892595. |
| 22 | 420641198 | Torx Flange Screw M6 X 45 |
| 23 | 420651521 | Support This part replaces 420651520. |
| 24 | 420441311 | Hex.Screw M6 X 20 |
| 25 | 420660090 | Rubber Bracket |
| 26 | 420847971 | Spacer |
