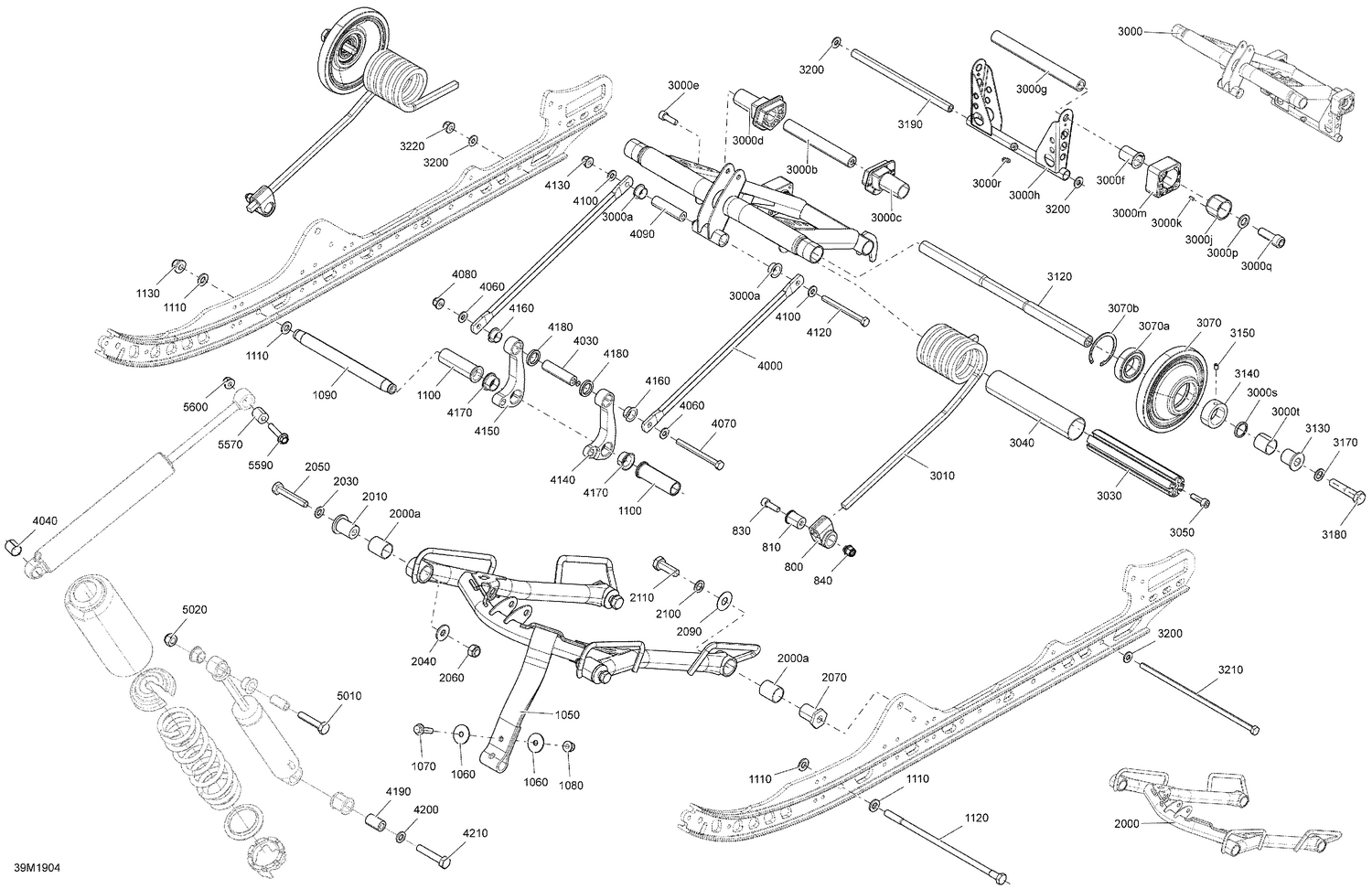

08- Rear Suspension - Sport - Upper Section
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 250000619 | Hex Screw M6 X 25 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503191260 | Axle Strap |
| 1010 | 503196943 | Spacer This part replaces 503192678. |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1050 | 503192360 | Stopper Strap |
| 1060 | 250200128 | Flat Washer 8 mm |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503191764 | Center Shaft |
| 1100 | 503191351 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 2000a | 503191554 | Bushing |
| 2010 | 503190698 | Axle |
| 2030 | 503192496 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2090 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000a | 503191555 | Swivel Bushing |
| 3000b | 503191178 | Spring Cam Axe |
| 3000c | 503191191 | LH Spring Cam |
| 3000d | 503191190 | RH Spring Cam |
| 3000e | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3000f | 503191640 | Cushion |
| 3000g | 503192330 | Lower Shaft |
| 3000h | 503191302 | Pivot Arm |
| 3000j | 503189488 | Block Guide |
| 3000k | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 3000m | 503192301 | LH Block, 4 Positions |
| 3000n | 503192300 | RH Block, 4 Positions |
| 3000p | 503189148 | Washer |
| 3000q | 205523554 | Socket Head Screw M12 X 35 |
| 3000r | 408200700 | Grease Fitting |
| 3000s | 503191774 | Washer |
| 3000t | 503191773 | Bushing |
| 3000u | 232061404 | Hexagonal Nut M6 |
| 3010 | 503191613 | Black LH Spring, Square |
| 3020 | 503191612 | Black RH Spring, Square |
| 3030 | 503191344 | Spring Axle |
| 3040 | 503191345 | Plastic Bushing |
| 3050 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3070a | 503191778 | Ball Bearing |
| 3070b | 415129598 | Retaining Ring |
| 3120 | 503191776 | Upper Shaft |
| 3130 | 503191775 | Bushing |
| 3140 | 503191782 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503192491 | Washer |
| 3180 | 250000485 | Hex. Cap Screw M12 X 60, Scotch Grip |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503191802 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4040 | 503191553 | Bushing |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 4140 | 503191890 | LH Rocker Arm |
| 4150 | 503191894 | RH Rocker Arm |
| 4160 | 503191555 | Swivel Bushing |
| 4170 | 503191552 | Bushing |
| 4180 | 503190694 | Plastic Spacer |
| 4190 | 503190604 | Central Shock Axle |
| 4200 | 503192496 | Washer |
| 4210 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
