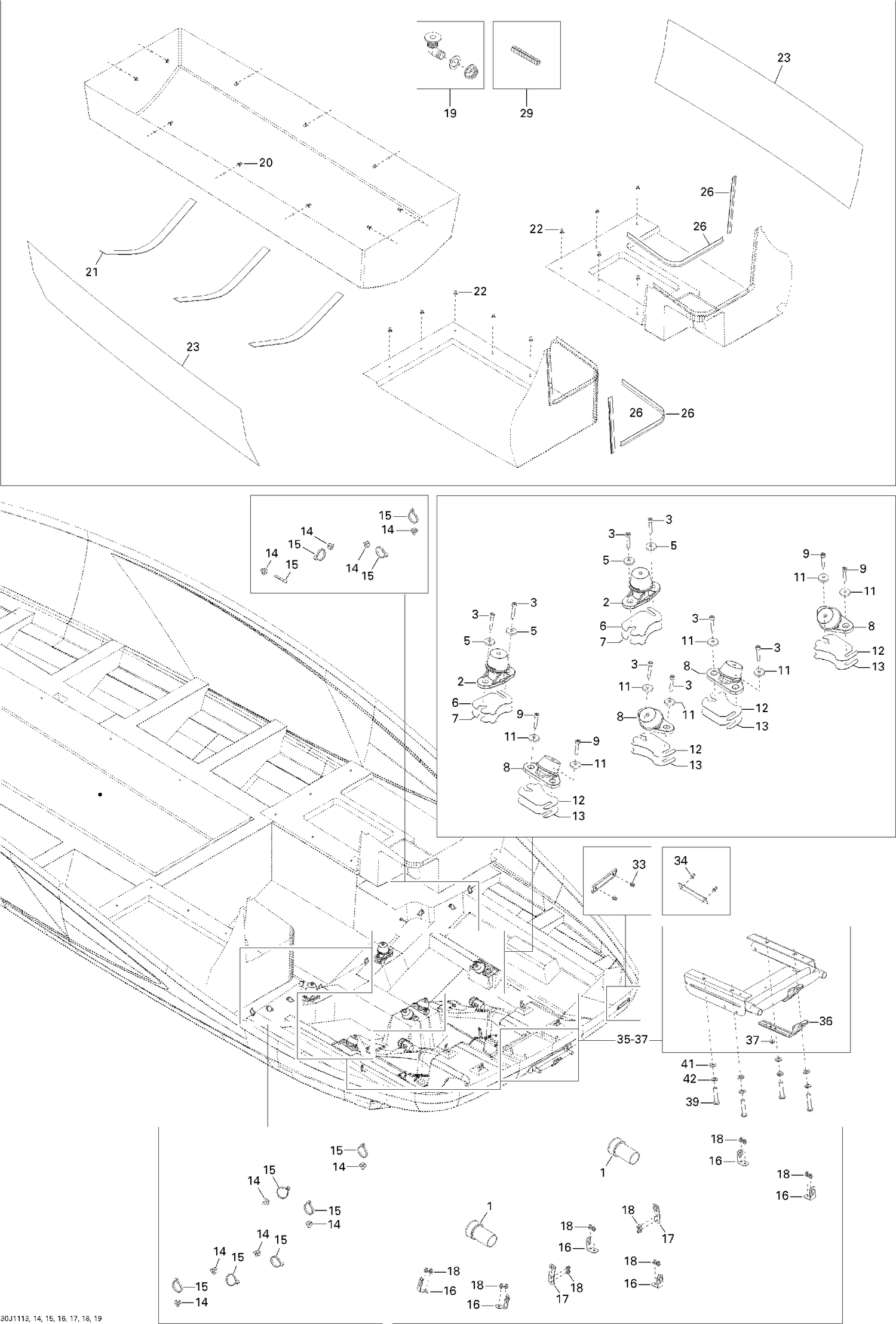

| Ref | Part Number | Description |
|---|
| 1 |
292000975 |
HULL INSERT, 41 MM - Call your local BRP dealership |
| 2 |
270001096 |
Engine Support Ass'y This part replaces 270000690. |
| 3 |
205084560 |
Socket Head Screw M8 X 45 |
| 5 |
250200018 |
Cone Washer |
| 6 |
0460868 |
NEEDS DESCRIPTION This part replaces 204250048. |
| 7 |
Not |
Available As Spare Part - Shim 1.3 mm |
| 8 |
270001081 |
Engine Support Ass'y This part replaces 270000688. |
| 9 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 11 |
250200018 |
Cone Washer |
| 12 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Shim 1.3 mm |
| 14 |
293730040 |
Mount Dart |
| 15 |
414115200 |
Tie-Rap 180 mm |
| 16 |
204060017 |
Strap Clip 90° |
| 17 |
293850030 |
Strap Clip |
| 18 |
293150037 |
Avdel Rivet 3/16" |
| 19 |
204071166 |
DRAIN FITTING 90 - Call your local BRP dealership |
| 20 |
293150065 |
RIVET - Call your local BRP dealership |
| 21 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 22 |
293150065 |
RIVET - Call your local BRP dealership |
| 23 |
204061140 |
STERN STORAGE CARPET - Call your local BRP dealership |
| 26 |
204130079 |
TRIM LOCK, METER - Call your local BRP dealership |
| 29 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 33 |
293150033 |
Pop Rivet 1/8'' |
| 34 |
293150037 |
Avdel Rivet 3/16" |
| 36 |
296000336 |
RUBBER LATCH - Call your local BRP dealership |
| 37 |
211100051 |
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership |
| 39 |
205405060 |
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 41 |
234001600 |
Flat Washer 10 mm, Stainless |
