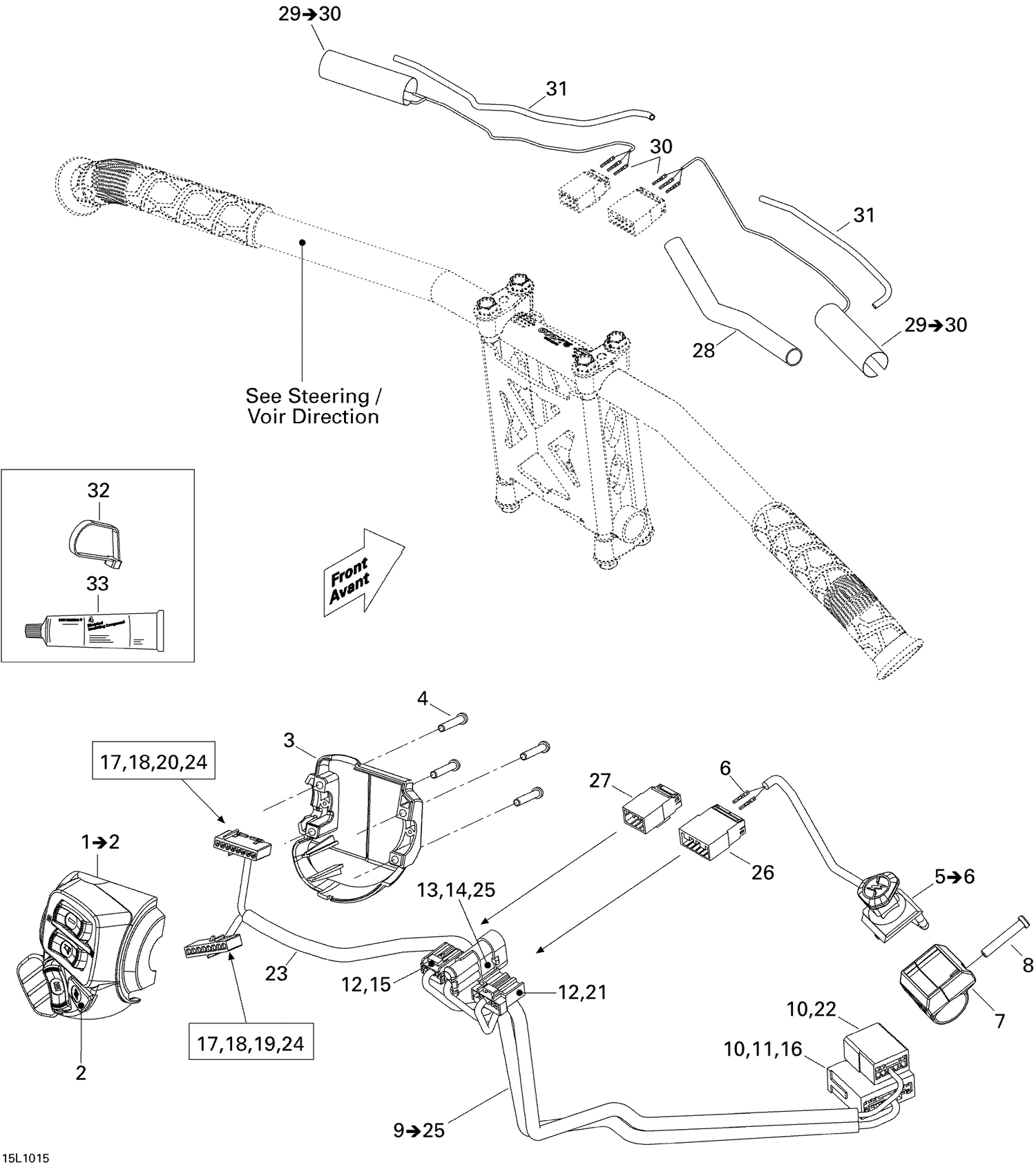

10- Steering Wiring Harness
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515176088 | Start/RER Button |
| 3 | 515175926 | Housing Switch Plate |
| 4 | 250000263 | Torx Screw #8-18 |
| 6 | 515175232 | Male Terminal |
| 7 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 8 | 250000263 | Torx Screw #8-18 |
| 10 | 515175232 | Male Terminal |
| 11 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 12 | 515175231 | Female Terminal |
| 13 | 710000568 | Male terminal housing |
| 14 | 278001013 | Wire Seal |
| 15 | 515175543 | Female Terminal Housing, 6 Circuits |
| 16 | 515175720 | MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 17 | 515175808 | FEMALE TERMINAL - Call your local BRP dealership |
| 18 | 515175809 | FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 19 | 515175807 | FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 20 | 515175810 | FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 21 | 515175819 | Female Terminal Housing, 8 Circuits |
| 22 | 515175662 | Male Terminal Housing, 6 Circuits |
| 23 | 515175830 | Low Temperature Tubing 1/2” |
| 24 | 515175941 | Female Terminal |
| 25 | 515176164 | Male Terminal |
| 26 | 515175846 | Male Terminal Housing, 4 Circuits |
| 27 | 515175662 | Male Terminal Housing, 6 Circuits |
| 28 | 515175830 | Low Temperature Tubing 1/2” |
| 30 | 515175232 | Male Terminal |
| 31 | 515175332 | Vinyl Tubing, Low Temperature |
| 32 | 293750001 | Tie-Rap 94 mm |
| 32 | 293750008 | Tie-Rap 368 mm |
