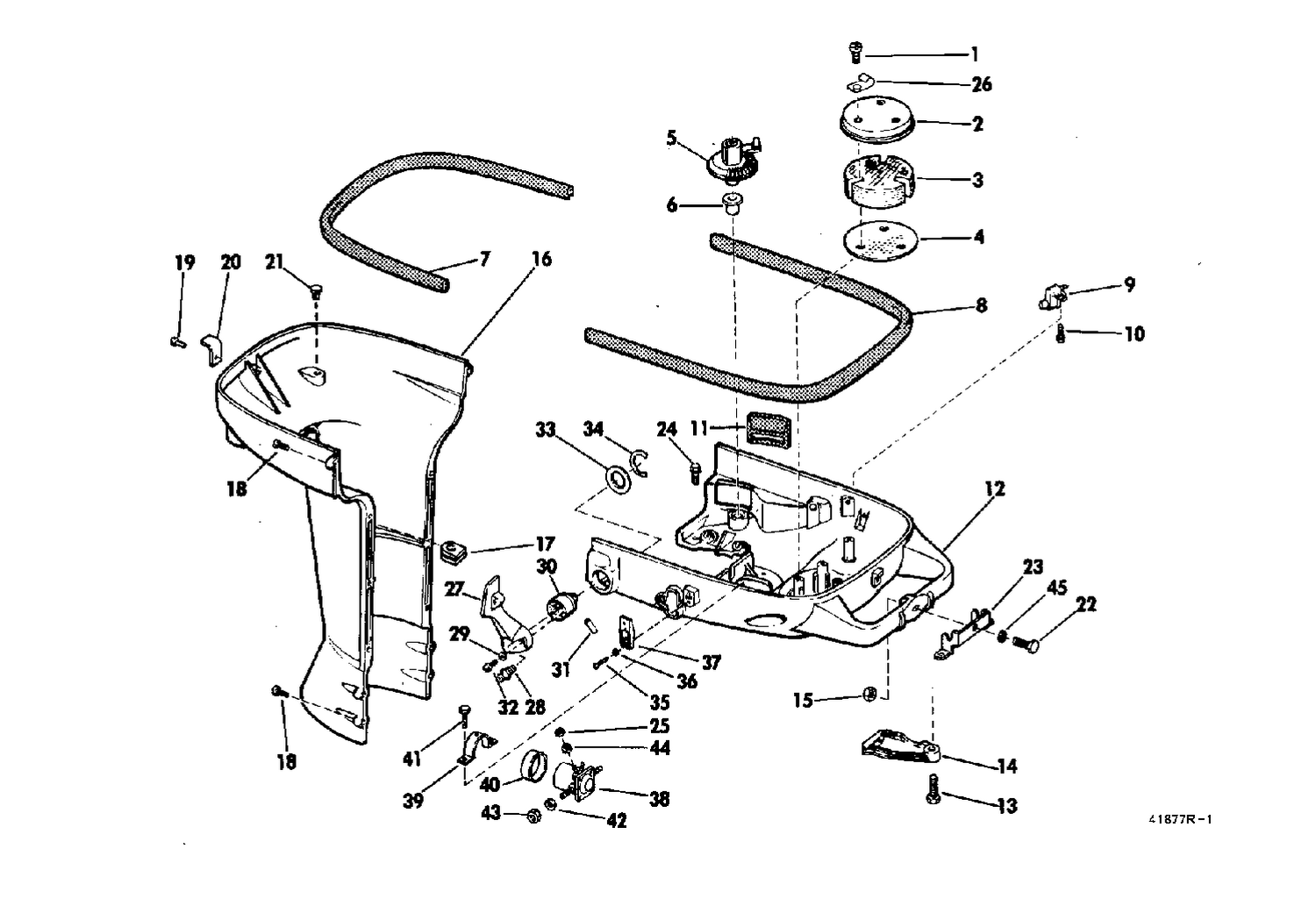

| Ref | Part Number | Description |
|---|
| 1 |
0552062 |
SCREW, Clamp |
| 2 |
0305376 |
COVER, Silencer |
| 3 |
0305375 |
PAD, Silencer |
| 4 |
0305377 |
PLATE, Silencer |
| 5 |
0305387 |
GEAR, Throttle control |
| 6 |
0305378 |
BUSHING, Control gear |
| 7 |
0313173 |
SEAL, Motor cover This part replaces 0313178. |
| 8 |
0313173 |
SEAL, Motor cover This part replaces 0313177. |
| 9 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 10 |
0313117 |
SCR,Clamp,eng cable |
| 11 |
0305673 |
GROMMET, Control arm |
| 12 |
0382989 |
COVER & PIN, Motor, lower front |
| 13 |
0324579 |
SCREW This part replaces 0312709. |
| 14 |
0314448 |
CLAMP |
| 16 |
0380891 |
EXHAUST COVER & GROMMET ASSY., Rear |
| 17 |
0309205 |
GROMMET EXHAUST COVER |
| 18 |
0305745 |
SCR., Lwr. mtr. cover frt. and rear |
| 19 |
0307113 |
SCREW, Hook to cover |
| 20 |
0307290 |
HOOK, Cover to housing |
| 21 |
0306656 |
PLUG, Cover rear |
| 22 |
0306427 |
BOLT |
| 24 |
0328731 |
VIS, câble de verrouillage This part replaces 0307055. |
| 26 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 27 |
0278282 |
SHIFT LEVER & ASSY |
| 30 |
0308675 |
CONNECTOR, Shift |
| 31 |
0306277 |
DRIVE PIN, Connector |
| 32 |
0306446 |
SCREW, Coupling to adapter |
| 33 |
0305575 |
THRUST WASHER, Universal |
| 34 |
0305582 |
RETAINER, Connector |
| 35 |
0302416 |
SCREW , Shift lock |
| 37 |
0306212 |
LOCK, Shift |
| 39 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 40 |
0311217 |
MANCHON, solénoïde |
| 41 |
0552062 |
SCREW, Clamp |
| 0377637 |
0377637 |
REMOTE CONROL ADAPTOR KIT |
