Home / BRP / EVINRUDE / 1993 / 175 / 07- Front Suspension And Ski Formula SS

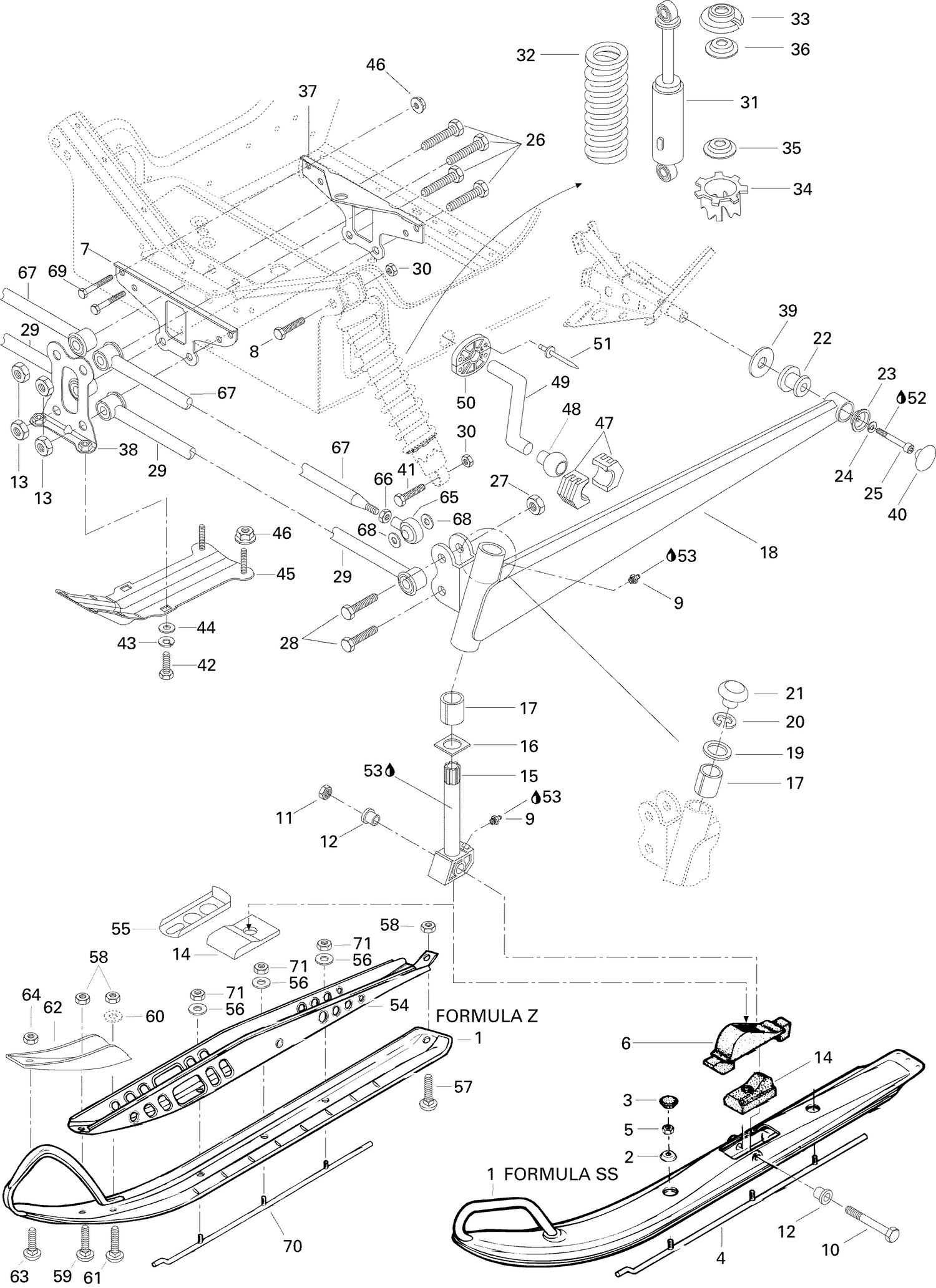

07- Front Suspension And Ski Formula SS

07- Front Suspension And Ski Formula SS

Parts (72)

RefPart NumberDescription
1 505064500 Ski (Welded)
2 505015800 Skullcap
3 414559200 Cap Plug
4 505064200 Runner (5 Carbide)
4 505066520 Kit with 2 Runners (8 Carbide) (Inc. 5)
5 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
6 570022200 Ski Protector
7 517254800 Front Link Plate
8 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065.
9 408200700 Grease Fitting
10 222029065 Hex. Screw M12 x 90
11 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
12 414530600 CUSHION - Call your local BRP dealership
13 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
14 570053100 Ski Stopper
15 506130900 Ski Leg
16 506081200 Wear Plate
17 572069900 Cushion
18 506131010 RH Swing Arm
18 506131110 LH Swing Arm
19 506080900 Thrust Washer
20 371910400 CIRCLIP - Call your local BRP dealership
21 572079100 CAP - Call your local BRP dealership
22 570062200 DAMPER - Call your local BRP dealership
23 705007171 Cup This part replaces 506115800.
24 234181401 Lock Washer 8 mm This part replaces 224781140.
25 205082544 Socket Head Screw M8 X 25 This part replaces 222982565.
26 222029065 Hex. Screw M12 x 90
27 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
28 222025075 Hex. Screw M12 x 50
29 580643800 Arm Ass'y
30 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
31 414973900 Front Shock
32 414976100 Spring (Red)
33 706200881 Spring Stopper This part replaces 503140600.
34 503169000 Cam
35 503165100 GUIDE_SPRING - Call your local BRP dealership
36 706200785 Cap This part replaces 503141600.
37 517254900 Rear Link Plate
38 506122900 Link Plate
39 503146700 WASHER - Call your local BRP dealership
40 572045900 CAP - Call your local BRP dealership
41 207005544 Hex. Screw M10 X 55 This part replaces 222005565.
42 207182044 Hex. Screw M8 X 20 This part replaces 222082065.
43 234181401 Lock Washer 8 mm This part replaces 224781140.
44 234081410 Flat Washer 8 mm This part replaces 224081171.
45 506123000 Link Plate
46 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045.
47 572069800 Block Sliding
48 503142200 Ball Joint
49 506131800 Stabilisator
50 572029900 Half-Bushing
51 390402300 Pop Rivet 3/16"
52 293800060 Loctite 243, 10 ml This part replaces 413703000.
53 413706100 LITHIUM GREASE, 400 GR - Call your local BRP dealership
54 XXX Not Available As Spare Parts
55 XXX Not Available As Spare Parts
56 XXX Not Available As Spare Parts
57 XXX Not Available As Spare Parts
58 XXX Not Available As Spare Parts
59 XXX Not Available As Spare Parts
60 XXX Not Available As Spare Parts
61 XXX Not Available As Spare Parts
62 XXX Not Available As Spare Parts
63 XXX Not Available As Spare Parts
64 XXX Not Available As Spare Parts
65 414976400 RH BJoint
66 232170411 Hex. Jam Nut M14 This part replaces 228371042.
67 580638900 Arm Ass’y
68 234021410 Flat Washer 12 mm This part replaces 224021251.
69 207065544 Hex. Screw M6 X 55 This part replaces 222065565.
70 XXX Not Available As Spare Parts
