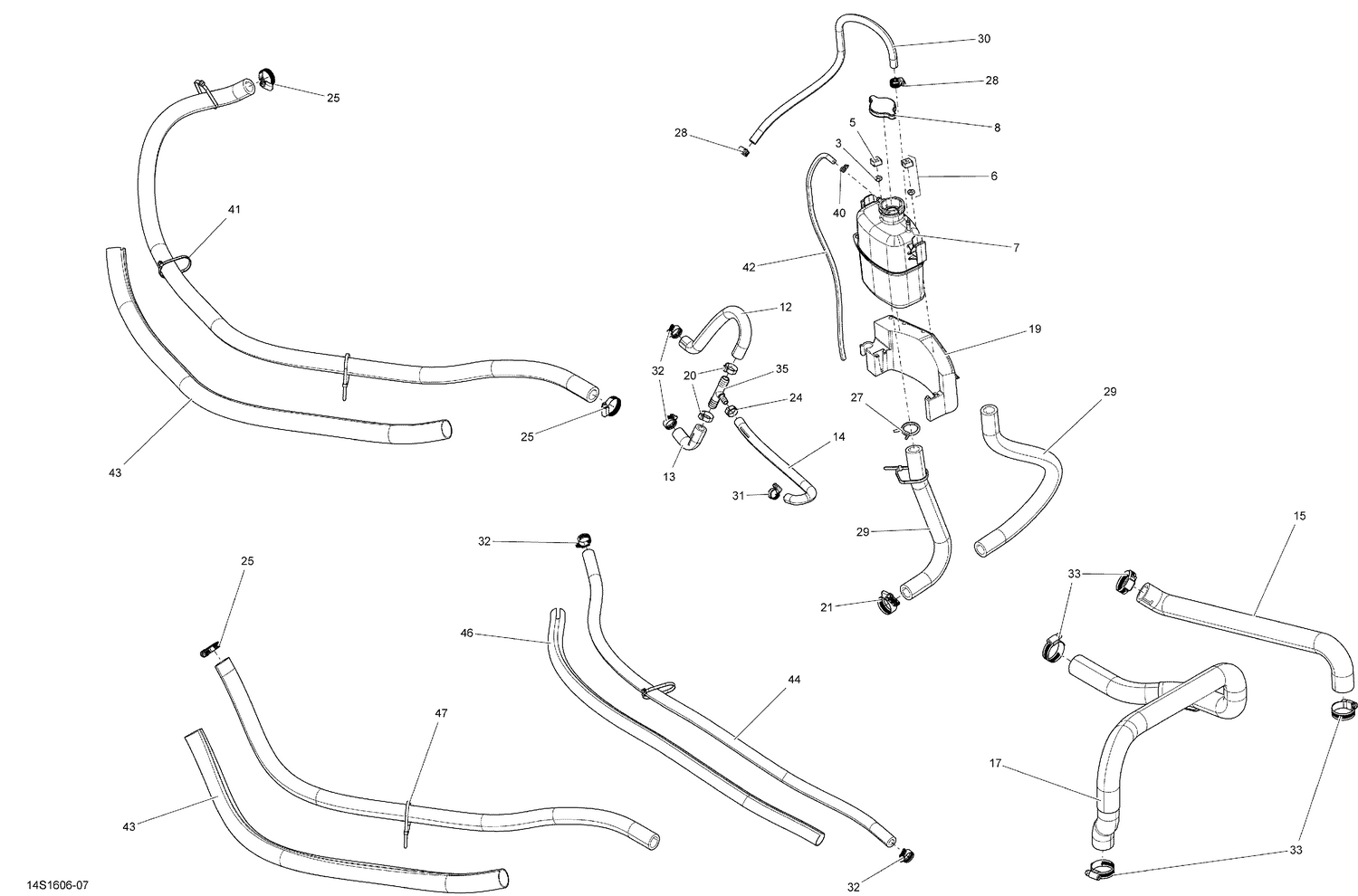

01- Cooling System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 269500252 | M6 Nut Housing Ass'y |
| 6 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 7 | 276000086 | Coolant Tank |
| 8 | 276000100 | Pressure Cap |
| 12 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 13 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 14 | 276000246 | Formed Hose |
| 15 | 276000248 | RH Radiator Hose |
| 17 | 276000355 | Hose-Left |
| 19 | 291003082 | SUPPORT ASS'Y - Call your local BRP dealership |
| 20 | 293650012 | Oetiker Clamp |
| 21 | 293650019 | Tridon Gear Clamp |
| 24 | 293650030 | Oetiker Clamp |
| 25 | 293650051 | Tridon Gear Clamp |
| 27 | 293650115 | Spring Clamp |
| 28 | 293650170 | Tridon Gear Clamp |
| 29 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 30 | 219704362 | Was 276000394 Hose 6.4 mm |
| 31 | 293650171 | Tridon Gear Clamp |
| 32 | 293650172 | Tridon Gear Clamp |
| 33 | 293650185 | Tridon Gear Clamp |
| 35 | 293710116 | T-Fitting |
| 40 | 293750001 | Tie Wrap 94 mm |
| 41 | 293750008 | Tie Wrap 368 mm |
| 42 | 219704410 | Polyurethane Hose 10000Mm Long |
| 43 | 219704402 | Tubing 25 MM 1000MM Long |
| 44 | 219704394 | Was 276000001 Hose 12.5 mm |
| 46 | 219704423 | Was 515175319 Tubing 22 mm |
