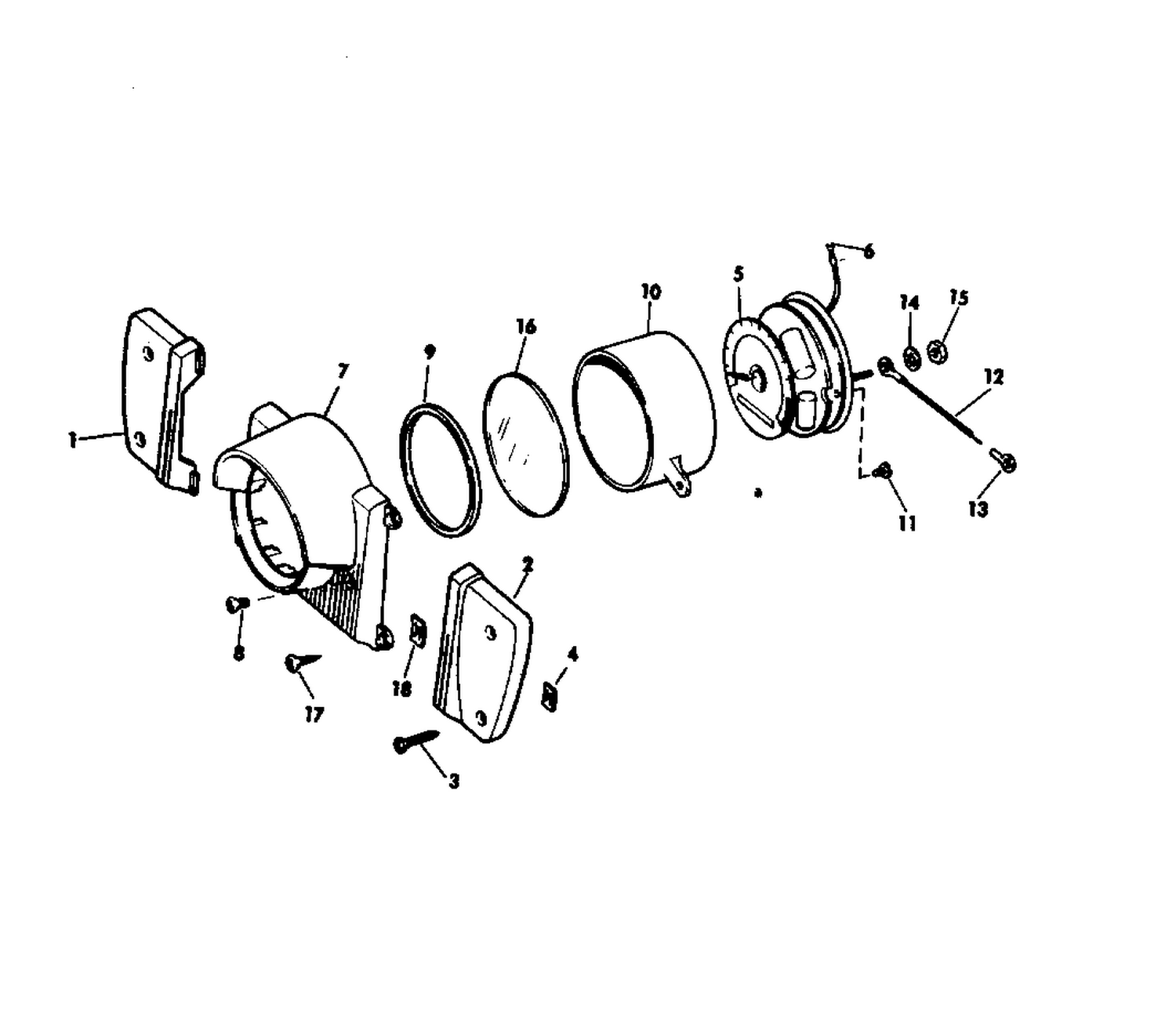

TACHOMETER,PANEL AND END PLATE KIT PART NO 171787
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0901624 | END PANEL,Port |
| 2 | 0901625 | END PANEL,Short |
| 3 | 0901626 | SCREW,End panel |
| 4 | 0901627 | SPEED NUT |
| 5 | 0172045 | TACHOMETER |
| 7 | 0902123 | BEZEL,Tachometer |
| 8 | 0902122 | SCREW,Case to bezel |
| 9 | 0121356 | SEAL,Lens |
| 10 | 0171747 | CASE ASSEMBLLY |
| 11 | 0121354 | MOUNTING SCREW, Instrument |
| 12 | 0171745 | GROUND WIRE ASSEMBLY |
| 14 | 0304642 | LOCKWASHER |
| 16 | 0121357 | LENS,Tachometer |
| 17 | 0901146 | SCREW,Dash panel |
| 0171835 | 0171835 | TACHOMETER & PANEL ASSEMBLY |
