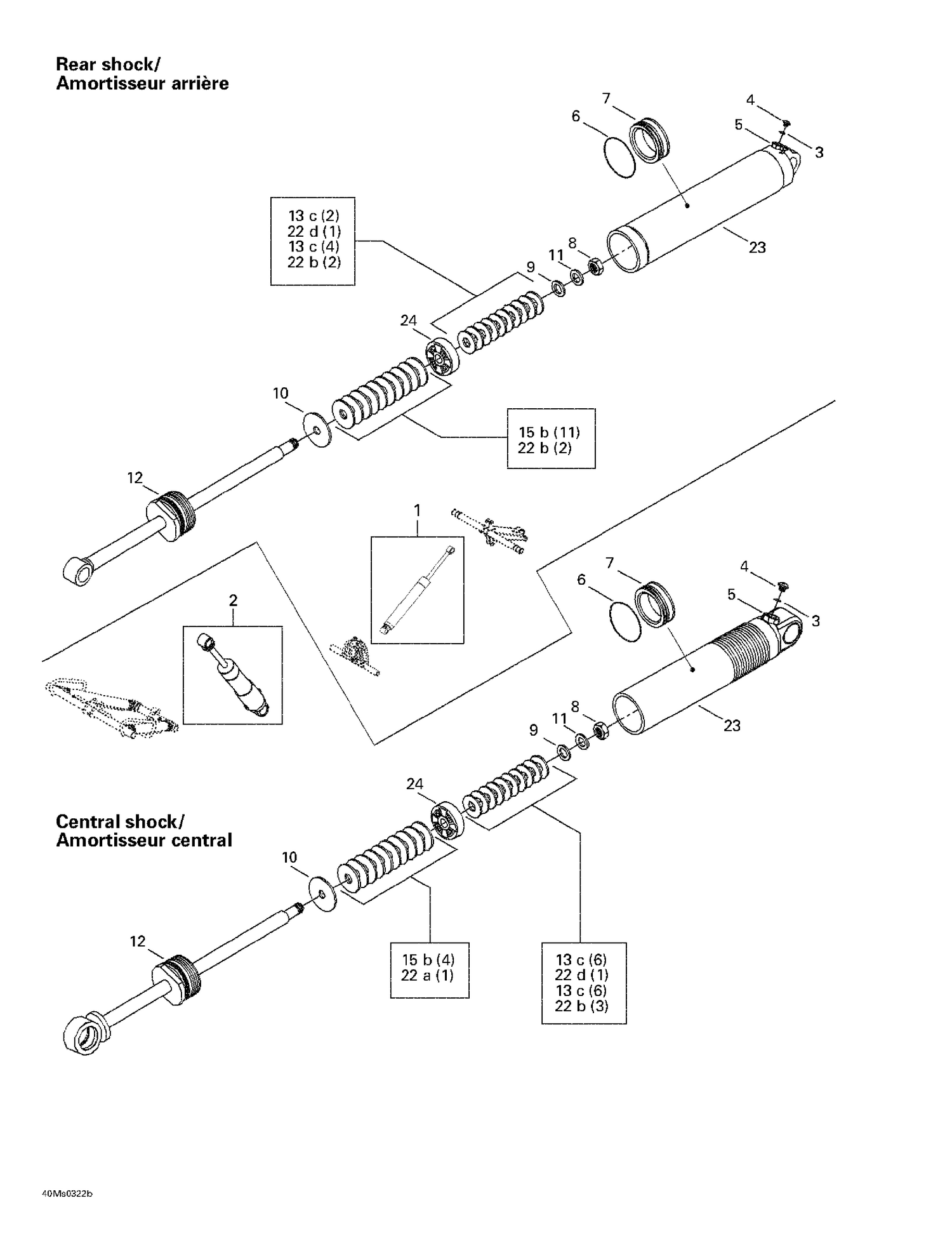

| Ref | Part Number | Description |
|---|
| 1 |
503190024 |
Rear shock |
| 2 |
503190017 |
Center shock |
| 3 |
505070400 |
O-Ring |
| 4 |
505070399 |
Screw |
| 5 |
505070398 |
Air Valve |
| 6 |
414888312 |
O-Ring |
| 7 |
415097900 |
Free Piston |
| 8 |
Not |
Available As Spare Part - Nut |
| 9 |
Not |
Available As Spare Part - Valve stopper |
| 10 |
Not |
Available As Spare Part - Valve stopper |
| 11 |
Not |
Available As Spare Part - Washer |
| 12 |
Not |
Available As Spare Part - Piston rod ass'y |
| 13A |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 13B |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 13C |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 14A |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 14B |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 15A |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 15C |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 16A |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 16B |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 16B |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 17A |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 17B |
Not |
Available As Spare Part - (C36) Leaf Valve Ø21 x 0.203 |
| 18A |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 18B |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 18C |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 19A |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 19B |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 20A |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 20B |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 20C |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 20D |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 21A |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 21B |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 21C |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 21D |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 22A |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 22B |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 22C |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 22D |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 23 |
Not |
Available As Spare Part - Body cylinder |
