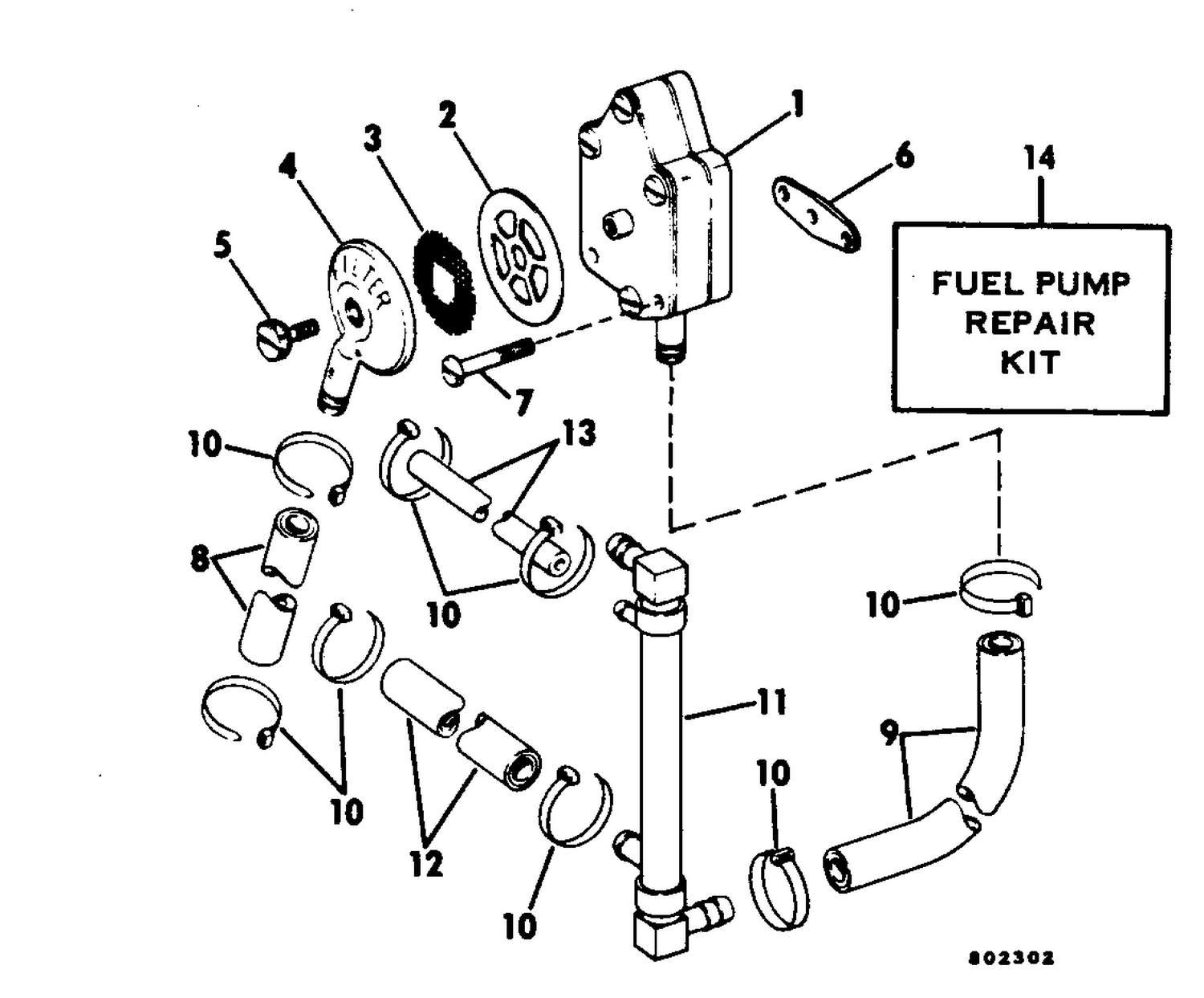

FUEL PUMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0388268. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 | 0322759 | CAP, Filter |
| 6 | 0303615 | GASKET |
| 8 | HOSE, | Conn. to pump |
| 9 | 0333407 | FLEXIBLE, filtre à carburant vers pompe à carburant This part replaces 0326597. |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0390465 | FUEL MANIFOLD ASSY. |
| 13 | HOSE, | Manifold to primer |
