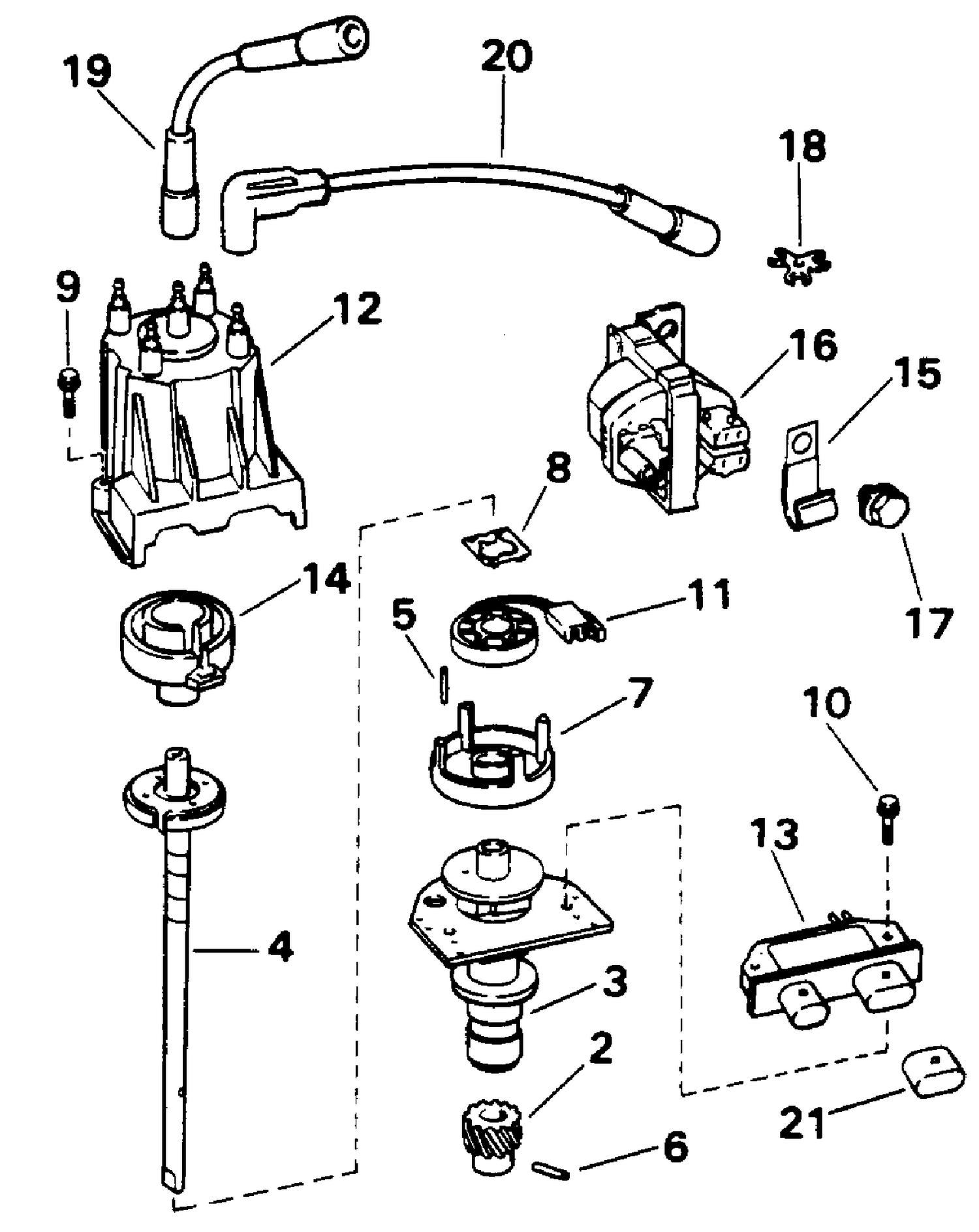

DISTRIBUTOR & IGNITION COIL
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 3854263 | GEAR |
| 3 | 3854264 | HOUSING |
| 4 | 3854265 | SHAFT |
| 5 | 3853316 | PIN, Locating |
| 6 | 3854266 | PIN, Gear |
| 7 | 3854267 | POLE PIECE |
| 8 | 3853317 | RETAINER |
| 9 | 3853318 | SCREW, Cap |
| 10 | 3853319 | SCREW, Module |
| 11 | 3854001 | COIL, Pickup |
| 12 | 3854260 | DISTRIBUTOR CAP |
| 13 | 3854003 | MODULE |
| 14 | 3854261 | ROTOR |
| 16 | 3854002 | IGNITION COIL |
| 17 | 3853325 | SCREW, Clamp to engine |
| 18 | 3852492 | RETAINER, 3 wire |
| 19 | 3853984 | LEAD, Distributor to coil |
| 20 | 3853985 | LEAD, Spark plug, #1 & #2 |
| 20 | 3853986 | LEAD, Spark plug, #3 |
| 20 | 3853987 | LEAD, Spark plug, #4 |
