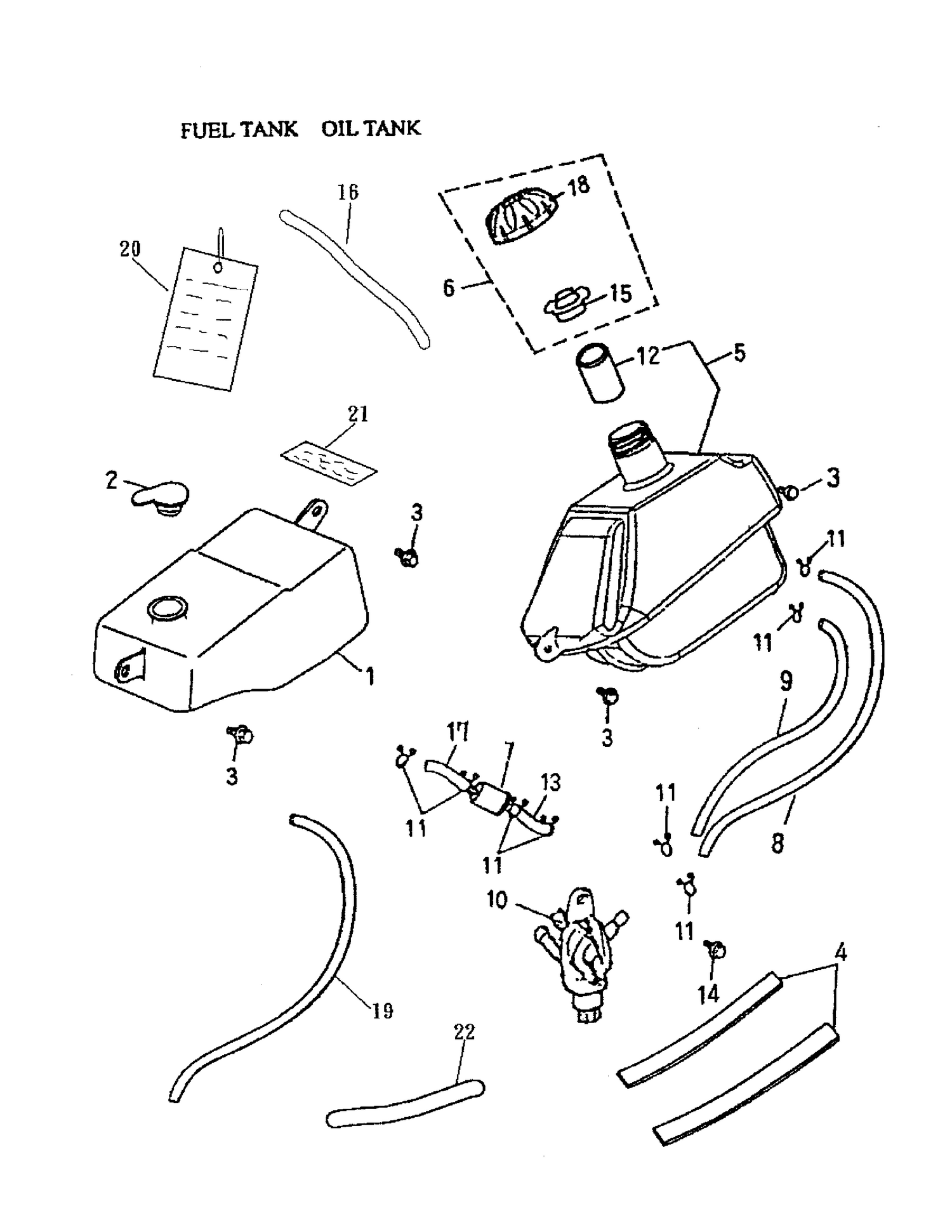

02- Fuel Tank, Oil Tank
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A55100145000 | Oil Tank |
| 2 | A55105145000 | Oil Tank Cap |
| 3 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 4 | A1750514500A | SPONGE PAD - Call your local BRP dealership |
| 5 | A17500166000 | FUEL TANK COMP - Call your local BRP dealership |
| 6 | A1762014500A | FUEL TANK CAP ASSY. - Call your local BRP dealership |
| 7 | A16952145000 | PETROL FILTER - Call your local BRP dealership |
| 8 | A944000408300 | FUEL TUBE - Call your local BRP dealership |
| 9 | A944000408280 | FUEL TUBE - Call your local BRP dealership |
| 10 | A16950145000 | Fuel Cup |
| 11 | A9451008000 | Clip |
| 12 | A17633145000 | FUEL TANK TUBE - Call your local BRP dealership |
| 13 | A944000408160 | OIL TUBE - Call your local BRP dealership |
| 14 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
| 15 | A17631145000 | Fuel Tank Cap Gasket |
| 16 | A944000408355 | BREATHER HOSE - Call your local BRP dealership |
| 17 | A944000408075 | TUBE - Call your local BRP dealership |
| 18 | A1762114500A | FUEL TANK CAP BODY - Call your local BRP dealership |
| 19 | A944021617190 | TUBE COVER - Call your local BRP dealership |
| 20 | 704900301 | Warning Tag, Mini Ds |
| 21 | A87723116000 | Decal Warning Battery |
