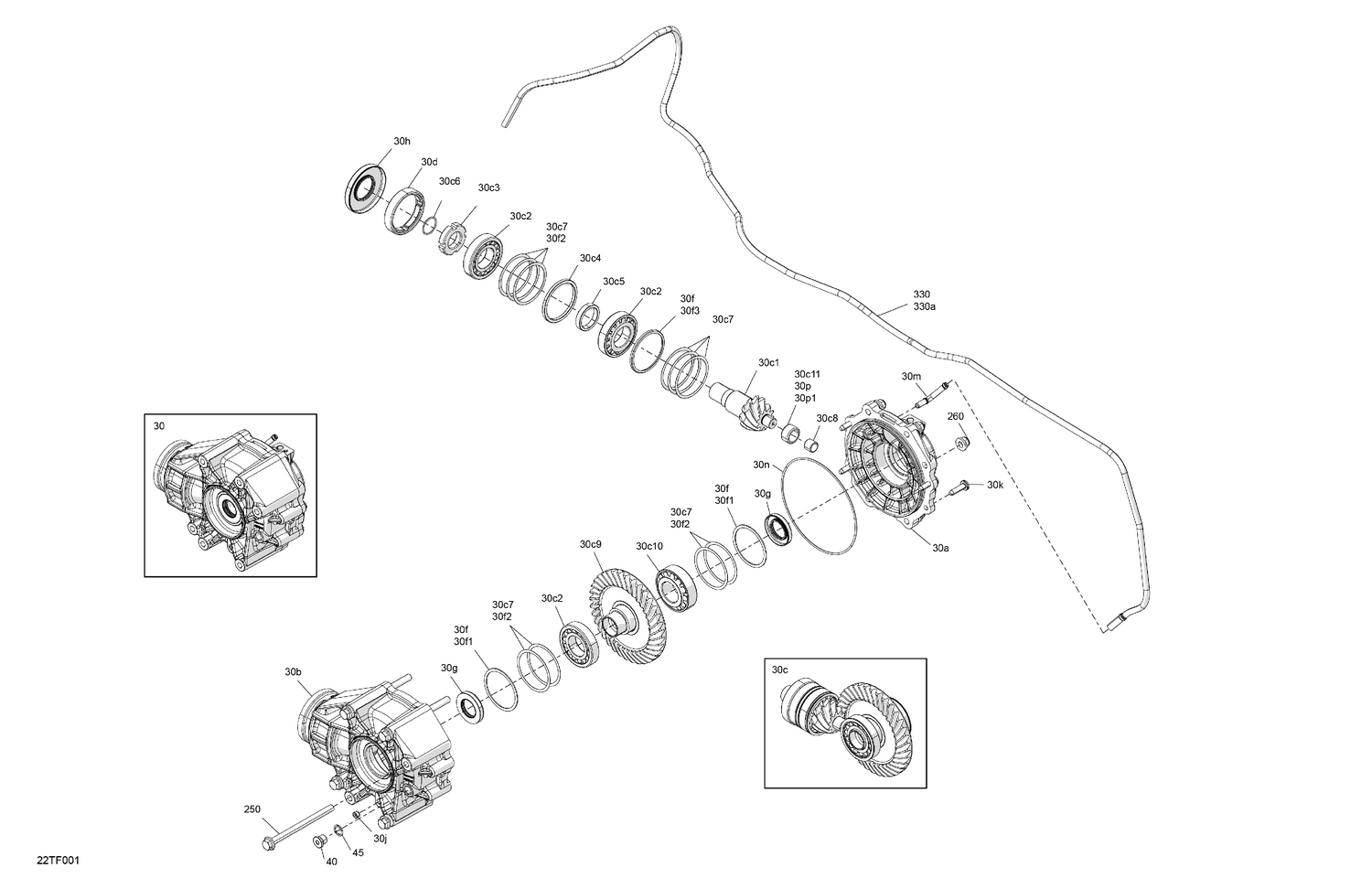

04- Drive - Final Drive Unit
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502547 | Rear Cover |
| 30b | 705502180 | Rear Pinion Cover |
| 30c1 | 705502091 | Gear 10 Tooth |
| 30c10 | 705502173 | Roller Bearing |
| 30c11 | 705501760 | Needle Bearing |
| 30c2 | 705502174 | Roller Bearing |
| 30c3 | 705501550 | Nut |
| 30c4 | 705501552 | Differential Shim |
| 30c5 | 705501553 | Differential Shim |
| 30c6 | 705501554 | O-Ring |
| 30c7 | 705501725 | Differential Shim |
| 30c8 | 705502181 | Inner Ring |
| 30c9 | 705502092 | Pinion 36 Teeth |
| 30d | 705501549 | Nut |
| 30f1 | 705501555 | Differential Shim |
| 30f2 | 705501725 | Differential Shim |
| 30f3 | 705501586 | Differential Shim |
| 30g | 705501556 | Oil Seal |
| 30h | 705501557 | Oil Seal |
| 30j | 705501724 | Plug Drain |
| 30k | 705502063 | Screw |
| 30m | 705501584 | Breather Tube |
| 30n | 705501711 | O-Ring |
| 30p1 | 705501760 | Needle Bearing |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
